V2 Parallel Charge Board: Simultaneously Charge 4 Sets of 2-8S Lithium Batteries with 35A Current

This V2 Parallel Charge Board is designed for enthusiasts and professionals who use multiple lithium battery packs, such as in radio-controlled vehicles, drones, or other hobbyist applications. It allows you to charge up to four sets of 2-8S batteries at the same time, streamlining your charging process. By connecting batteries in parallel, the board reduces the need for repeated battery swaps on your charger, saving you considerable time. For instance, charging four sets individually typically requires four balance cycles, but with this board, only one balance cycle is needed, effectively shortening the total charging duration. The board supports capacity superposition, meaning two 4S 5000mAh batteries become one 4S 10000mAh battery when connected, enabling higher charge rates safely.

Features and Build Quality of the Parallel Charging Board

This section details the specific components and construction that ensure reliable performance. We'll cover the design elements that support high-current charging, the technical specifications for safe operation, and the quality features that enhance durability.

Design and Connectivity Features

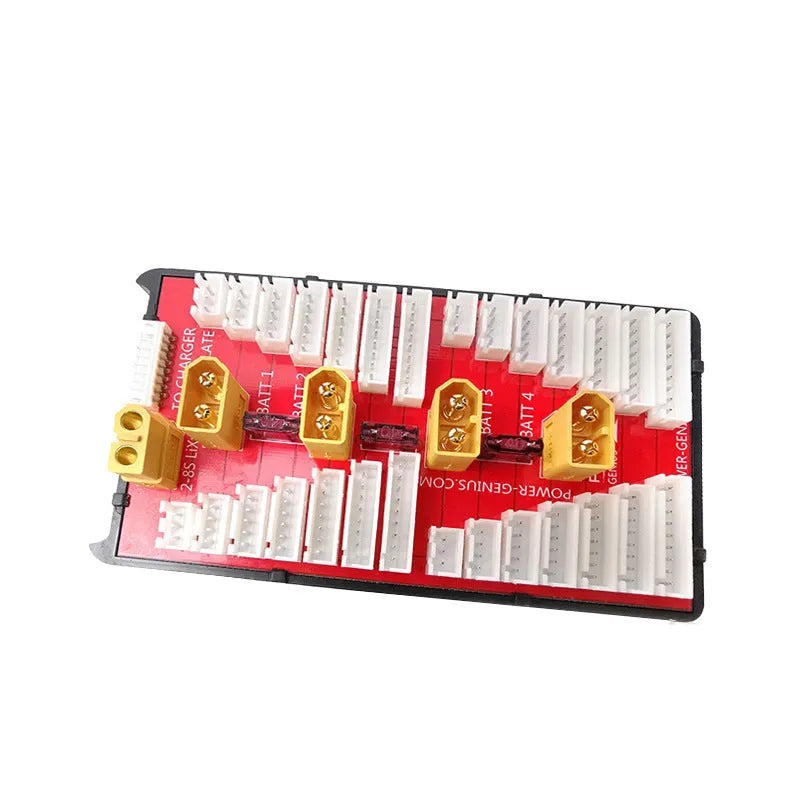

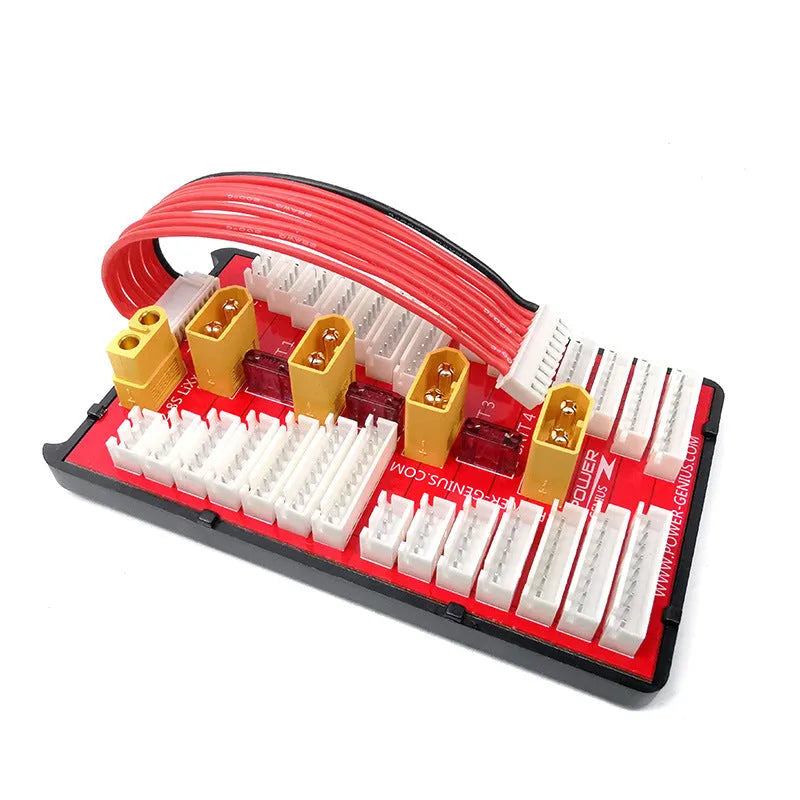

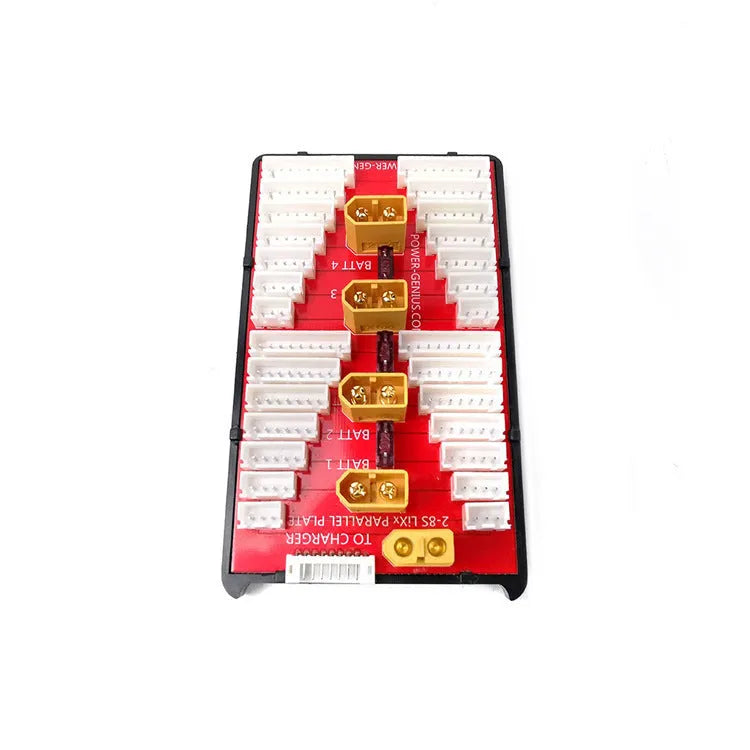

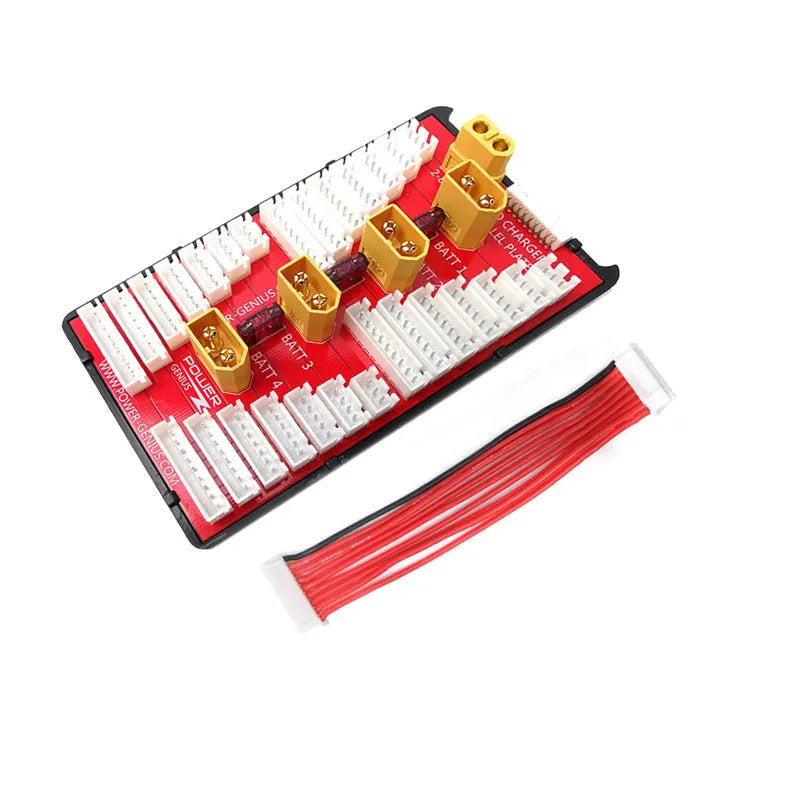

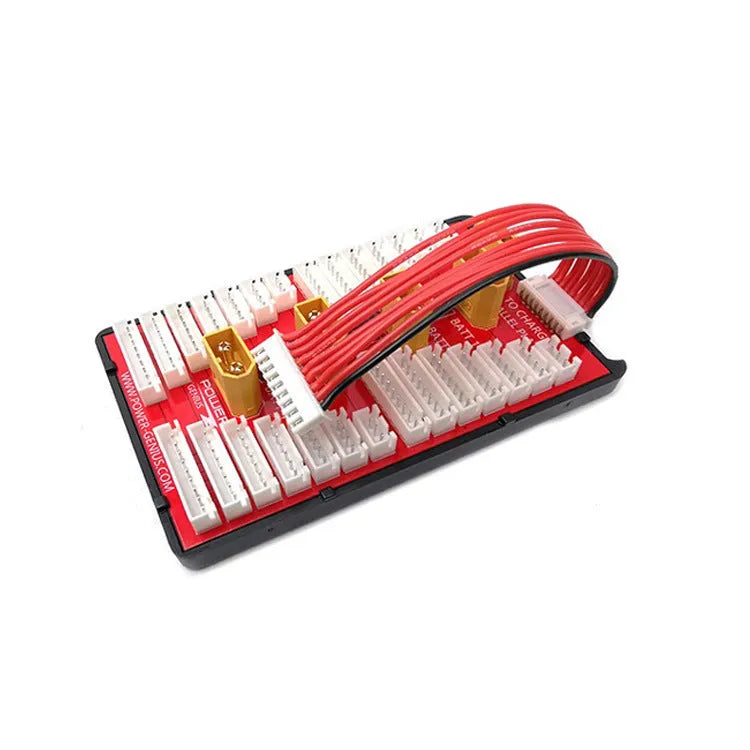

The board uses high-quality gold-plated connectors to minimise electrical resistance and improve conductivity, which is crucial for efficient charging. The output line for the balance port is made from 18AWG multi-strand silicone wire, known for its flexibility and ability to withstand heat, ensuring long-term reliability. Safety protective T plug silicone caps are included to cover unused connectors, preventing accidental short circuits that could damage your equipment. These design choices focus on practical usability, making the board straightforward to integrate into your existing charging setup without compromising on safety.

Technical Specifications and Performance DataQuality and Durability Construction

The construction prioritises durability through robust materials. The thicker PCB copper foil not only supports high current but also reduces the risk of overheating during extended use. The gold-plated connectors resist corrosion, maintaining good electrical contact over time. The 18AWG silicone wire is less prone to cracking or damage compared to standard wires, ensuring the balance port connections remain secure. These elements combine to create a board that can withstand frequent use in demanding environments, such as hobbyist workshops or field charging stations.

Applications for the Parallel Charging Board

This board is versatile for various scenarios where multiple lithium batteries are used. Below, we explore professional uses, everyday hobbyist applications, and its adaptability to different setups.

Professional and Hobbyist Use Cases

Professionals in drone racing or RC car competitions often need to charge multiple battery packs quickly between events. This board allows them to charge up to four sets simultaneously, reducing downtime and ensuring batteries are ready for the next round. In industrial settings where lithium batteries power testing equipment or portable tools, the board can streamline maintenance routines by charging several backups at once. Its 35A current capacity supports fast charging, which is essential in time-sensitive operations, while the 40A fuse provides an added layer of safety against voltage mismatches.

Everyday Use for Hobby Enthusiasts

For everyday hobbyists, this board simplifies the charging process at home or in the field. Instead of swapping batteries on a single charger repeatedly, you can connect multiple packs and let them charge together, freeing up your time for other activities. The tactile experience of using the board is straightforward: the gold-plated connectors offer a smooth, secure fit, and the silicone wire feels durable yet flexible when handling. Covering unused ports with the silicone caps gives a sense of organisation and safety, reducing clutter and potential hazards on your workbench.

Versatility in Battery Configurations

The board's versatility extends to various battery setups. It works with any 2-8S lithium battery pack, making it suitable for a wide range of devices, from small drones to larger RC models. By enabling capacity superposition, it allows users to customise their charging setup; for example, connecting four 4S 5000mAh batteries creates a 4S 20000mAh battery, which can be charged at a higher rate if your charger supports it. This adaptability means the board can grow with your needs, accommodating new battery types or expanded fleets without requiring additional equipment.

Benefits of Using the Parallel Charging Board

Using this board offers several advantages, from time savings to enhanced safety. Here, we discuss the long-term value, user satisfaction, and reasons to make it part of your toolkit.

Long-Term Value and Cost Efficiency

In terms of value, this board can reduce wear on your primary charger by minimising the number of connection cycles, potentially extending its lifespan. By charging multiple batteries at once, you may also lower electricity costs compared to running multiple chargers separately. The durable construction, with features like the thicker PCB and gold-plated connectors, means the board is built to last, offering a good return on investment over time. For hobbyists who frequently charge batteries, the time saved translates into more enjoyment and less hassle, making it a cost-effective addition to your gear.

User Satisfaction and Peace of Mind

User satisfaction stems from the board's ability to simplify a tedious task. The peace of mind comes from the 40A fuse protection, which guards against circuit damage from voltage differences, reducing the risk of battery or charger failure. Knowing that you can charge up to four sets safely and efficiently adds confidence to your routine, especially when preparing for events or extended use. The included silicone caps contribute to this by preventing accidental short circuits, ensuring a tidy and secure setup that you can rely on every time.

Call to Action: Enhance Your Charging Setup

If you're tired of spending hours swapping batteries on a single charger, this parallel charging board offers a measurable solution. It cuts balance charging time by up to 75% when charging four sets, thanks to the single balance cycle required. With a 35A current capacity and 40A fuse protection, it supports fast, safe charging for your 2-8S lithium batteries. Incorporate it into your setup to streamline your workflow, reduce downtime, and enjoy more time using your devices rather than waiting for them to charge.
