UTi Series Infrared Thermal Imager with -10°C to 400°C Measurement Range for Professional Inspections

The UTi260B, UTi120S, and UTi165A thermal imagers provide precise temperature monitoring across a broad range from -10°C to 400°C with ±2%°C accuracy. These devices feature a 320x240 pixel display and 160x120 infrared resolution, enabling detailed visualisation of heat patterns for electrical systems, mechanical equipment, and building envelopes. With a 9Hz frame rate, they offer real-time thermal imaging that helps identify overheating components, insulation deficiencies, and energy loss points before they develop into costly problems.

Technical Specifications and Imaging Performance

This section details the measurable capabilities that make the UTi series suitable for various inspection scenarios, from industrial maintenance to energy auditing.

Display and Resolution Features

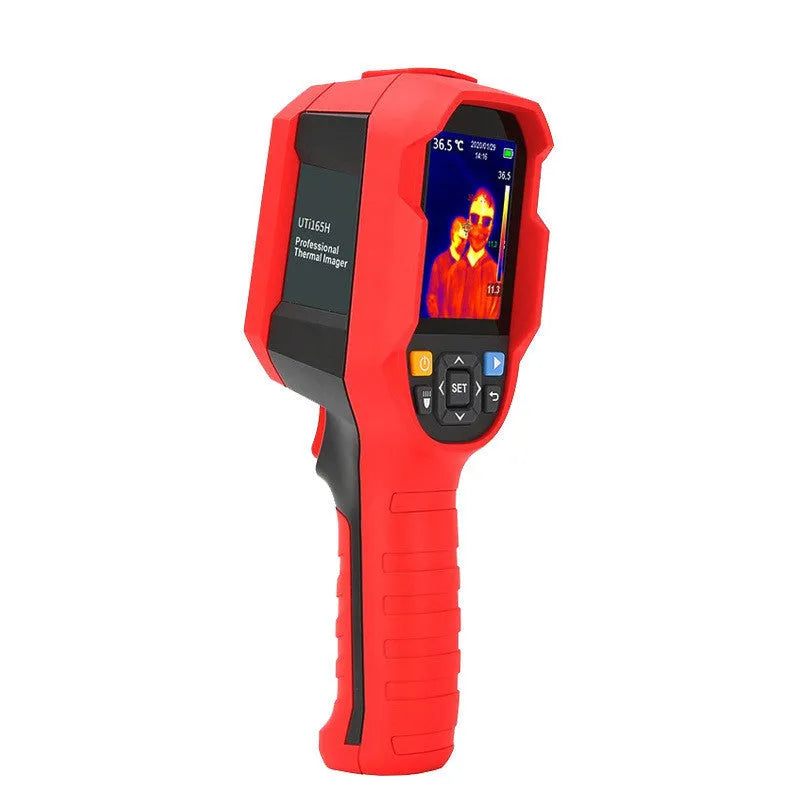

The 2.8-inch TFT screen displays thermal images at 320x240 pixels, providing clear visualisation of temperature gradients. The 160x120 infrared resolution captures sufficient detail to identify specific hot spots in electrical panels or pinpoint heat leakage around windows. This combination allows users to distinguish temperature differences as small as 0.5°C in the 30°C to 45°C range, which is particularly useful for human body temperature screening applications.

Measurement Range and Accuracy

With a measurement span from -10°C to 400°C, the imager handles both sub-zero conditions and high-temperature industrial environments. The ±2%°C accuracy ensures reliable readings across this entire range, while the dedicated 30°C to 45°C range offers enhanced ±0.5°C precision for medical or HVAC applications. The fast high-temperature tracking function responds quickly to thermal changes, making it effective for monitoring dynamic processes or moving equipment.

Durability and Construction QualityPractical Applications Across Industries

These thermal imagers serve multiple professional sectors by visualising temperature variations that indicate potential problems in systems and structures.

Electrical and Mechanical Inspection Use

Electricians identify overheating connections in distribution panels before they cause failures, while maintenance technicians monitor bearing temperatures in rotating machinery to predict lubrication needs. The -10°C to 400°C range covers most electrical components and mechanical systems, with the 9Hz refresh rate capturing temperature fluctuations in real time during equipment operation. The ability to store images on the 8GB TF card creates documentation for compliance reports or maintenance records.

Building and Energy Assessment Applications

Energy auditors visualise heat loss through building envelopes, with the thermal images revealing insulation gaps around windows, doors, and wall penetrations. The clear display shows temperature differences that indicate air leakage or missing insulation, helping homeowners prioritise retrofit investments. Surveyors assess damp patches and water ingress by detecting temperature variations in building materials, with the portable design allowing access to confined spaces during property inspections.

Versatile Monitoring Capabilities

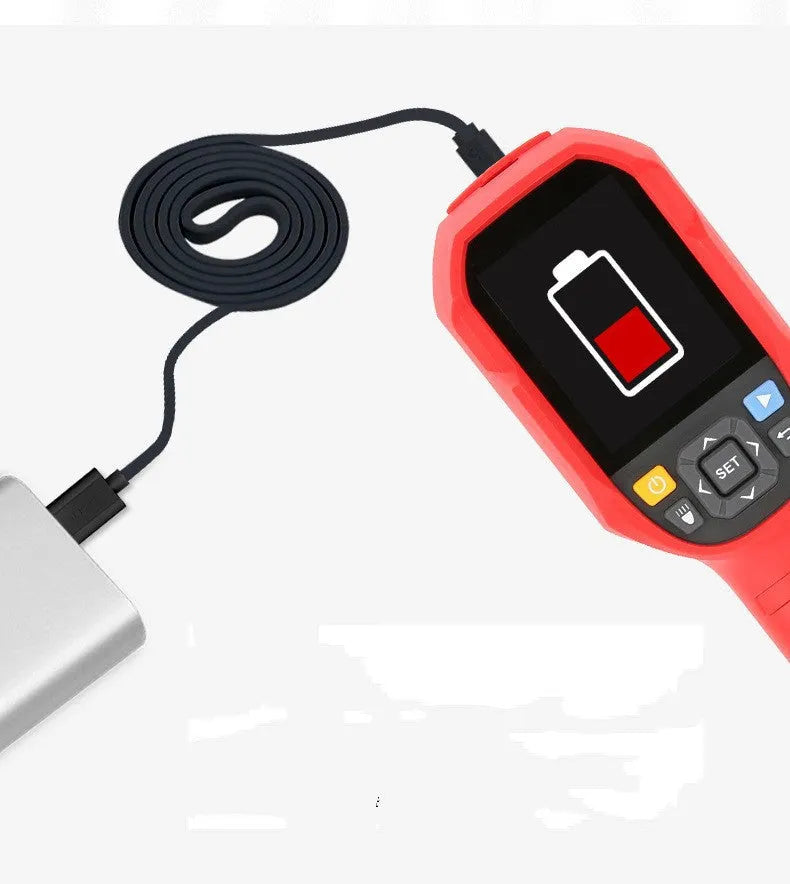

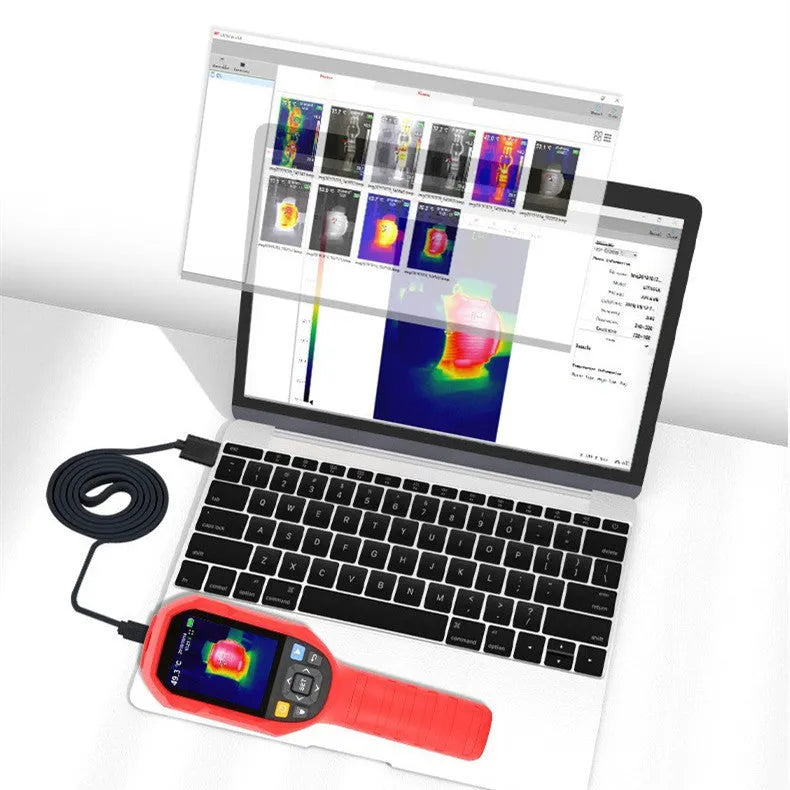

Beyond traditional applications, these imagers support process monitoring in manufacturing, where they track temperature uniformity in ovens or detect cooling system blockages. The USB charging capability ensures continuous operation during extended site visits, while the PC analysis software enables detailed examination of thermal patterns back in the office. The combination of portability, measurement range, and data storage creates a versatile tool for professionals who need to document temperature conditions across multiple locations.

Operational Benefits and User Advantages

The specific features of the UTi series translate into practical benefits that improve inspection efficiency and reliability in field applications.

Long-Term Value and Cost Efficiency

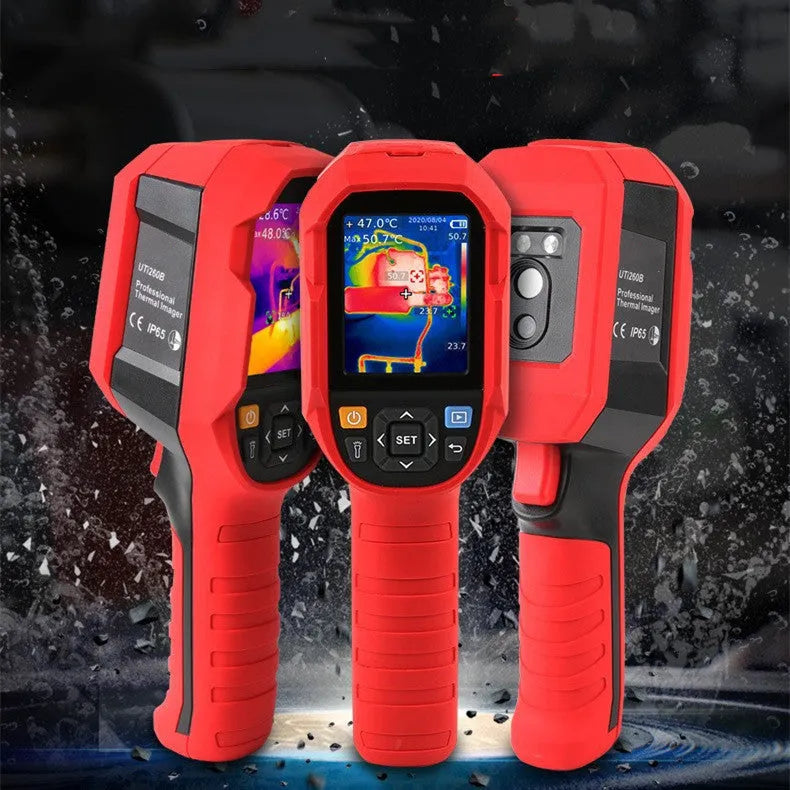

Compared to single-use temperature probes or basic thermal guns, the imager provides comprehensive thermal mapping that identifies problem areas more efficiently. The IP65 rating and 2-metre drop resistance reduce replacement costs from environmental damage, while the standard lithium battery and USB charging minimise ongoing power expenses. The ability to store thousands of images on the included 8GB card creates an archive for tracking equipment condition over time, supporting predictive maintenance programmes.

User Experience and Operational Confidence

The confidence in measurements comes from the ±2%°C accuracy specification, which ensures reliable data for making maintenance decisions. The peace of mind during electrical inspections stems from knowing the 400°C maximum range exceeds most fault temperatures, while the fast high-temperature tracking responds quickly to developing hot spots. The intuitive interface with photo storage capability simplifies documentation, reducing the time needed to compile inspection reports with visual evidence.

Practical Implementation Advantages

Implement this thermal imager to reduce equipment downtime by identifying problems during routine inspections before they cause failures. The combination of measurement range, accuracy, and durability makes it suitable for both indoor electrical work and outdoor building surveys, eliminating the need for multiple specialised devices. The included accessories provide everything needed for immediate use, from the USB cable for charging to the cloth bag for lens protection during transport between job sites.
