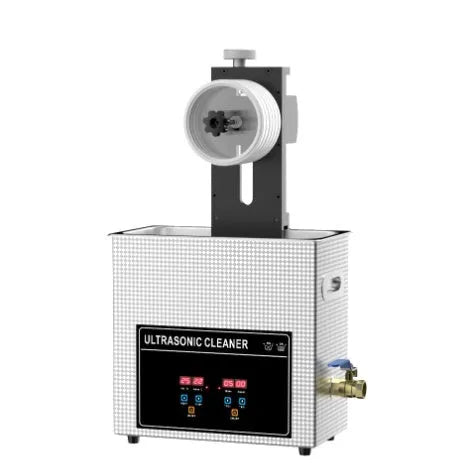

Ultrasonic Cleaning Machine: Remove Dust, Scale, and Dirt from Delicate Items with 40kHz Frequency

This ultrasonic cleaning machine provides a specialised solution for maintaining 3D printed vinyl records and printed circuit boards (PCBs). It operates on a 40kHz ultrasonic frequency, creating microscopic cavitation bubbles that scrub away contaminants without physical contact. The unit includes a 6.5-litre tank with a single-slot cleaning bracket measuring 300 x 150 x 150mm, designed to hold items securely. With adjustable temperature control from 20°C to 80°C and a timer range of 1 to 30 minutes, it offers controlled, repeatable cleaning cycles powered by a 220V supply and a 0.3kW heating element.

Features and Build Quality of the Ultrasonic Cleaner

This section details the specific technical specifications and construction elements that define the cleaner's performance, from its ultrasonic mechanism to its physical dimensions and electrical requirements.

Ultrasonic Cleaning Mechanism Design

The core of this machine is its ultrasonic cleaning system, which operates at a fixed frequency of 40kHz. This frequency is generated by three oscillators positioned within the tank to ensure even distribution of energy. The process agitates a liquid cleaning solution, causing the formation and implosion of microscopic bubbles. This cavitation action provides the mechanical force to dislodge dust, scale, and dirt from the surfaces of submerged items, making it particularly effective for intricate objects like PCBs or textured 3D prints.

Temperature and Timing Technical Specifications

Precise control over the cleaning environment is enabled by two key adjustable settings. The temperature can be set anywhere from 20°C to 80°C, allowing users to warm solutions to improve cleaning efficacy for certain soils or materials. The cleaning duration is controlled by a digital timer with a range from 1 minute to 30 minutes. This combination allows for tailored cycles—a short, cool rinse or a longer, heated soak—depending on the item being cleaned. The heating is provided by a 0.3kW element.

Tank Construction and Capacity Details

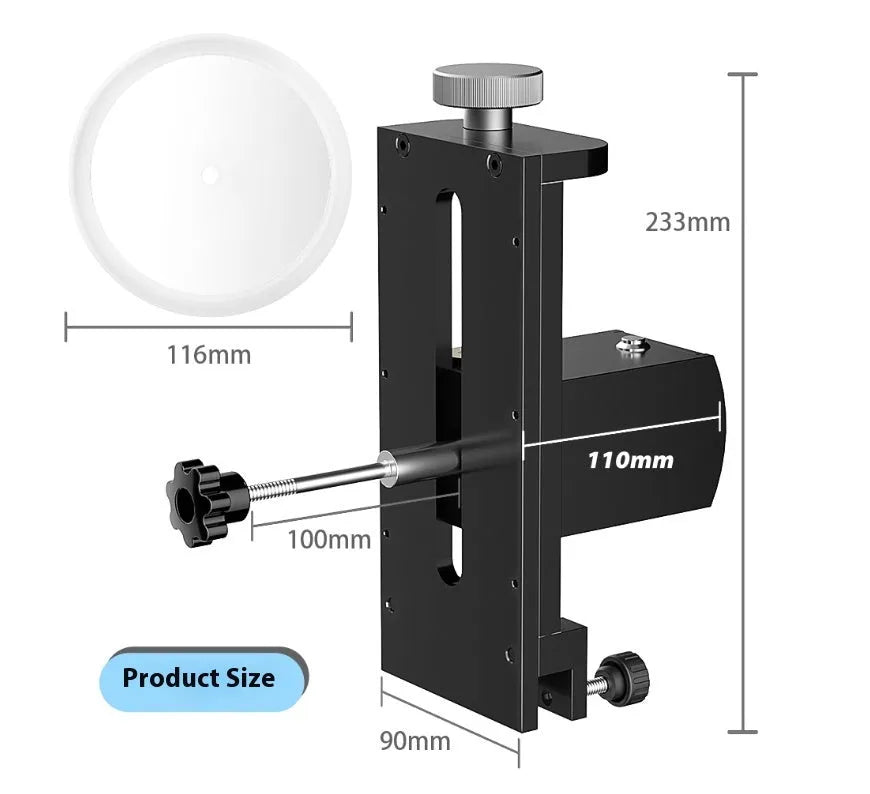

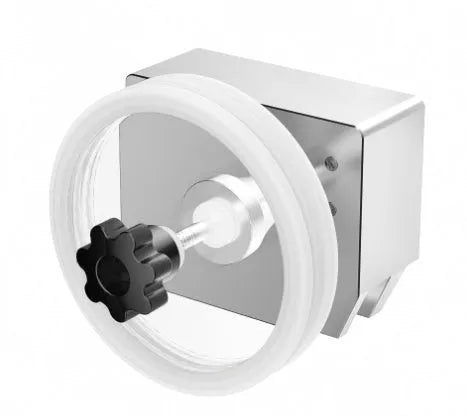

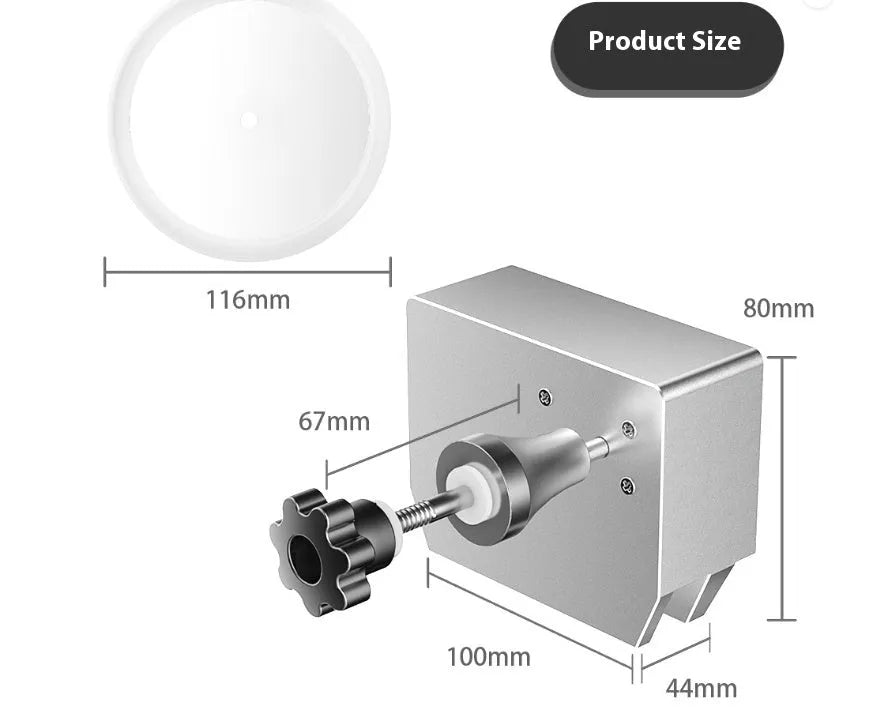

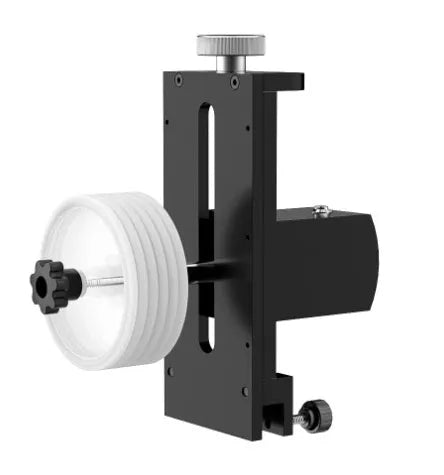

The cleaning chamber is a 6.5-litre tank built to withstand prolonged exposure to ultrasonic energy and the specified temperature range. Its construction focuses on durability for the described cleaning tasks. The unit's overall footprint is 325mm in width, 270mm in depth, and 175mm in height for the base, with the full assembly standing 460mm tall, 330mm wide, and 400mm deep. The included accessory is a single-slot cleaning bracket with an internal groove sized at 300 x 150 x 150mm, providing a dedicated space to position items.

Practical Applications for the Ultrasonic Cleaner

This machine is designed for specific scenarios where traditional cleaning methods are ineffective or risky. Its primary use cases involve delicate components with complex geometries or sensitive surfaces.

Professional Use for Electronics and Prototyping

In workshops or labs, this cleaner is suited for maintaining printed circuit boards (PCBs). Flux residue, dust, and light corrosion can be removed from solder joints and components without the risk of damage from brushing. For prototyping and model-making, it can clean 3D printed parts, such as vinyl record masters or detailed architectural models, by removing support material residues and dust from layer lines and fine details that are difficult to reach manually.

Everyday Use for Hobbyists and Collectors

For the hobbyist, the gentle yet thorough action of the 40kHz ultrasound offers a reliable way to care for valued items. Imagine placing a dusty, vintage-style 3D printed decorative disc into the warm solution. The consistent hum of the ultrasonics works across its surface, and after the cycle, you lift out a piece where every groove and texture feels clean to the touch, free from the ingrained grime that dulls its appearance, thanks to the controlled 20-80°C temperature range.

Versatility in Maintenance Routines

While specified for 3D prints and PCBs, the cleaner's principle allows it to be used for other small, non-porous items that benefit from a non-abrasive clean. Think of delicate tools, jewellery, or mechanical parts like watch components. The key is using an appropriate, non-corrosive cleaning solution for the material. The single 300 x 150 x 150mm bracket can hold a small tray or mesh basket to organise multiple smaller items for batch cleaning during a single cycle.

Benefits of Using the Ultrasonic Cleaning System

Investing in this equipment brings measurable advantages in cleaning quality, consistency, and long-term value for specific maintenance tasks.

Long-Term Value and Operational Cost

User Satisfaction and Result Confidence The satisfaction comes from the confidence in achieving a thorough clean. Knowing that the 40kHz waves are reaching into every crevice of a PCB or the fine layer lines of a 3D print provides peace of mind that manual methods cannot guarantee. This confidence is directly linked to the technical specs: the assurance of no missed spots stems from the even coverage of the three oscillators, and the knowledge that the item is safe comes from the non-contact cleaning method and the controllable temperature up to 80°C.

Reason to Purchase This Cleaner

If your work or hobby involves maintaining delicate, intricately shaped items like PCBs or 3D prints, this cleaner addresses a specific need. It replaces inefficient wiping or rinsing with a measurable process: a 40kHz ultrasonic clean for a set duration between 1 and 30 minutes, at a chosen temperature up to 80°C. The included 300 x 150 x 150mm bracket is ready to use, making it a complete solution to systematically remove dust, scale, and dirt from items that require careful handling.
