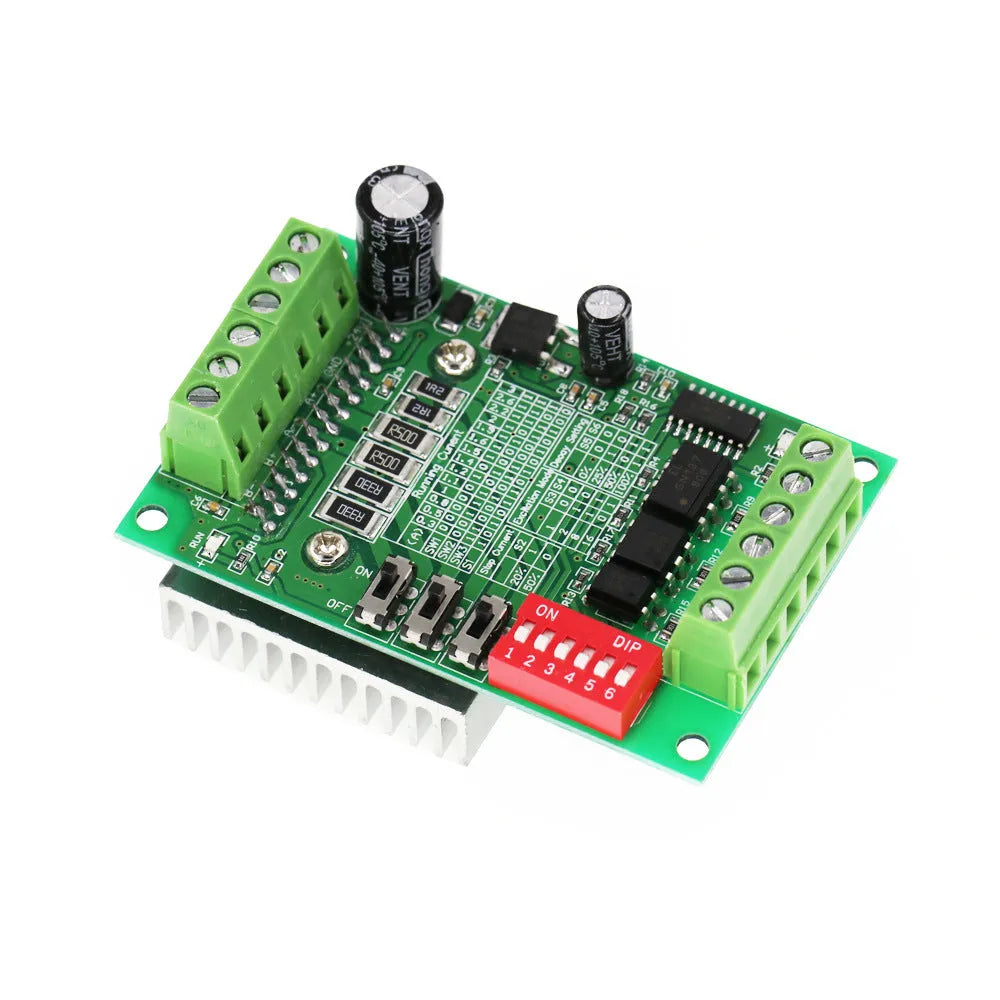

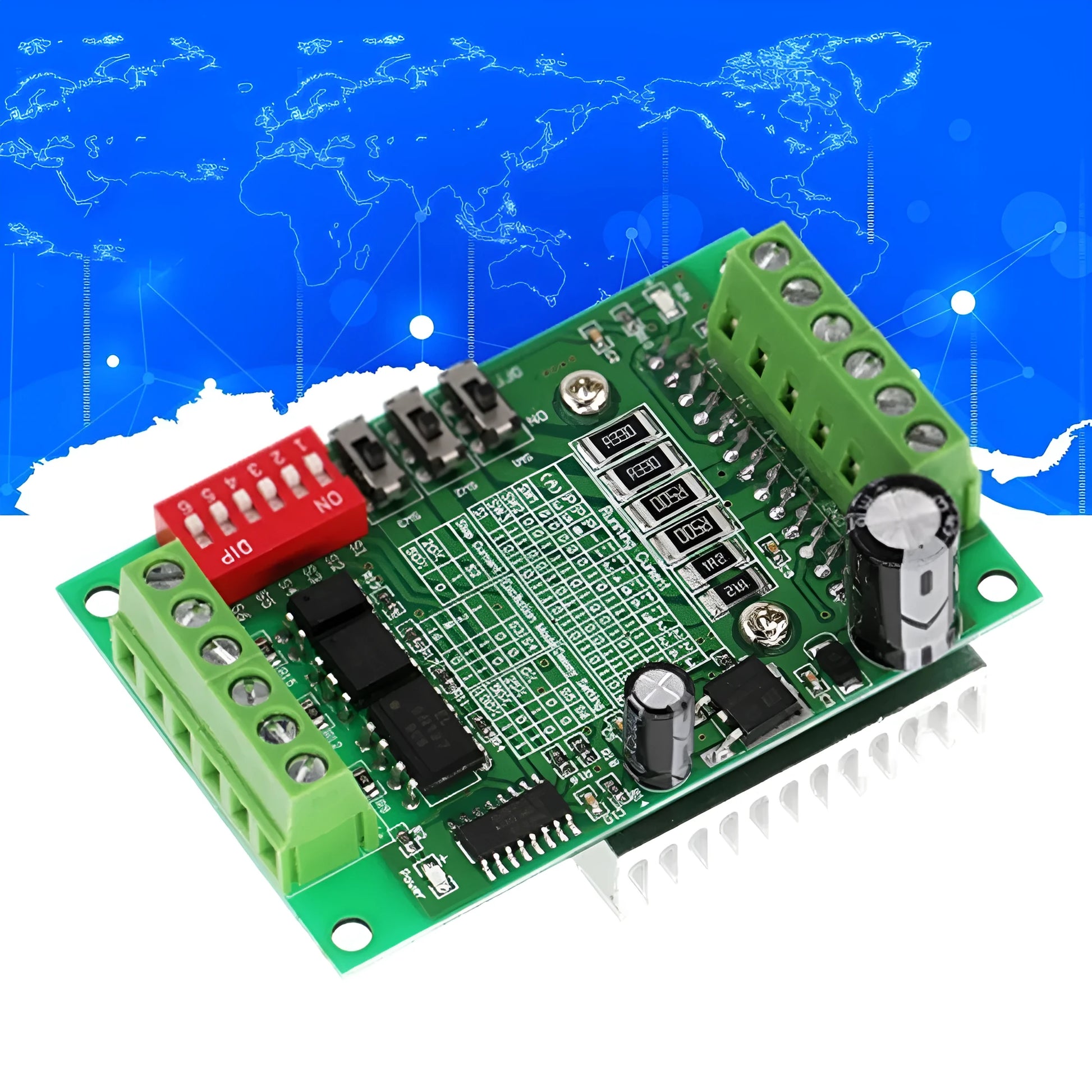

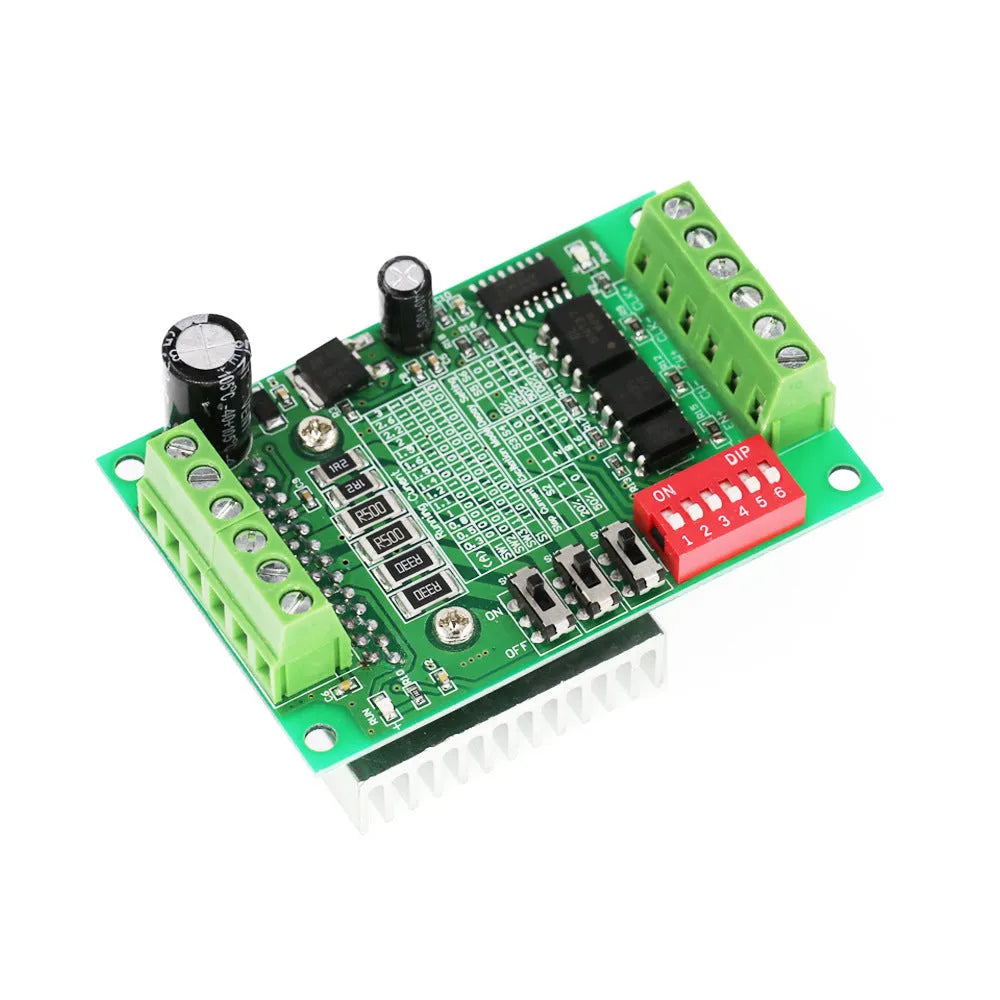

TB6560 3A Stepper Motor Driver Module with 6N137 Optocoupler for Engraving and Placement Machines

Engineered for applications demanding precise motion control, the TB6560 stepper motor driver module delivers reliable performance for equipment like engraving and placement machines. Its core is the Toshiba TB6560AHQ chip, which incorporates essential safety features including low-voltage shutdown, over-temperature protection, and over-current protection circuits. This driver supports a wide input voltage range of DC 10V to 35V, with a recommended 24V switching power supply for optimal operation. It is designed specifically for two-phase, four-phase, four-wire, and six-wire stepper motors within the common 42 and 57 step sizes, provided they do not exceed a 3A rating. The module's compact form factor, measuring 50mm by 75mm by 35mm, allows for integration into space-conscious designs.

Features and Construction

The TB6560 driver is built around key components that prioritise control accuracy and operational safety. Its construction focuses on providing stable power delivery and heat management for consistent performance.

Material and Build

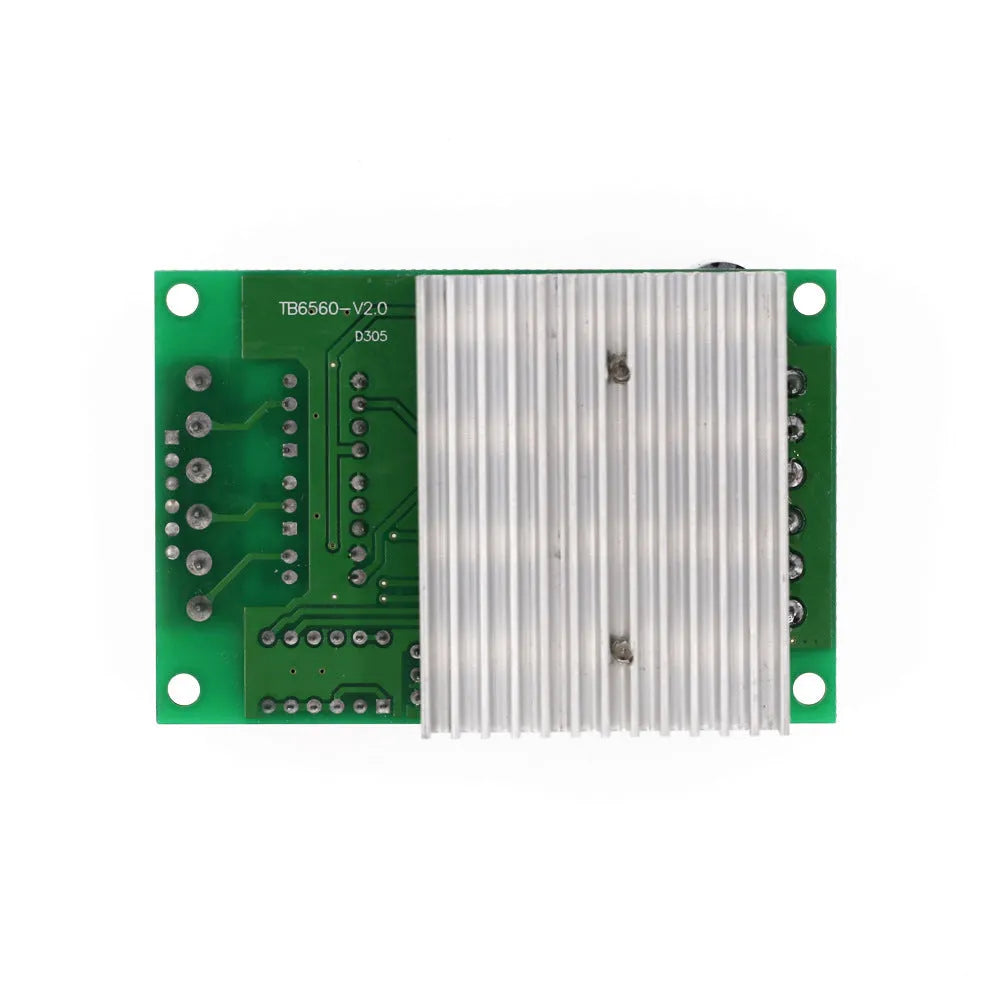

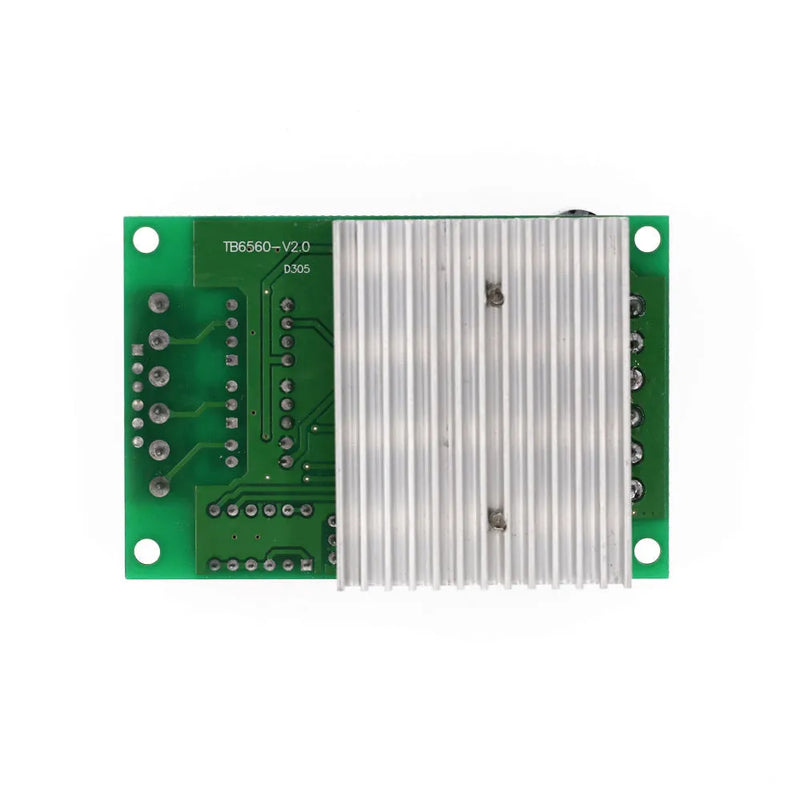

At the heart of the module is the Toshiba TB6560AHQ chip, a brand-new original component responsible for the driver's core logic and built-in protection features. For signal isolation and high-speed performance, the board utilises a 6N137 high-speed optocoupler, which helps to ensure commands are transmitted quickly without losing motor steps. A thick, dense finned heat sink is attached to manage thermal output during use, aiding in heat dissipation to maintain stable chip operation.

Size and Practical Fit

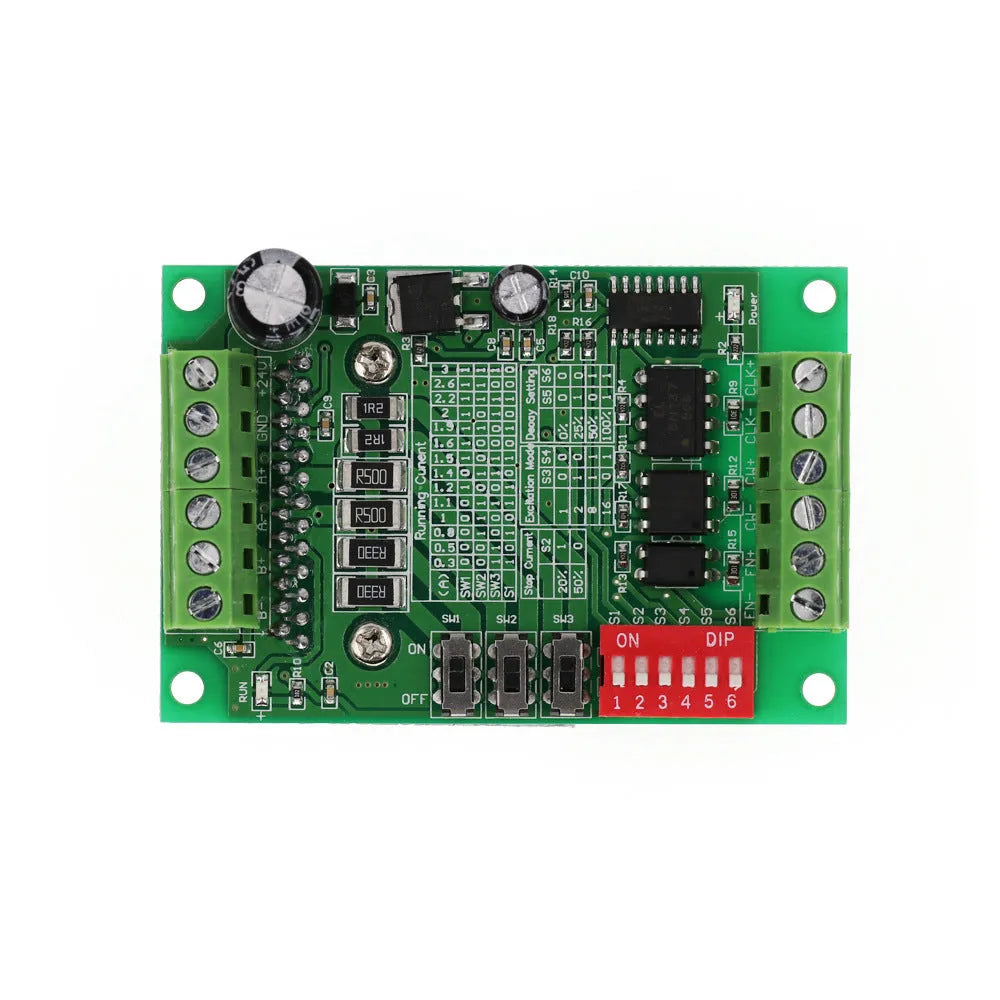

With dimensions of 50mm in width, 75mm in length, and 35mm in height, this driver module presents a compact solution for integration into various machinery and project enclosures. Its relatively small footprint makes it suitable for applications where panel space is limited, such as in desktop CNC routers or custom automated systems. The on-board printing provides clear setting instructions, allowing for setup and adjustment without needing to reference a separate manual.

Uses and Placement

This driver is tailored for scenarios requiring accurate positioning and repeatable movement, commonly found in both hobbyist projects and professional equipment.

Event or Professional Use

In professional and light industrial settings, this module is applied to equipment like PCB placement machines, laser engravers, and small-scale CNC mills where precise control of 42 or 57 frame stepper motors is essential. Its 3A output rating and support for multiple subdivision modes make it capable of delivering the smooth, controlled motion needed for detailed engraving work or accurate component placement. The high-speed optocoupler is particularly valuable in these applications to maintain accuracy as operational speeds increase.

Everyday Home Use

For makers and DIY enthusiasts, this driver is a practical component for building 3D printers, automated camera sliders, or plotter tables. The adjustable current settings allow fine-tuning for different motor loads, while the automatic half-flow function can help reduce motor heating and power consumption when the motor is at rest. Its compatibility with common two-phase and four-phase motors makes it a versatile choice for a wide range of personal fabrication and automation projects.

Benefits and Buying Value

The value of this driver lies in its tested reliability, specific feature set for motor control, and the practical benefits it offers in suitable applications.

Reuse and Low Maintenance

The driver's robust chip protection circuits—guarding against low voltage, over-temperature, and over-current conditions—contribute to its potential for long-term use in a system. The metal heat sink aids in consistent thermal management during operation. It is important to note that the module itself lacks additional external protection circuits; therefore, careful wiring and power supply selection are necessary to prevent chip damage, which is not covered under warranty.

Why Choose This Product

This TB6560 driver module is a suitable choice for users who need a specific 3A-capable driver for 42 or 57 frame stepper motors, with the advantage of high-speed signal isolation via the 6N137 optocoupler. Its multiple subdivision options, from full step to 1/16 step, provide flexibility in balancing speed and resolution for different tasks. The inclusion of on-board instructions simplifies the setup process. It represents a focused solution for integrating precise stepper motor control into a project, backed by core protection features within the drive chip itself.
