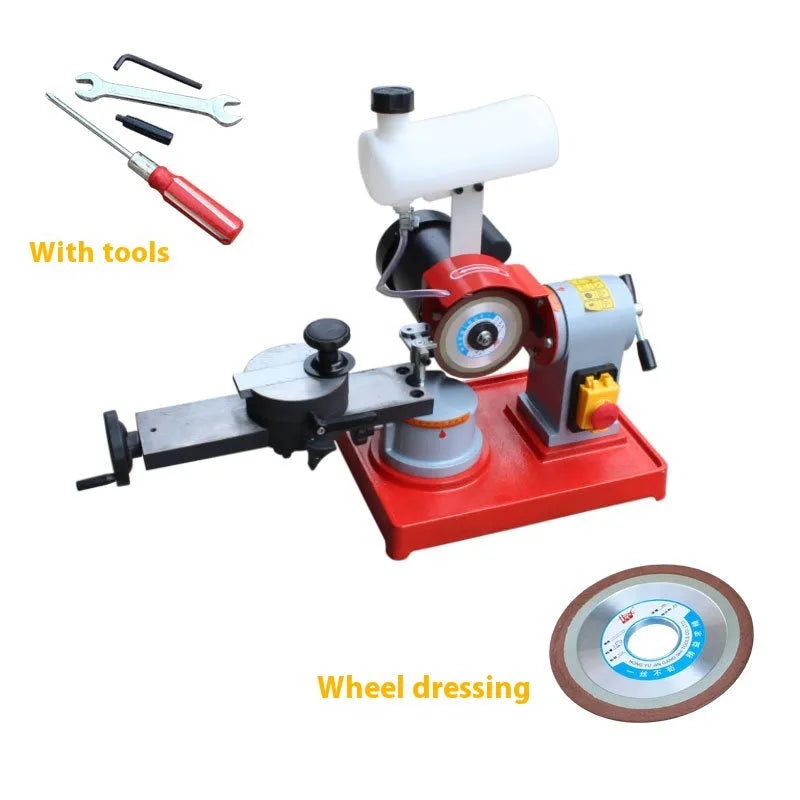

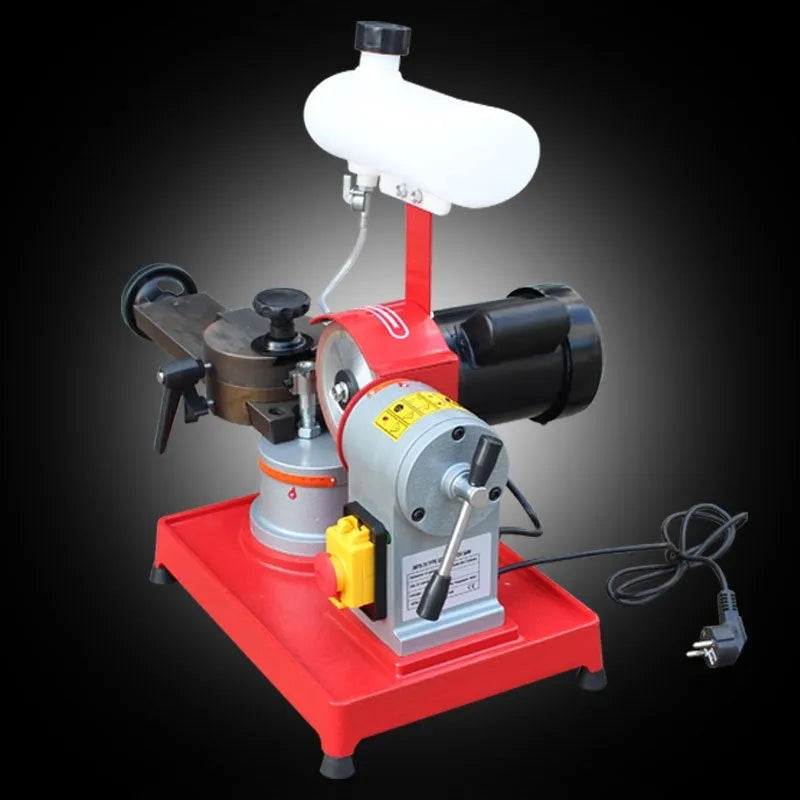

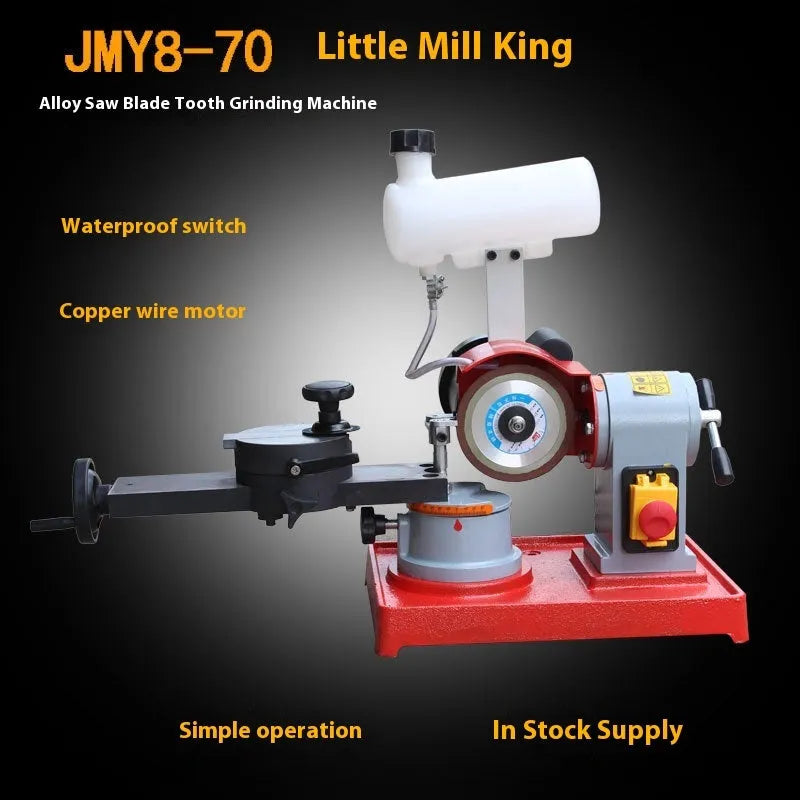

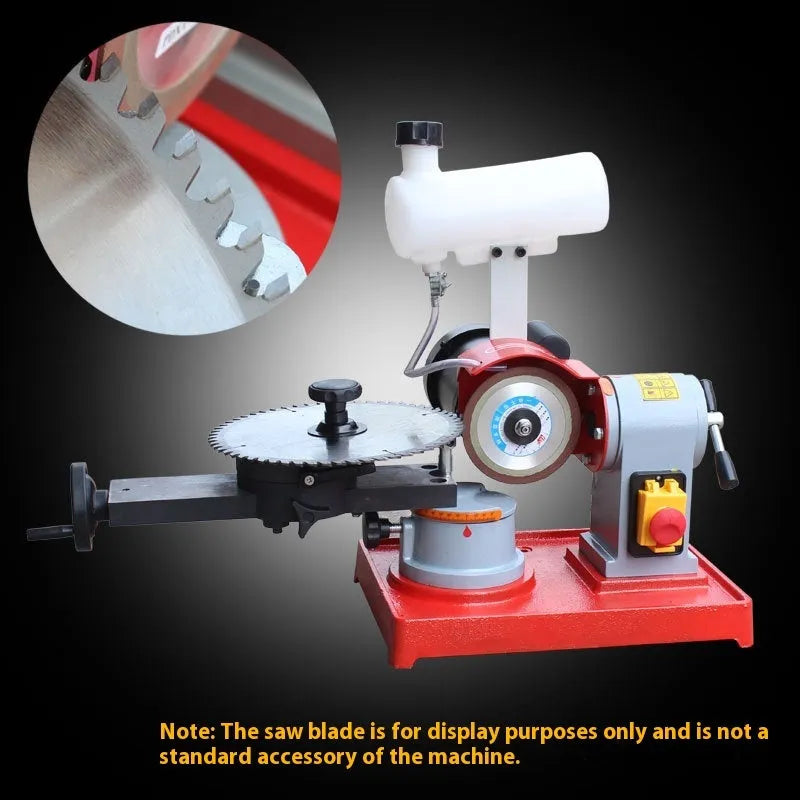

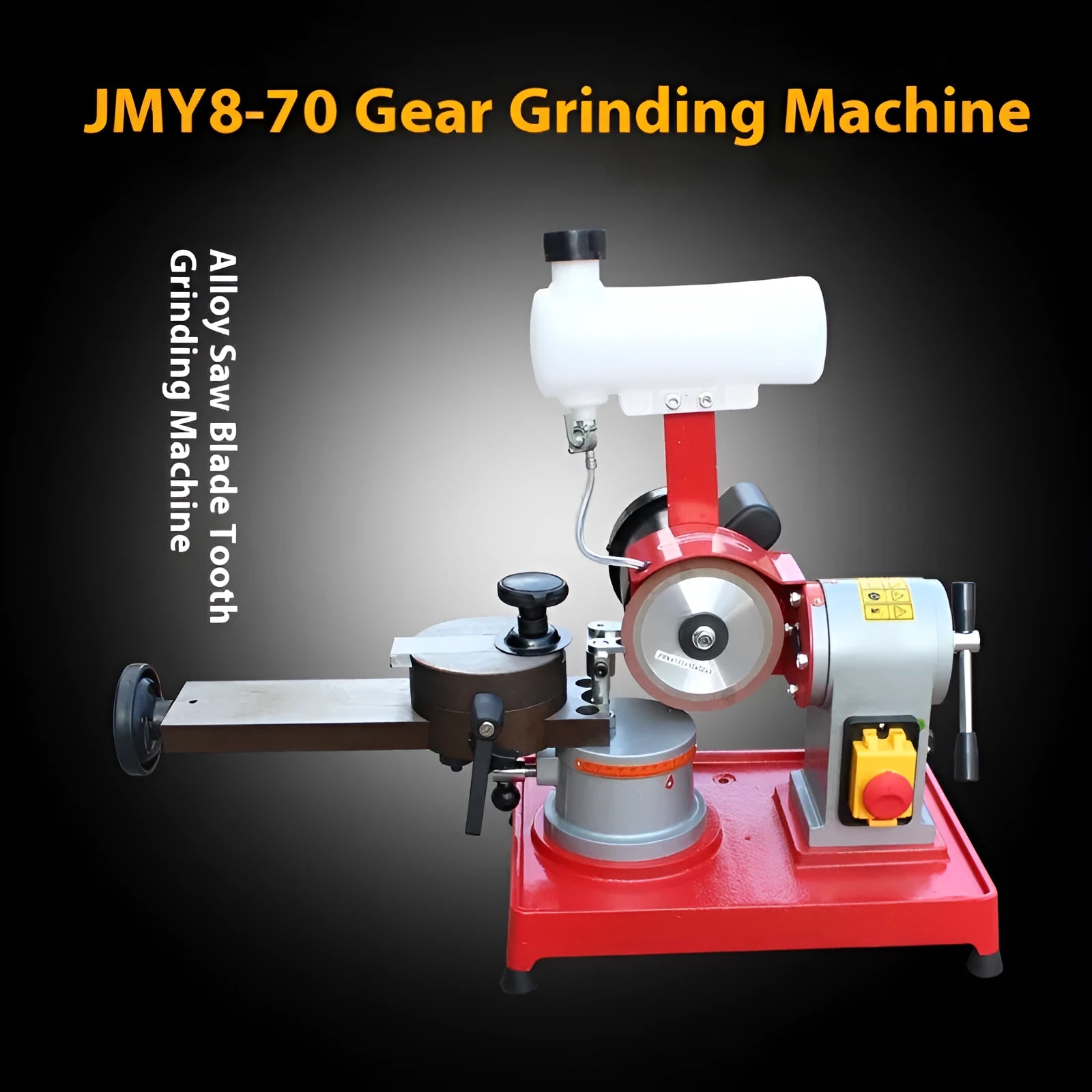

Xiao Mowang Manual Sharpening Machine for Alloy Saw Blades from 80mm to 700mm

The Xiao Mowang manual grinding machine provides a dedicated solution for sharpening the teeth of alloy circular saw blades. With a grinding capacity for blades ranging from a compact 80mm up to 700mm in diameter, it serves a wide array of woodworking tools. Its 370W, 220V single-phase motor makes it suitable for workshops without industrial three-phase power. The machine's core function is to restore a sharp, consistent cutting edge to each tooth, which can improve cut quality and extend the service life of your saw blades. The included set of four bore gaskets ensures a secure fit for blades with different centre holes.

Features and Build Quality of the Sharpening Machine

This sharpening machine is built for the specific task of maintaining alloy saw blades. Its design focuses on providing the necessary adjustments and stability for accurate tooth profiling. We'll examine its construction, technical specifications, and the components that contribute to its operation in a workshop environment.

Compact Workshop Design and Dimensions

With overall dimensions of 770mm in length, 430mm in width, and 300mm in height, this sharpening machine has a footprint designed for smaller workshops or garage spaces. Its size allows it to be positioned on a sturdy benchtop without monopolising valuable workspace. The compact form does not compromise on its functional range, as it can handle saw blades with a grinding diameter from 80mm, typical of small trim saws, up to 700mm for larger panel saws. The machine's mass and build contribute to damping vibrations during the grinding process for more consistent results.

Motor Power and Grinding Wheel Specifications

Power is supplied by a 370-watt, 220-volt single-phase motor. This specification means the machine can be plugged into a standard UK domestic or workshop socket, avoiding the complexity and cost of installing a three-phase supply. The motor drives the grinding wheel at a speed of 2800 revolutions per minute. This rotational speed is calibrated to provide effective material removal from the hard alloy steel of saw teeth without generating excessive heat that could damage the blade's temper. The grinding wheel itself is a key consumable, and its abrasive properties are selected for metalworking applications.

Adjustment Mechanisms and Mounting System

Precise sharpening requires control over the grinding angle. This machine provides an adjustment range of ±20 degrees for the grinding wheel head. This allows the user to set the correct bevel angle for different tooth designs, from rip to crosscut configurations. To mount the saw blade securely, the machine is supplied with a set of four steel gaskets. These gaskets have inner diameters of 20mm, 22mm, 25.4mm, and 30mm, covering the most common arbor hole sizes found on circular saw blades. This system ensures the blade runs true during sharpening, which is critical for achieving an even edge on every tooth.

Practical Applications for the Sharpener

This machine fills a specific niche in tool maintenance, bridging the gap between manual filing and fully automated sharpening systems. Its applications are centred around extending the utility and performance of a common workshop cutting tool.

Professional Woodworking and Carpentry Use

For professional joiners, carpenters, and workshop owners, maintaining a fleet of saw blades is both a practical and economic concern. Sending blades out for professional sharpening incurs cost and downtime. This machine allows for in-house maintenance of alloy circular saw blades used on table saws, mitre saws, and circular hand saws. Being able to touch up a blade between major sharpenings can help maintain a cleaner cut line on finishing work. The ability to adjust angles means it can be set up for specialised blades, such as those for laminate flooring or composite materials, provided the tooth geometry is within the machine's ±20° adjustment range.

DIY and Hobbyist Workshop UseVersatility in Blade Maintenance

While designed for alloy circular saw blades, the fundamental principle of the machine could be adapted for similar tasks with appropriate jigs and caution. The consistent rotational speed and adjustable head angle make it a potential platform for sharpening other hardened steel cutting tools, such as certain planer knives or chisels, though this would require careful setup and is not the primary designed use. Its main versatility lies in the wide range of saw blade diameters and bore sizes it can accommodate with the supplied fittings.

Benefits of Owning a Dedicated Sharpener

Investing in a sharpening machine shifts blade maintenance from a reactive, outsourced cost to a controlled, in-house process. The benefits extend beyond simple cost savings to include consistency and readiness.

Long-Term Value and Cost EfficiencyUser Experience and ControlReason to Purchase This Sharpening Machine

If you regularly use circular saw blades for woodworking and find that their performance diminishes over time, this machine provides a targeted solution. It is designed for a specific job—sharpening alloy saw blade teeth—and provides the necessary adjustments and power to do that job effectively with standard UK mains electricity. The inclusion of four common bore size gaskets means it's ready to use with most blades from the outset. For anyone looking to reduce ongoing tool costs and increase self-sufficiency in their workshop, this sharpener represents a practical piece of maintenance equipment.
