Small Boat 40A Brushed ESC: Adjustable Control for 1/16 & 1/18 Scale RC Models

Introductory paragraph: The Small Boat 40A brushed electronic speed controller delivers precise throttle management for compact radio-controlled vehicles. Its core capability lies in handling a forward continuous current of 40A, peaking at 160A, providing the punch needed for quick acceleration in buggies and trucks. With three user-selectable operation modes, including a specific climbing function, it adapts to different driving scenarios from racing on flat surfaces to navigating rocky inclines. Compatibility with common 2S LiPo or 5-6 cell NiMH batteries and 280-380 size brushed motors makes it a versatile choice for upgrading 1/16th and 1/18th scale models.

Features and Technical Specifications

This section details the measurable performance data and construction elements that define this miniature ESC's operation and integration into your RC setup.

Current Handling and Modes

The ESC manages power through distinct channels. The forward drive circuit supports a sustained 40-amp load, with a brief peak capability of 160A for sudden bursts of speed. For reverse manoeuvres and braking, it provides a 20A continuous current. The selectable operation modes allow you to configure it for forward-only running, standard forward/brake/reverse, or a specialised climbing mode that optimises torque delivery for ascending steep slopes, a common requirement for scale crawlers and trail trucks.

Power Compatibility and BEC

It operates within a voltage range suitable for 2-cell Lithium Polymer (2S LiPo) packs or 5 to 6-cell Nickel-Metal Hydride (NiMH) batteries. The integrated Battery Eliminator Circuit (BEC) is a switched-mode type, which is more efficient than linear regulators. It delivers a stable 5V or 6V output at 3A to power your receiver, steering servo, and any auxiliary lights or winches, ensuring they function without interference from the main motor's power draw.

Construction and Motor Support

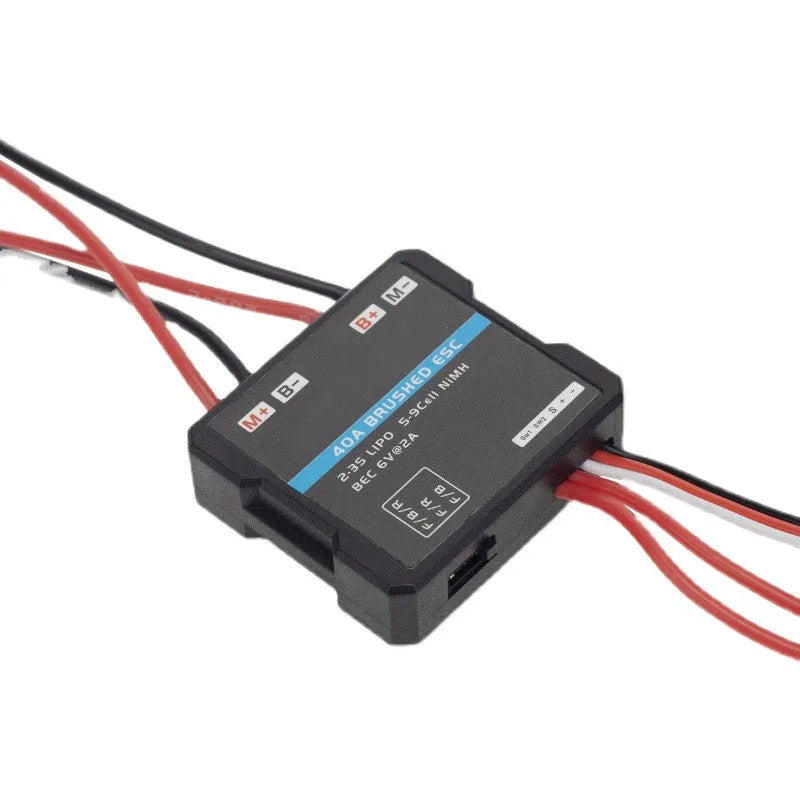

Built for the confined spaces of 1/16 and 1/18 scale chassis, the unit employs a durable printed circuit board and is typically paired with an aluminium heatsink to dissipate heat generated during high-load activities. It is designed to work with standard brushed motors in the 280, 370, and 380 size classifications, provided their rotational speed does not exceed 30,000 revolutions per minute when powered by a 7.2V source, ensuring safe and reliable operation.

Practical Applications and Use Cases

Understanding where and how to use this ESC maximises its value, whether for competitive racing, trail driving, or casual bashing in the garden.

For Scale Crawling and Trail Driving

In the world of scale trail trucks and rock crawlers, low-speed control and torque are paramount. The dedicated climbing mode of this ESC allows for precise, slow-throttle input essential for navigating over obstacles like tree roots or gravel piles. The reliable 5V/6V BEC output ensures your chosen micro servo has consistent power for accurate steering on technical courses, making it a sensible choice for enthusiasts building detailed, performance-oriented scale models.

For Garden and Car Park Bashing

When used in a small-scale buggy or short-course truck for casual running, the two-way mode provides the familiar control of forward, brake, and reverse. The sensation of trigger response is direct, thanks to the efficient power delivery from the battery to a 370-sized motor. The compact size means it tucks neatly into a cramped chassis, allowing for a cleaner build and better weight distribution, which translates to more predictable handling during high-speed turns on tarmac or short grass.

Model Compatibility and Versatility

Its specified compatibility makes it a go-to component for a range of 1/16th and 1/18th scale vehicles. Beyond the listed buggies and trucks, it can be adapted for use in small-scale tanks or custom-built projects where a reliable, adjustable brushed ESC is needed. This versatility offers value, as a single unit can be transferred between different models in a collection, provided the motor and battery specifications remain within the supported limits.

Ownership Benefits and Value

Choosing this speed controller brings specific advantages related to performance tuning, long-term reliability, and overall satisfaction with your hobby-grade models.

Long-Term Value and Durability

The robust current ratings and efficient switched-mode BEC are designed for sustained use. Compared to basic, non-adjustable ESCs, the ability to switch modes and its higher current capacity offer better long-term value, as it can handle motor upgrades within its class. The aluminium heatsink contributes to durability by actively managing operational temperatures, which helps protect the electronic components from heat-related failure during extended driving sessions.

User Experience and Control

The confidence gained from having adjustable control modes cannot be overstated. The peace of mind when approaching a steep hill comes from knowing the ESC is in climbing mode, optimised for that specific task. This technical specification directly influences the driving experience, allowing for more ambitious routes and complex manoeuvres with your scale model, enhancing the enjoyment and engagement of the hobby.

Making the Right Choice

If you require a dependable, feature-rich brushed ESC for your smaller-scale RC vehicle that balances power with programmability, this unit presents a compelling option. Its defined specifications for current, voltage, and motor compatibility provide a clear framework for a successful installation. Selecting it means choosing measurable performance—40A of forward drive and a dedicated climbing function—over a basic, non-adjustable alternative, directly enhancing your model's capability.
