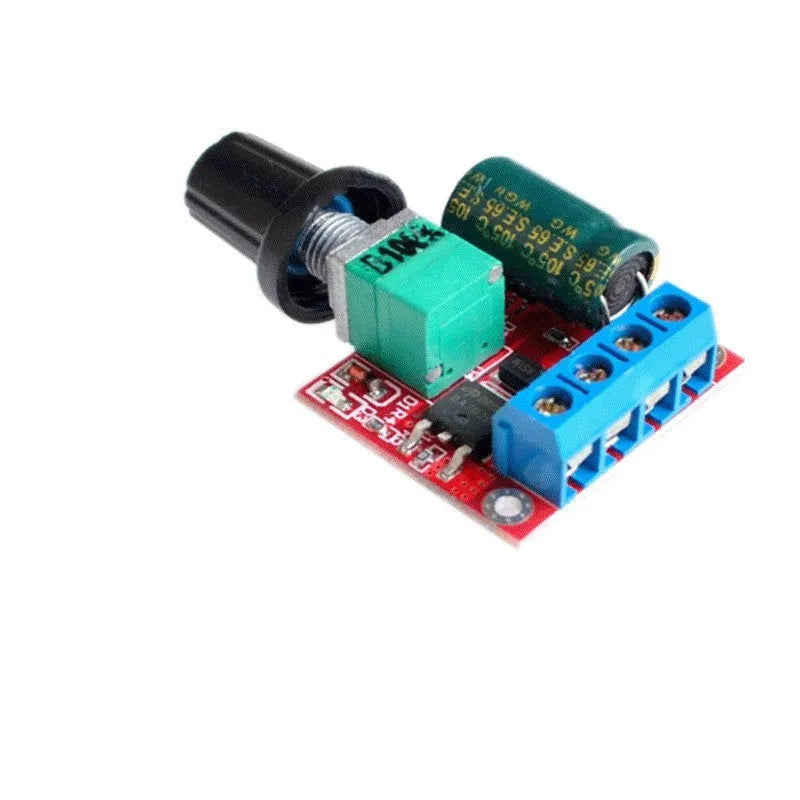

PWM DC Motor Governor: Precise 1%-100% Speed Control for 4.5V-35V Motors with 5A Output

This PWM DC motor governor provides exact speed regulation for DC motors operating between 4.5V and 35V. With adjustable duty cycle from 1% to 100% and 20kHz frequency operation, it delivers smooth motor control while reducing audible noise. The 5A output capacity supports motors up to 90W, making it suitable for various applications from hobby projects to small industrial equipment. The compact 30mm × 26mm × 14mm design allows easy integration into existing systems.

Technical Specifications and Performance Features

The governor's technical specifications determine its performance capabilities across different motor types and applications. Each parameter has been selected to provide reliable operation while maintaining flexibility for various use cases.

Voltage and Current Ratings

Operating from 4.5V to 35V DC, this governor accommodates power sources ranging from small battery packs to larger DC power supplies. The 5A maximum output current allows control of motors drawing up to 90W, calculated using the formula P = V × I at maximum ratings. This current capacity supports most small to medium DC motors commonly used in DIY projects, robotics, and small machinery.

PWM Control Parameters

The 20kHz PWM frequency operates above the audible range for humans, eliminating the whining sound often associated with lower-frequency motor controllers. Duty cycle adjustment from 1% to 100% provides fine-grained speed control, allowing motors to run at very low speeds without stalling. The 7μA static current in standby mode minimizes power consumption when the governor is connected but not actively controlling a motor.

Physical Dimensions and ConstructionPractical Applications and Use Cases

This DC motor governor serves multiple purposes across different fields, from educational projects to professional applications. Its versatile specifications make it adaptable to various scenarios where precise motor control is required.

Educational and Hobby Projects

In educational settings, the governor demonstrates PWM principles while allowing students to control motor speed in robotics projects. The 4.5V minimum operating voltage works with common battery configurations, while the clear relationship between potentiometer position and motor speed provides tangible learning experiences. For hobbyists, the compact size fits into model vehicles, allowing speed control for scale models and remote-controlled projects.

Small Machinery and Equipment

For small machinery requiring variable speed operation, such as conveyor systems or mixing equipment, the 5A output handles typical motor loads. The 20kHz frequency reduces electrical noise that might interfere with sensitive electronics in the same system. Industrial users appreciate the governor's ability to maintain consistent speed under varying loads, thanks to the stable PWM output.

DIY and Home Applications

Home workshop users find the governor useful for controlling fan speeds in ventilation systems or adjusting tool speeds for different materials. The smooth adjustment provided by the 1%-100% duty cycle range allows fine-tuning without abrupt speed changes. When connected to appropriate DC power supplies, the governor can regulate motor speed in various household applications, from adjustable lighting fixtures to custom cooling systems.

Benefits and Value Considerations

The governor provides specific advantages over simpler motor control methods, particularly in applications requiring precise speed regulation or consistent performance.

Long-Term Reliability and Cost EfficiencyUser Experience and Control Precision

Users gain confidence in motor control through the governor's predictable response to potentiometer adjustments. The linear relationship between knob position and motor speed provides intuitive operation, while the 1% minimum duty cycle allows very slow operation for delicate applications. This precision, combined with the 20kHz frequency that eliminates audible noise, creates a smoother user experience compared to lower-frequency controllers.

Implementation Advantages
