Wireless Remote Controlled Projector Lifting Hanger with Ultra-Thin Chassis and 10kg Load

Installing a projector often requires a compromise between optimal screen placement and maintaining a clean room aesthetic. This electric lifting hanger addresses this directly with its low-profile 10cm chassis and remote-controlled height adjustment. Designed for home cinemas, boardrooms, or educational settings, it allows you to raise the projector into its use position and lower it safely out of the way when not needed. The system supports projectors weighing up to 10kg and offers a choice of lift travel to suit various ceiling heights and screen sizes, providing a practical and integrated mounting solution.

Features and Construction

The core design of this lifting hanger focuses on reliable mechanical operation and a discreet physical presence. Its construction is built around key specifications that ensure stable performance for your projection equipment.

Material and Build

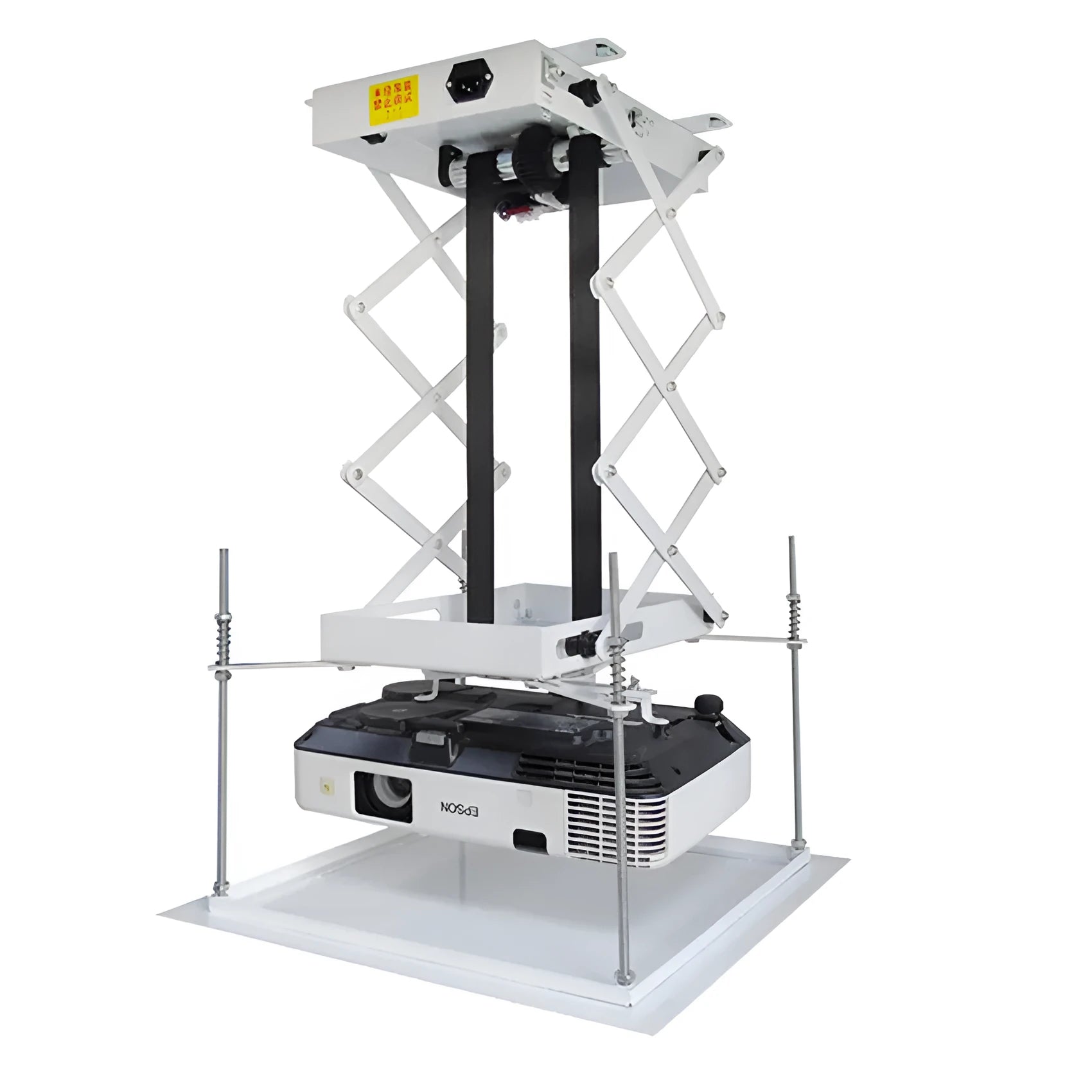

The hanger is constructed from steel, providing the necessary strength to handle the stated 10kg maximum load safely. The chassis itself is designed to be ultra-thin, with a height of just 10cm, which helps it blend seamlessly against the ceiling. This steel build forms the foundation for the 48W synchronous motor, which is responsible for the smooth lifting and lowering action via the remote control.

Size and Practical Fit

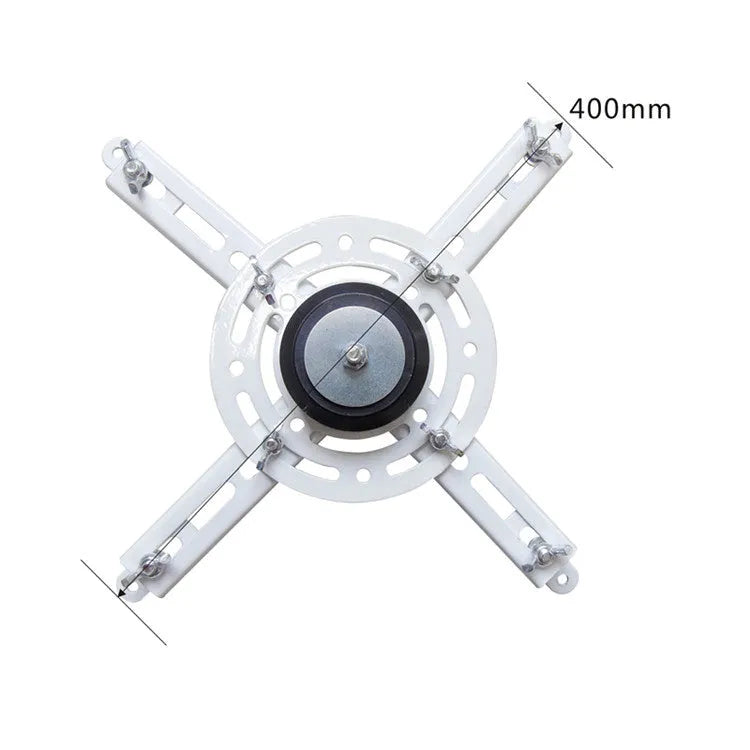

Critical dimensions guide the installation. The bottom plate has an outer diameter of 48x48cm and an inner diameter of 42x42cm, with a suggested ceiling opening of 45x45cm for mounting. When fully extended, the unit has an unfolded length of 18cm, to which you add your projector's own height (up to 70cm is supported). The lifting claw, which holds the projector, adds a further 6cm of height. The total product weight is 10.5kg, which must be factored into the ceiling's load capacity.

Uses and Placement

This product is suited for environments where a projector is used regularly but needs to be stored neatly. The remote operation adds a layer of convenience for frequent adjustments.

Event or Professional Use

In commercial or multi-use spaces like conference rooms, lecture halls, or houses of worship, the ability to retract the projector protects it from dust and accidental damage. The wireless remote allows a presenter or technician to adjust the height easily from anywhere in the room, facilitating quick setup between different events or presentations that may require slight tweaks to the image alignment.

Everyday Home Use

For a dedicated home cinema, the hanger enables a clean, installed look without a bulky mount permanently hanging down. You can raise the projector for movie night and lower it afterwards, keeping the room's sightlines clear. The ultra-thin 10cm chassis is particularly beneficial in rooms with standard ceiling heights, as it minimises visual intrusion.

Benefits and Buying Value

The value of this lifting hanger lies in its specific functionality and the practical problems it solves, rather than generic claims. It offers a dedicated mechanical solution for a common AV setup challenge.

Reuse and Low Maintenance

As a permanent fixture, the hanger is designed for repeated use over time. The synchronous motor and steel construction are chosen for consistent performance. Maintenance is minimal, primarily involving ensuring the mechanical travel path remains clear and that the remote control batteries are functional.

Why Choose This Product

This product is a fit for users who have identified a need for a motorised, adjustable mount. Its key differentiators are the concrete specifications: the choice of 0.8m, 1m, or 1.5m lift travel lets you match the product to your room; the 10kg load capacity clearly states which projectors it can support; and the 10cm chassis height defines how discreet the installation will be. It provides a controlled, integrated alternative to fixed mounts or manual pull-down brackets.
