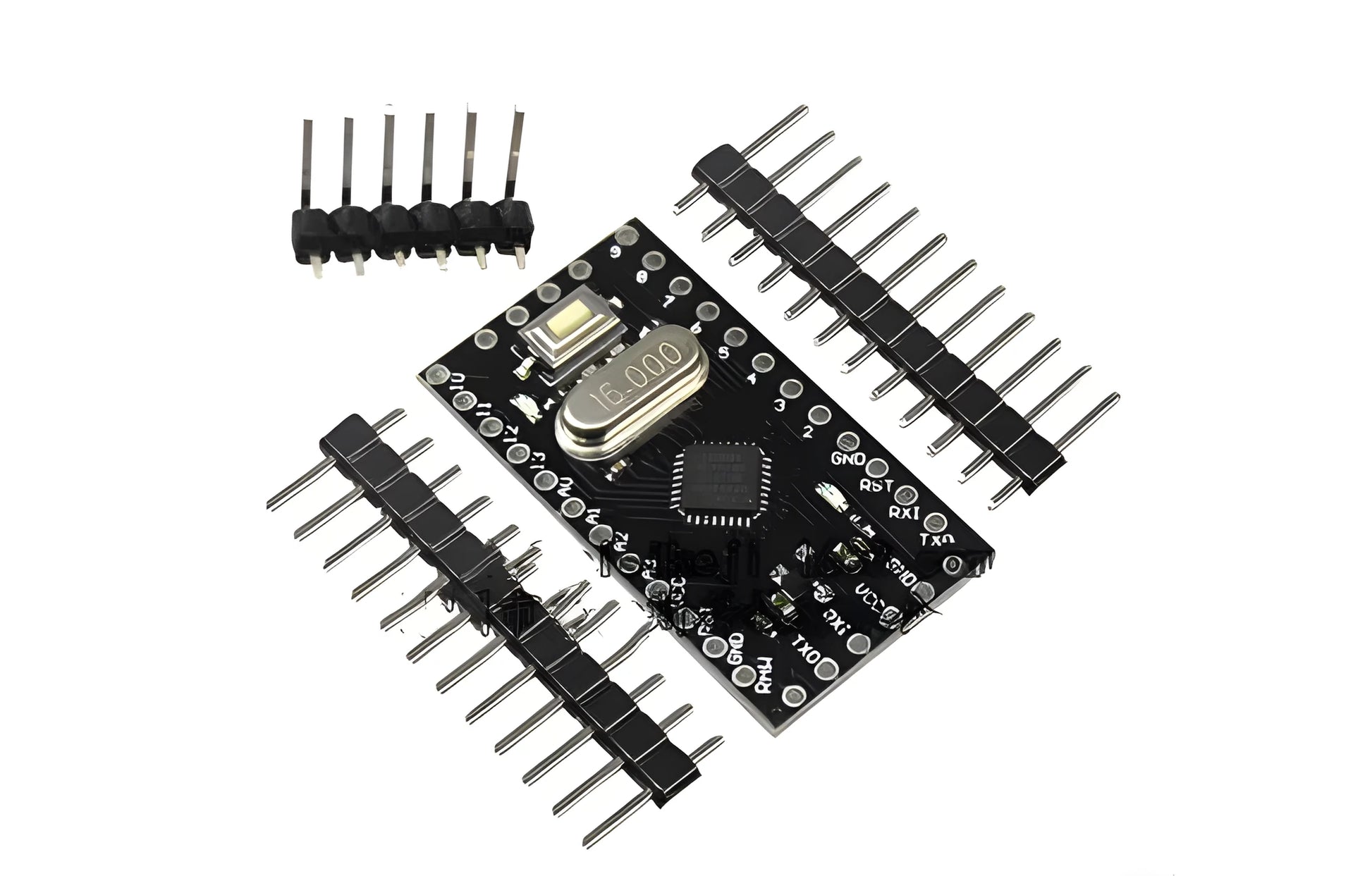

Mini Pro Professional Version: Microcontroller Board with 14 Digital I/O Pins and 8 Analog Inputs for Electronics

The Mini Pro Professional Version is a microcontroller circuit board designed for electronic enthusiasts and professionals. It features 14 digital input/output pins, including 6 that serve as PWM outputs for applications like motor control or LED dimming, and 8 analog inputs for reading various sensors. With a compact size of 33.3mm by 18.0mm, it fits into space-constrained projects while offering robust functionality. Powered by an Atmel Atmega328P-AU microcontroller running at 16MHz, it supports serial downloads and accepts external power from 3.3V to 12V, making it a versatile choice for prototyping and embedded systems.

Features and Technical Specifications

This section details the key features and technical parameters of the Mini Pro Professional Version, highlighting its capabilities for diverse electronic applications.

Digital and Analog Connectivity

The board provides 14 digital input/output ports labelled RX, TX, and D2 through D13, enabling connections to components like buttons, LEDs, or displays. Among these, 6 ports (D3, D5, D6, D9, D10, D11) function as PWM outputs, allowing for variable control such as adjusting brightness or speed. Additionally, 8 analog input ports (A0 to A7) facilitate reading continuous data from sensors, useful for monitoring environmental factors in projects.

Power and Communication Options

Supporting external DC power supplies from 3.3V to 12V, including 9V battery compatibility, the board offers flexibility in power sources for portable or fixed setups. It includes a TTL level serial port transceiver (RX/TX) for communication with computers or other serial devices, essential for programming and data exchange. The 16MHz clock frequency ensures timely processing for real-time applications.

Construction and Durability

Built around the Atmel Atmega328P-AU microcontroller, a component known for its reliability in embedded systems, the board features mounting hole pin headers for secure installation. The compact design at 33.3mm by 18.0mm minimises space usage while maintaining accessibility to ports, and the reset button aids in troubleshooting during development cycles.

Applications and Use Cases

Explore how the Mini Pro Professional Version can be applied in various scenarios, from professional projects to everyday electronics tinkering.

Professional Prototyping

In professional settings, this board is suited for prototyping IoT devices, automation systems, or educational kits. The combination of digital I/O, analog inputs, and PWM outputs allows for creating complex circuits, such as environmental monitors with sensor arrays or motorised gadgets with speed control. Its small footprint makes it ideal for integrating into final products or testing setups where space is limited.

Hobbyist and Educational Projects

For hobbyists and learners, the board offers a hands-on way to explore electronics, with the 8 analog inputs providing a tactile feel for measuring variables like light or temperature. The PWM ports enable creative projects like dimmable lighting or robotic movements, enhancing the learning experience through practical application. The straightforward power options, including battery use, support portable experiments.

Versatility in Electronics

Beyond basic prototyping, the board can be adapted for custom controllers, data loggers, or interactive art installations. Its serial communication capability allows integration with software for data analysis, while the multiple I/O pins support expanding functionality with shields or additional components. This versatility makes it a go-to for diverse electronic endeavours.

Benefits and Value Proposition

Understanding the advantages of the Mini Pro Professional Version helps highlight its role in efficient and reliable electronic development.

Cost-Effective Solution

Compared to larger or more specialised boards, this model provides a cost-effective entry point with essential features like 14 digital I/O pins and 8 analog inputs, reducing the need for extra components. Its durability from the Atmega328P-AU microcontroller and robust construction can lead to long-term savings by minimising replacements in ongoing projects.

User Experience and SatisfactionReasons to Choose This Board

Select the Mini Pro Professional Version for its measurable benefits: the 33.3mm by 18.0mm size saves space, the 6 PWM ports enable precise control, and the 8 analog inputs expand sensor capabilities. Whether for prototyping, education, or custom electronics, it delivers functionality in a compact package, backed by the proven Atmega328P-AU microcontroller.
