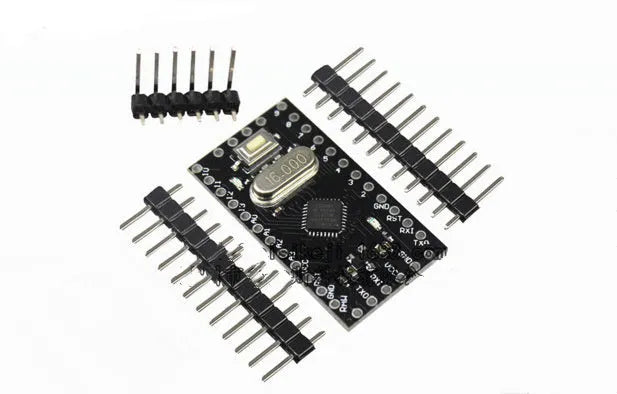

Mini Pro Microcontroller Board with 14 Digital I/O Pins and 8 Analog Inputs for Electronic Prototyping

The Mini Pro microcontroller circuit board provides a compact solution for electronic development, featuring 14 digital input/output pins including 6 with PWM capability for applications like motor speed control. With 8 analog inputs for sensor interfacing and a 16MHz resonator ensuring accurate timing, this board supports everything from simple LED projects to complex automation systems. Its 33.3mm by 18.0mm footprint makes it ideal for space-constrained installations while maintaining full functionality.

Technical Specifications and Performance Features

This section details the specific technical capabilities that make the Mini Pro suitable for both educational and professional electronic projects, focusing on measurable performance metrics rather than generic claims.

Digital and Analog Interface Configuration

The board provides 14 digital input/output pins labelled D2 through D13 plus RX and TX, with each capable of sourcing or sinking up to 40mA. Six of these pins (D3, D5, D6, D9, D10, D11) support Pulse Width Modulation output at 490Hz frequency, allowing precise control of devices like servo motors or LED brightness. The 8 analog input ports (A0 through A7) offer 10-bit resolution, providing 1024 discrete values for accurate sensor measurement.

Processing and Timing Specifications

At the heart of the Mini Pro is an Atmel Atmega328P-AU microcontroller operating at 16MHz clock frequency, providing 32KB of flash memory for program storage and 2KB of SRAM for data. The 16MHz ceramic resonator maintains timing accuracy within ±0.5% across the operating temperature range of 0°C to 70°C. Serial communication operates at TTL levels through the dedicated RX/TX pins, supporting baud rates from 300 to 115200 for flexible connectivity options.

Power Supply and Physical Construction

Power can be supplied through an external DC source ranging from 3.3V to 12V, with the board regulating this to the required 5V operating voltage. Alternatively, a 9V battery can be connected for portable applications. The FR-4 fibreglass PCB measures 33.3mm by 18.0mm with 1.6mm thickness, featuring plated through-hole mounting points at each corner for secure installation. All components are wave-soldered for reliable connections that withstand vibration and thermal cycling.

Practical Applications and Use Scenarios

From educational settings to professional prototyping, the Mini Pro serves multiple roles in electronic development, with specific applications detailed below for different user requirements.

Educational and Learning Environments

In classroom settings, the board's 14 digital pins allow students to connect multiple components simultaneously while learning programming concepts. The 8 analog inputs enable experiments with various sensors, from light-dependent resistors measuring 10kΩ to 1MΩ resistance ranges to temperature sensors with ±1°C accuracy. Teachers appreciate the compact 33.3mm x 18.0mm size that fits standard breadboards while providing full microcontroller functionality for curriculum-aligned projects.

Prototyping and Development Work

Professional developers use the Mini Pro for proof-of-concept work, where the 16MHz clock provides sufficient speed for most control algorithms while the PWM outputs handle motor control with 8-bit resolution. The board's small footprint allows testing in actual enclosures, with the mounting holes enabling secure placement during vibration testing. Many find the serial programming interface through RX/TX pins streamlines development when using standard USB-to-serial adapters available from multiple manufacturers.

Embedded System Integration

For final product integration, the board's 33.3mm x 18.0mm dimensions fit into tight spaces where larger development boards cannot. The external power supply range of 3.3V to 12V DC allows direct connection to various power sources, while the 9V battery option supports portable applications requiring approximately 50mA typical current draw. The Atmega328P microcontroller's 32KB program memory accommodates complex control routines while maintaining the board's cost-effectiveness for volume production.

Benefits and Value Considerations

Beyond basic functionality, the Mini Pro offers specific advantages that justify its selection over alternative solutions, particularly when considering long-term use and application requirements.

Cost Efficiency and Longevity

Compared to larger development boards with similar capabilities, the Mini Pro's compact design reduces material costs while maintaining full functionality. The Atmega328P microcontroller has proven reliability in millions of installations worldwide, with typical operational lifespan exceeding 10 years under normal conditions. The board's support for external 3.3V to 12V power supplies eliminates the need for additional voltage regulation components in many applications, further reducing system cost.

User Experience and Implementation ConfidenceSelection Rationale and Implementation Advantage

Choosing the Mini Pro provides immediate access to a complete development platform measuring just 33.3mm x 18.0mm, with all necessary interfaces for both digital and analog components. The 6 PWM outputs enable sophisticated control applications without additional hardware, while the 8 analog inputs accommodate comprehensive sensor networks. This combination of compact size and full functionality makes it particularly suitable for applications where space constraints previously forced compromises in capability or required custom circuit design.
