MC4 Solar Extension Cable: Single-Core PV Cable with Tinned Copper Conductor in 1M to 10M Lengths

This MC4 connector solar extension cable provides a ready-to-use, pre-terminated link for expanding or connecting photovoltaic solar panel arrays. Designed specifically for the DC side of solar installations, it eliminates the need for field assembly of connectors onto bare cable, saving time and ensuring a reliable, weatherproof connection. The cable is built with a tinned copper wire core, which offers an additional layer of protection against corrosion compared to bare copper, and is insulated and sheathed in a low-smoke, halogen-free (LSHF) compound. This material choice is aimed at improving safety by reducing the amount of smoke and toxic gases emitted if the cable is exposed to fire. Available in two standard conductor sizes (4mm² and 6mm²) and five convenient pre-cut lengths, it offers a practical solution for various spacing and layout requirements within a solar PV system.

Features and Construction

This cable is engineered as a component for professional and DIY photovoltaic installations, focusing on reliable performance and safety-conscious materials. Its construction details are defined to meet the needs of outdoor, DC power applications.

Material and Build

The conductive core is made from tinned copper wire. The tinning process involves coating the copper strands with a thin layer of tin, which helps to retard oxidation and corrosion that can occur over time, especially in environments with moisture or varying temperatures. Both the primary insulation and the outer protective sheath are formed from a low-smoke, halogen-free plastic compound. This type of material is increasingly specified in installations where fire safety is a priority, as it is designed to limit the emission of dense smoke and corrosive halogen gases when exposed to high heat, potentially improving visibility and safety during an evacuation.

Size and Practical Fit

The cable is produced with two nominal cross-sectional areas for the conductor: 4 square millimetres and 6 square millimetres. This allows you to select a cable appropriate for the current requirements of your specific solar circuit. The overall cable diameter ranges from 2.5 mm to 6 mm, depending on the chosen conductor size and insulation thickness. The insulation itself is manufactured to a reference standard thickness, ensuring consistent electrical isolation. To accommodate different installation layouts, the cable is supplied in five fixed lengths: 1 metre, 2 metres, 3 metres, 5 metres, and 10 metres, allowing you to choose the most suitable option to minimise excess cable while reaching between panels or to the inverter.

Uses and Placement

This product has a clear and dedicated application within renewable energy systems, specifically designed for the interconnection of solar PV components.

Event or Professional Use

For professional solar installers, this pre-terminated MC4 cable serves as a time-saving component. It is ready for immediate use in connecting multiple solar panels in series or parallel strings, extending array runs, or making final connections to combiner boxes or inverters. The availability of specific lengths helps in planning a neat installation with reduced cable waste. The voltage rating of up to 35 kV indicates its suitability for medium and low voltage power cable applications, covering the typical operating voltages found in residential and commercial solar arrays.

Everyday Home Use

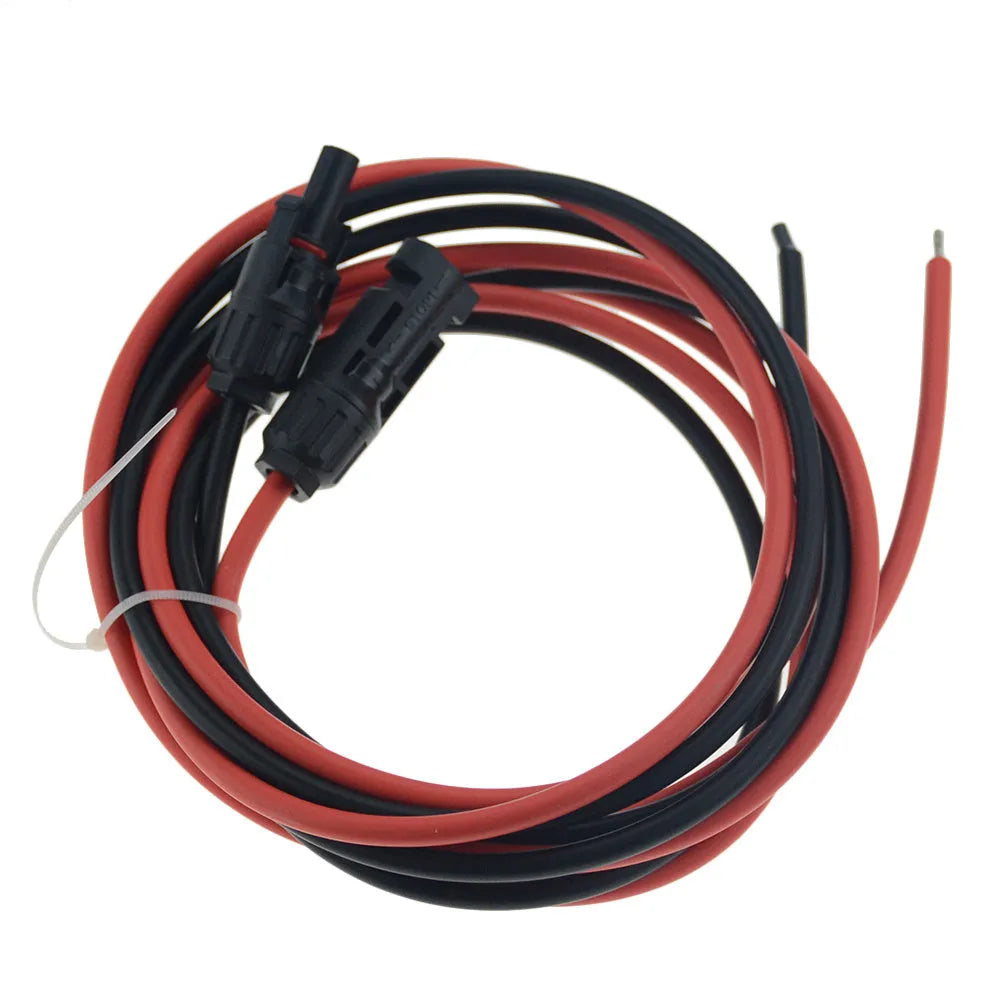

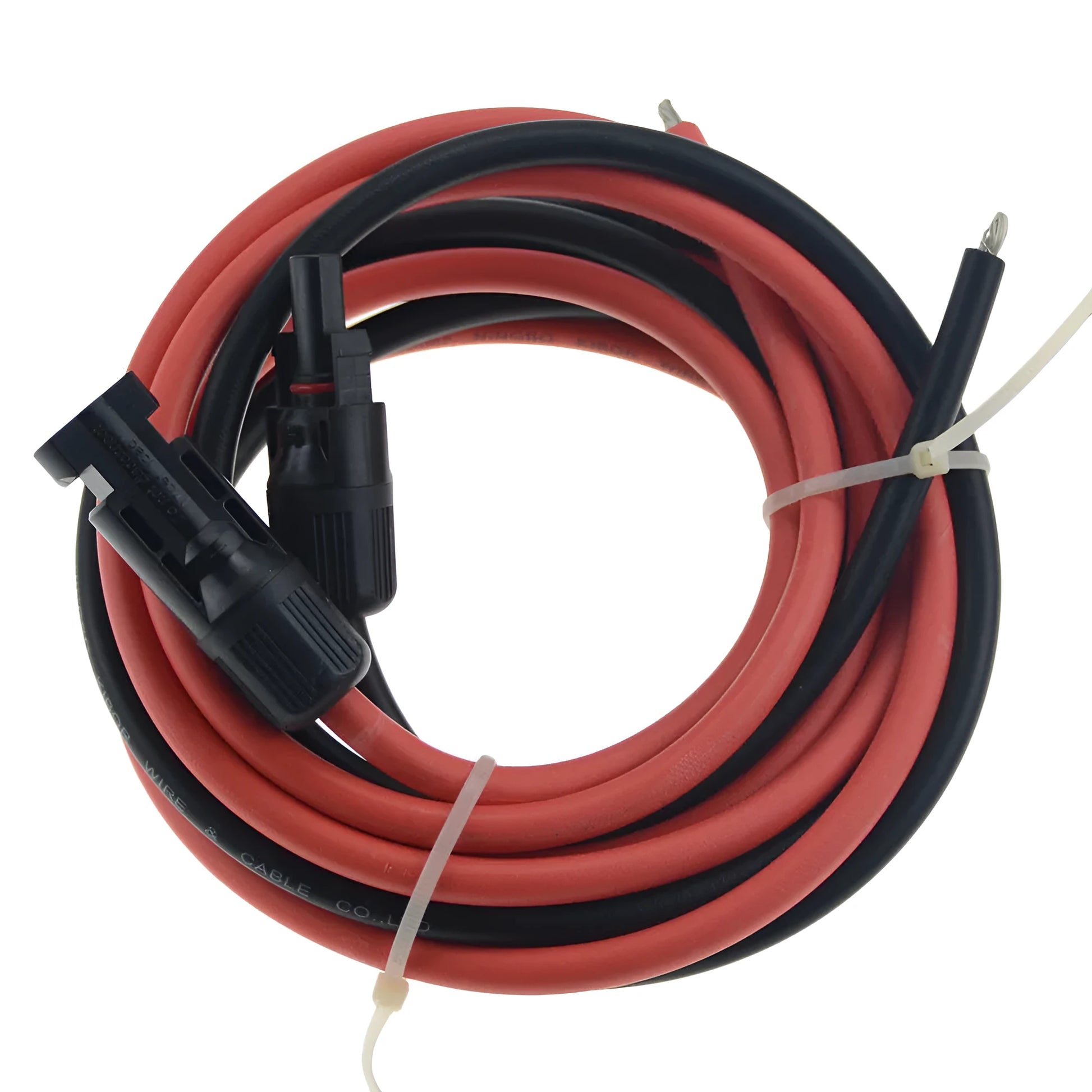

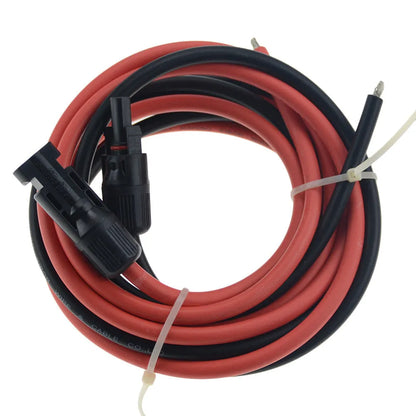

For DIY solar enthusiasts or homeowners adding to an existing system, this cable simplifies the expansion process. The pre-attached MC4 connectors (male and female) are designed for a secure, waterproof snap-fit connection, reducing the complexity and tooling required compared to crimping your own. The choice between black and red sheathing provides a clear visual indicator for positive and negative polarity, aiding in correct and safe system wiring according to standard colour conventions.

Benefits and Buying Value

The value of this cable lies in its specific design for solar applications, the safety features of its materials, and the convenience of pre-determined lengths.

Reuse and Low Maintenance

As a durable cable assembly with weather-resistant MC4 connectors, it is built for long-term outdoor deployment as part of a fixed solar installation. The tinned copper core contributes to long-term conductivity stability. The LSHF materials do not require any special maintenance but are selected for their enduring safety characteristics within the installation environment.

Why Choose This Product

This cable offers a focused solution for solar PV extensions. The key decision points are the conductor size (4mm² or 6mm²), which should be chosen based on the system's current capacity, and the length, which should be selected to fit the physical gap you need to bridge. The combination of tinned copper and low-smoke halogen-free materials provides a practical level of performance and safety consideration for a permanent renewable energy installation.
