Lithium Battery Charging and Protection Integrated Board with 4.2V Cut-off and 3A Overcurrent Protection

This lithium battery charging and protection integrated board provides comprehensive battery management in a compact 2.6cm by 1.7cm footprint. Designed for 5V input voltage compatibility, it delivers precise charging regulation with 4.2V ±1% cut-off voltage to prevent overcharging damage. The board incorporates multiple protection features including 2.5V over-discharge protection and 3A overcurrent protection, ensuring lithium batteries operate within safe parameters throughout their charging and discharging cycles.

Technical Specifications and Circuit Protection Features

The integrated board combines charging functionality with multiple protection mechanisms in a single circuit solution. Each component has been selected to provide reliable performance while maintaining the board's compact dimensions, making it suitable for various electronic applications where space is limited but battery safety cannot be compromised.

Voltage Regulation and Charging Control

The board's charging circuitry maintains precise voltage control throughout the charging process. With a charging cut-off voltage of 4.2V ±1%, it ensures lithium batteries reach their optimal charge level without exceeding safe voltage limits. The 1000mA maximum charging current allows for efficient battery replenishment while the 5V input voltage makes it compatible with standard USB power adapters and power banks commonly available in the UK market.

Protection Circuit Performance Data

Multiple protection layers work together to safeguard both the battery and connected devices. The 3A overcurrent protection current activates when current draw exceeds safe levels, preventing potential damage from short circuits or faulty components. Simultaneously, the 2.5V battery over-discharge protection voltage monitors battery voltage during discharge cycles, automatically disconnecting the load before the battery reaches damagingly low voltage levels that could reduce its lifespan.

Board Construction and Component Quality

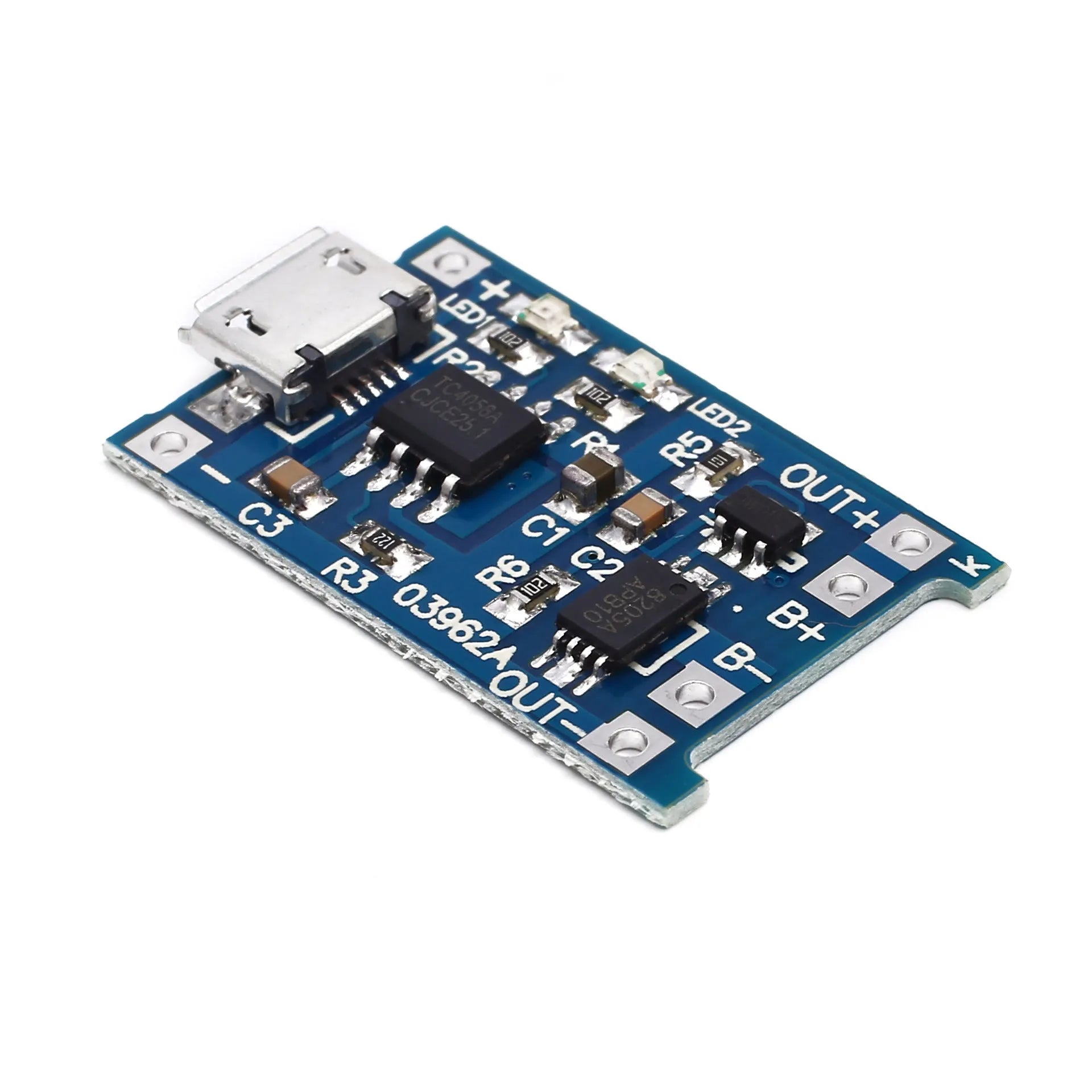

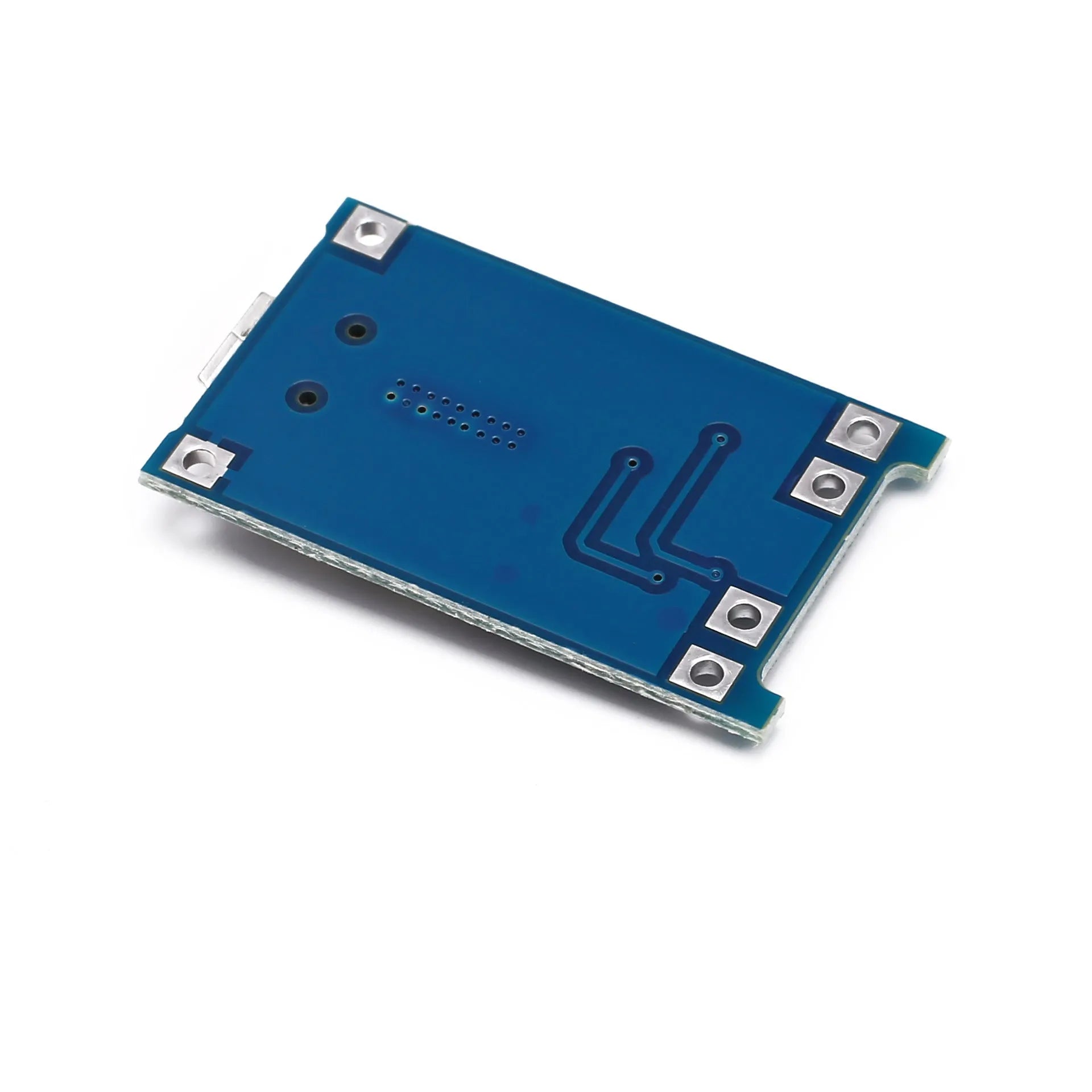

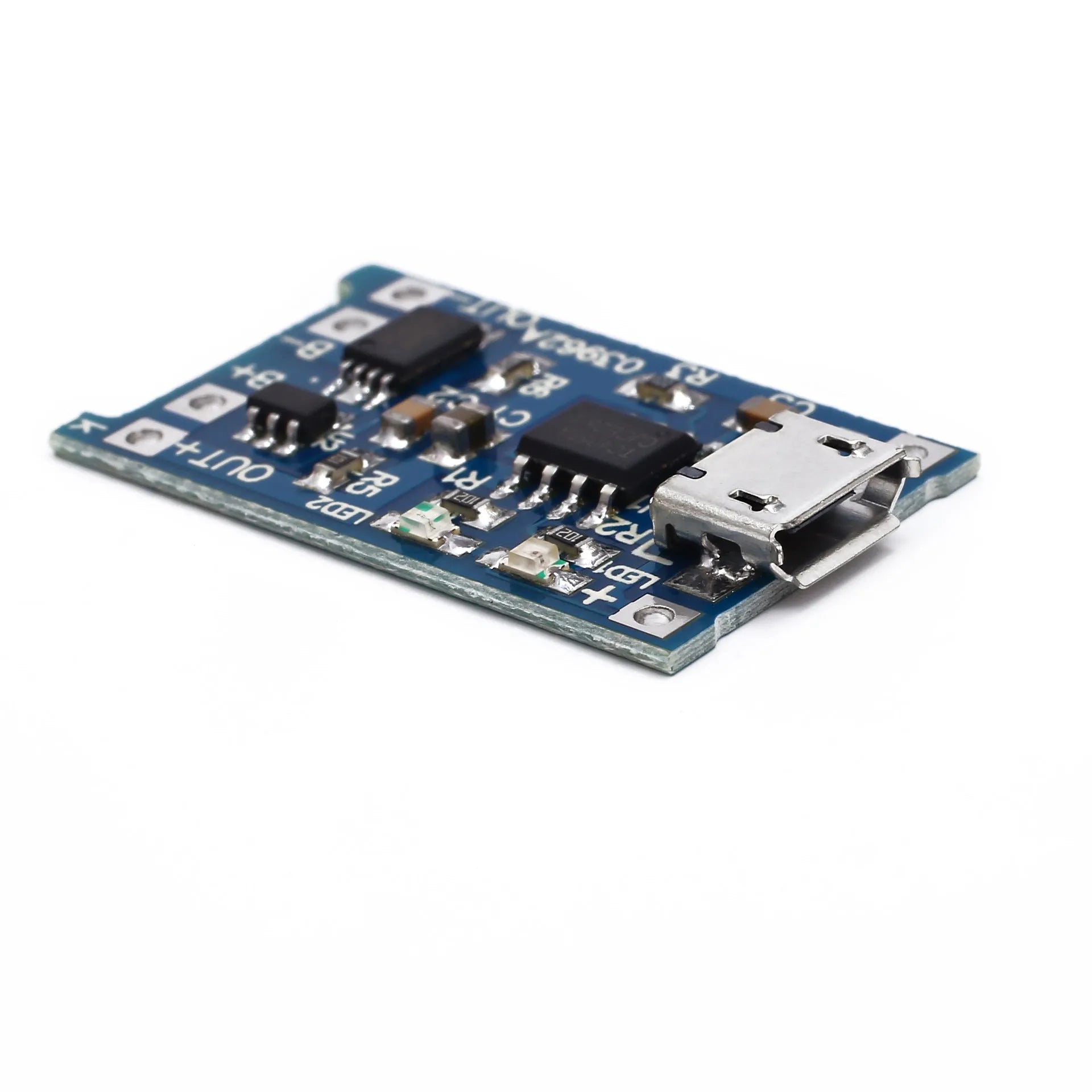

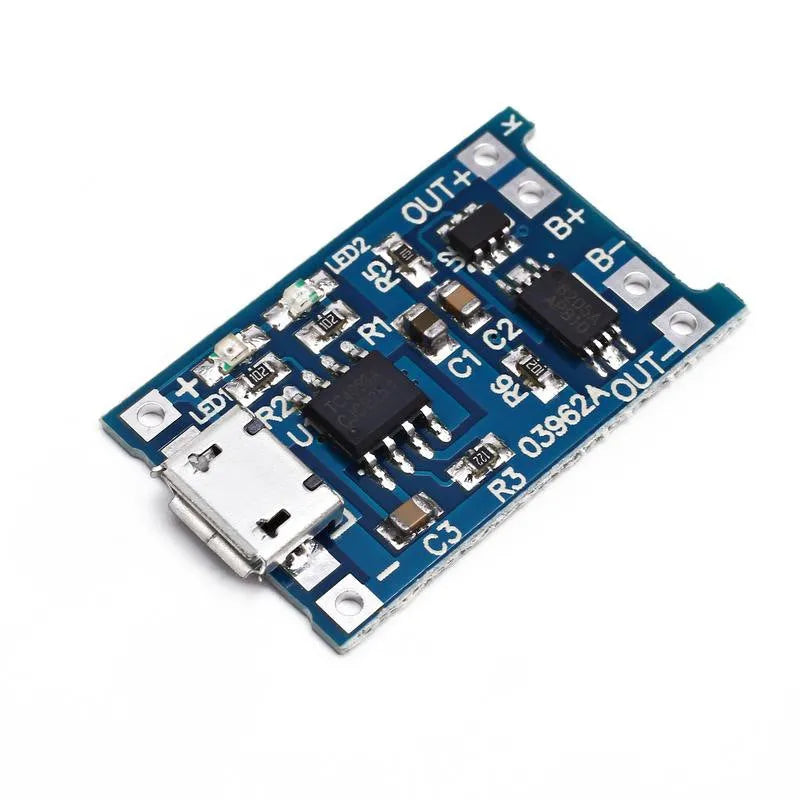

Measuring 2.6cm by 1.7cm, the board utilises surface-mount technology to maximise component density while maintaining reliability. The blue PCB colour provides clear visual identification during installation and troubleshooting. Copper traces are appropriately sized to handle the 3A protection current without excessive heating, while the component layout has been optimised for efficient heat dissipation during continuous operation.

Practical Applications and Usage Scenarios

This integrated board finds application in various electronic projects and devices where lithium battery management is required. Its compact size and comprehensive protection features make it suitable for both prototyping and production applications, providing reliable battery management without requiring extensive circuit design expertise.

Professional Electronics Development

Electronics engineers and product developers can incorporate this board into prototypes and finished products requiring lithium battery management. The 2.6cm by 1.7cm dimensions allow integration into space-constrained designs, while the comprehensive protection features reduce development time compared to designing custom protection circuits. The board's standard 5V input makes it compatible with existing power supply designs, simplifying integration into larger systems.

DIY Electronics and Hobby Projects

Makers and electronics hobbyists will appreciate the board's straightforward implementation in personal projects. The tactile experience of connecting the 5V input and battery terminals provides immediate feedback about proper installation, while the blue PCB offers clear visual contrast against other components during assembly. Users can focus on their project's core functionality rather than battery management complexities, knowing the protection features are handling safety considerations.

Educational and Training Applications

Educational institutions can utilise this board to demonstrate lithium battery management principles in practical settings. The visible components and clear labelling allow students to understand protection circuit operation, while the measurable specifications (4.2V cut-off, 3A protection) provide concrete data for analysis and comparison with theoretical models of battery behaviour and protection requirements.

Performance Benefits and Operational Advantages

The integrated approach to battery management provides multiple benefits compared to separate charging and protection circuits. By combining functions in a single 2.6cm by 1.7cm board, it reduces component count and simplifies system design while maintaining comprehensive battery protection throughout charging and discharging cycles.

Long-term Value and Reliability

User Experience and Implementation Confidence Implementing this board provides assurance that lithium batteries are being managed safely, particularly important given the potential risks associated with improper lithium battery handling. The knowledge that multiple protection layers are active—from the 4.2V charging cut-off to the 3A current limitation—allows users to focus on their application's primary function rather than constantly monitoring battery status for safety concerns.

Integration and Implementation Considerations

When implementing this board, consider its 5V input requirement and ensure your power source can provide adequate current for both charging and system operation. The compact 2.6cm by 1.7cm dimensions make placement flexible, but ensure adequate ventilation if operating near the maximum 1000mA charging current. Regular verification of connections maintains reliable operation of all protection features throughout the board's service life.
