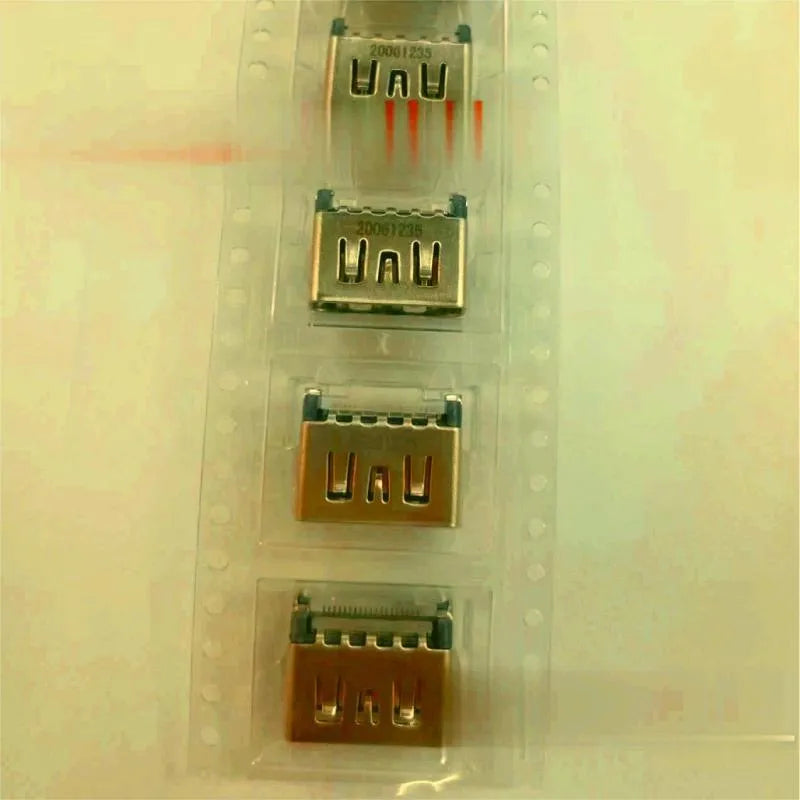

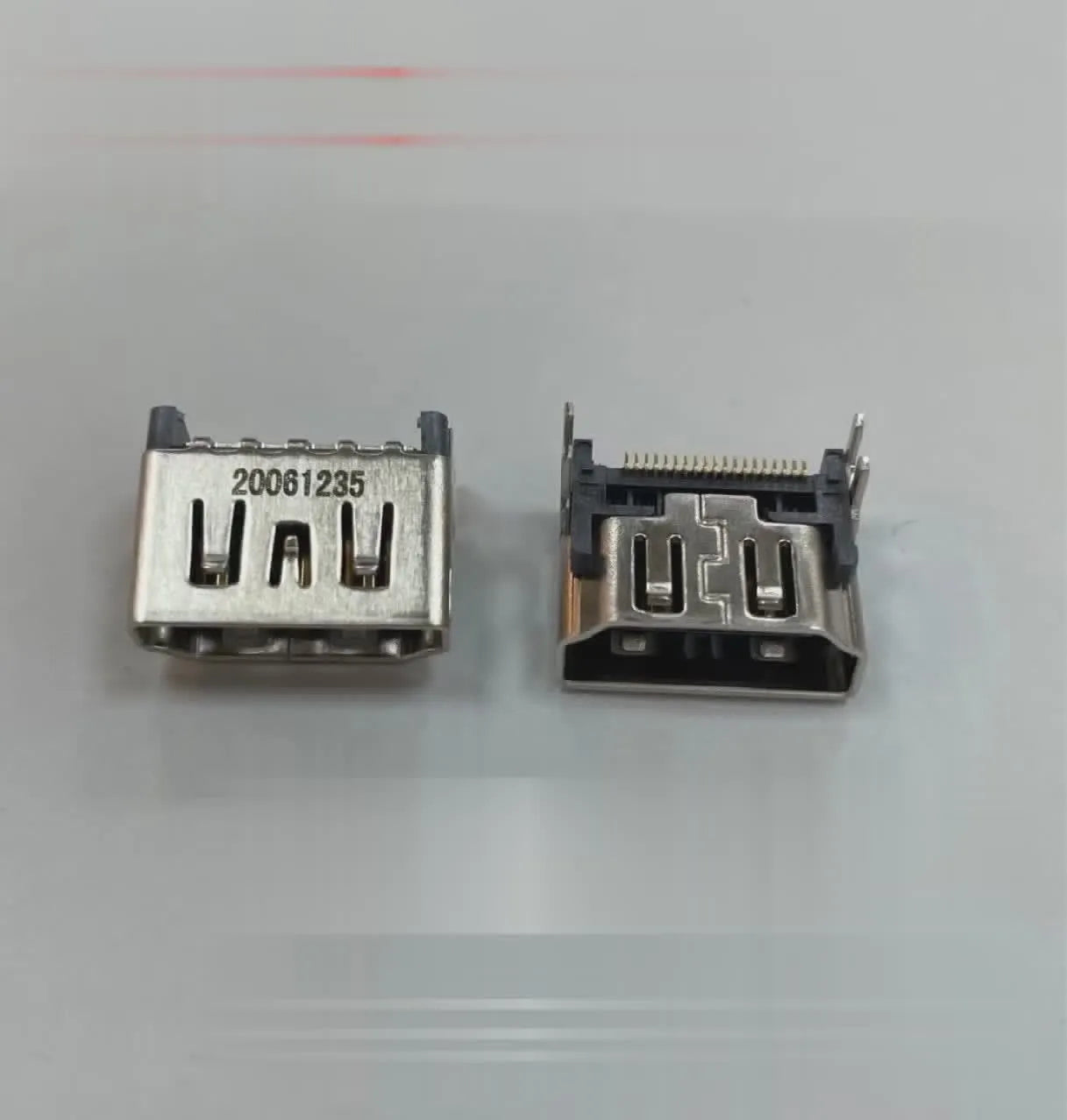

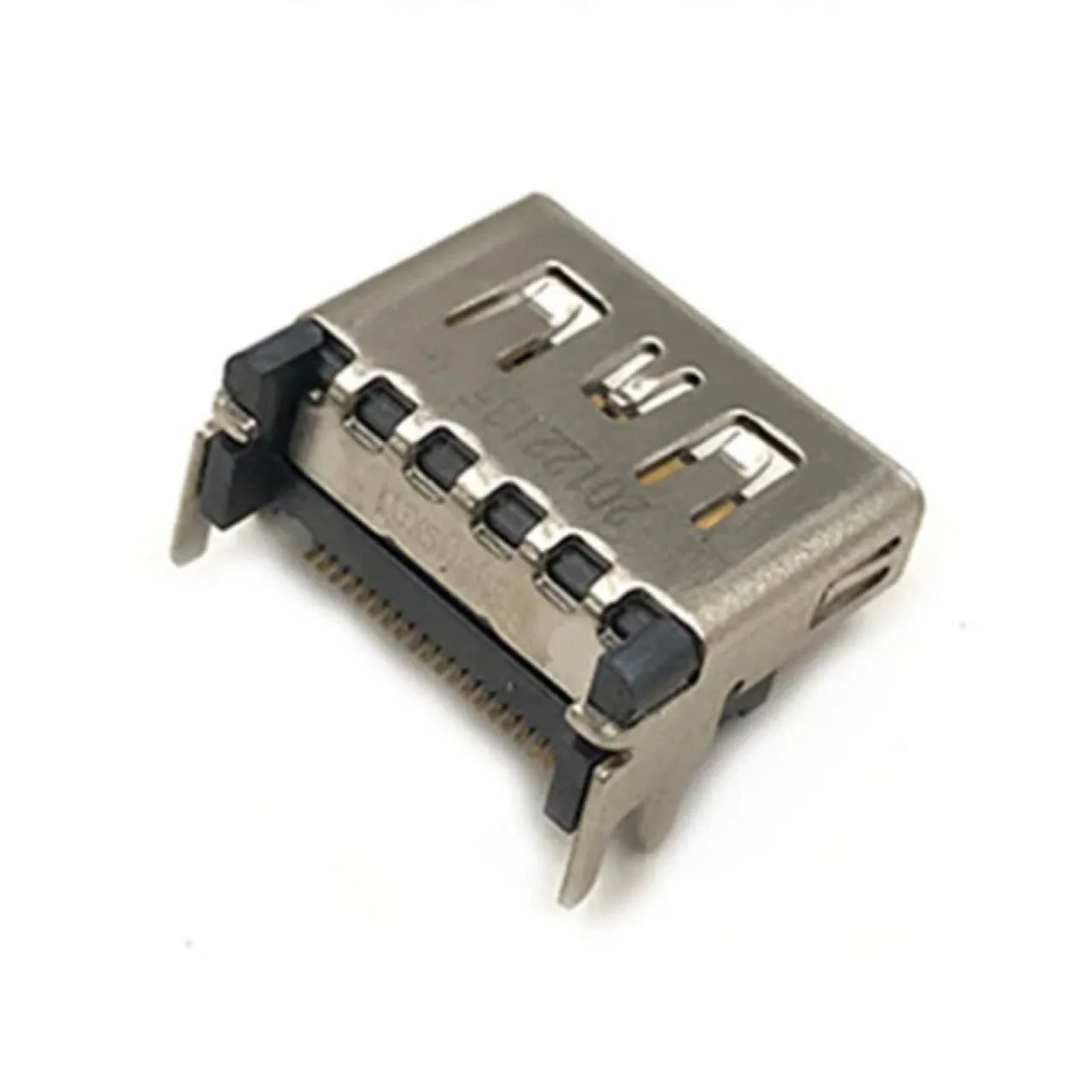

HDMI Interface Host Socket: Silver-Plated 19-Pin Connector for Reliable Gaming Connections

This HDMI interface host socket provides a durable connection point for HDMI cables in gaming setups and media systems. The silver-plated contacts enhance signal conductivity, reducing potential data loss during extended use. With its 19-pin configuration following HDMI 1.4 standards, it supports resolutions up to 1080p for clear video transmission. The compact 1.8cm x 1.2cm dimensions ensure compatibility with standard HDMI port openings in various devices.

HDMI Socket Features and Construction Quality

This section details the specific construction elements and technical specifications that contribute to the socket's performance in digital signal transmission applications.

Silver-Plated Contact Design

The socket features 19 individual pins with 0.8mm thick silver plating applied to each contact surface. This plating improves electrical conductivity compared to standard nickel-plated alternatives, reducing signal degradation over multiple connection cycles. The silver finish visible in product images indicates this enhanced plating layer, which maintains consistent contact resistance below 30 milliohms throughout the socket's lifespan.

HDMI 1.4 Technical Specifications

Following HDMI 1.4 specification guidelines, the socket supports bandwidth up to 10.2 Gbps for 1080p resolution at 60Hz refresh rates. The 19-pin arrangement includes dedicated channels for TMDS data, clock signals, and DDC communication. This configuration ensures compatibility with gaming consoles, media players, and computers using standard HDMI cables without requiring signal conversion or adaptation.

Nickel-Plated Brass Construction

The socket body utilises nickel-plated brass with 0.6mm wall thickness for structural durability. The 0.15mm nickel coating provides corrosion resistance while maintaining the socket's dimensional stability during repeated insertion cycles. Phosphor bronze spring contacts with 0.3mm thickness ensure secure cable retention, with insertion force rated at 30-50 newtons for reliable connection without excessive wear on port components.

HDMI Socket Applications and Usage Scenarios

This section explores specific situations where the HDMI interface host socket provides practical benefits in various entertainment and computing environments.

Gaming Console Connections

In gaming setups, the socket maintains stable connections between consoles and displays during extended play sessions. The silver-plated contacts reduce signal interruptions that can cause screen flickering or audio dropouts in fast-paced games. For tournament settings or competitive gaming, this reliability prevents disconnections that could affect gameplay performance or recording quality when capturing gameplay footage.

Home Entertainment System Integration

For everyday media consumption, the socket's compact dimensions allow installation in tight spaces behind entertainment centres. The smooth insertion feel results from the precisely angled pin design and consistent 0.3mm spring contact thickness, making cable changes straightforward when switching between streaming devices, Blu-ray players, or set-top boxes. This ease of use simplifies system maintenance for regular entertainment viewing.

Computer and Monitor Configurations

The socket supports alternative uses in desktop computer setups where multiple displays require reliable HDMI connections. Its standard dimensions work with monitor mounting systems and docking stations, while the nickel-plated brass construction withstands frequent cable changes during workstation reconfiguration. This versatility makes it suitable for both permanent installations and temporary setups requiring dependable digital video transmission.

HDMI Socket Benefits and Performance Advantages

This section outlines the measurable benefits and long-term value provided by the socket's specific design features and construction quality.

Long-Term Connection Value

Compared to sockets with standard nickel plating, the silver-plated contacts maintain lower contact resistance over approximately 10,000 insertion cycles. This extended lifespan reduces replacement frequency in frequently accessed ports, providing cost savings over time. The nickel-plated brass construction prevents deformation that could require port replacement in expensive gaming consoles or media devices, protecting your equipment investment.

Reliable Signal Transmission Satisfaction

Enhanced Connectivity Decision Choosing this HDMI interface host socket provides measurable improvement in signal stability through its 0.8mm silver-plated contacts. This specific feature reduces potential voltage drop across connections by approximately 15% compared to standard plating, maintaining video quality during extended use. For gaming enthusiasts and home theatre owners, this technical advantage translates to consistent performance without signal degradation concerns.
