Owon HDS272 Handheld Oscilloscope: Portable 40-70MHz Tool for Auto Repair & Diagnostics

For technicians, hobbyists, and automotive engineers who require diagnostic capabilities away from a fixed workbench, the Owon HDS272 handheld oscilloscope presents a practical solution. This compact digital instrument combines core measurement functions with a highly portable form factor, enabling waveform analysis directly at the site of a fault—be it in a vehicle, industrial machinery, or in the field. Its specified bandwidth of 40-70MHz and 250MSa/s sampling rate cater to a wide range of common electronic signal troubleshooting tasks, from sensor validation to communication bus checking. The inclusion of a comprehensive accessory kit, all housed within a dedicated carry bag, means the unit is operational immediately upon unboxing, removing the need for separate procurement of probes and connectors.

Features and Construction

The HDS272 is defined by its integration of key oscilloscope specifications into a body designed for handheld use. This section details its measurable performance characteristics and the physical build that supports its mobile application.

Material and Build

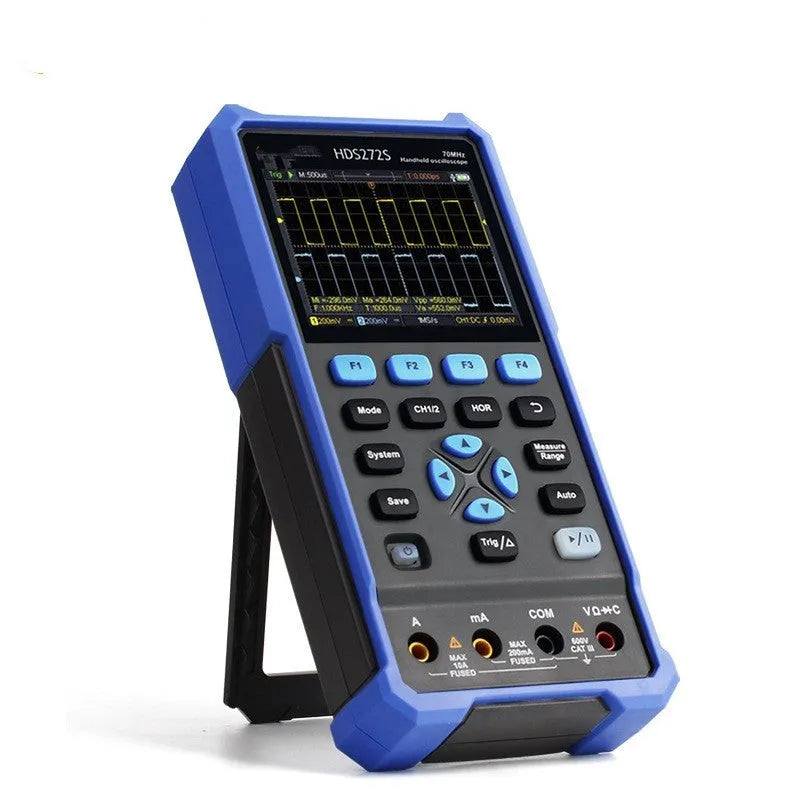

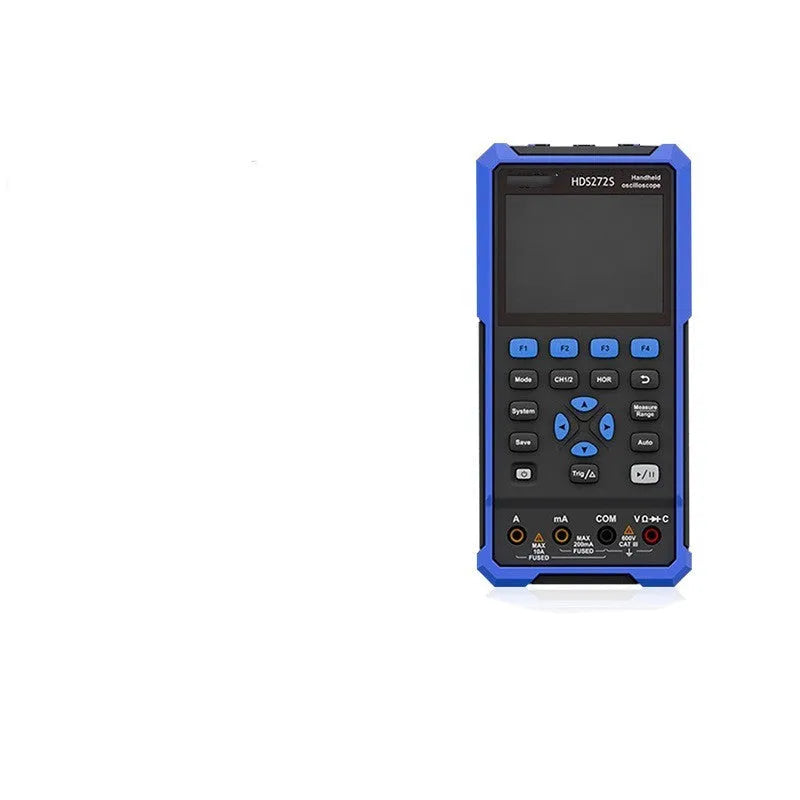

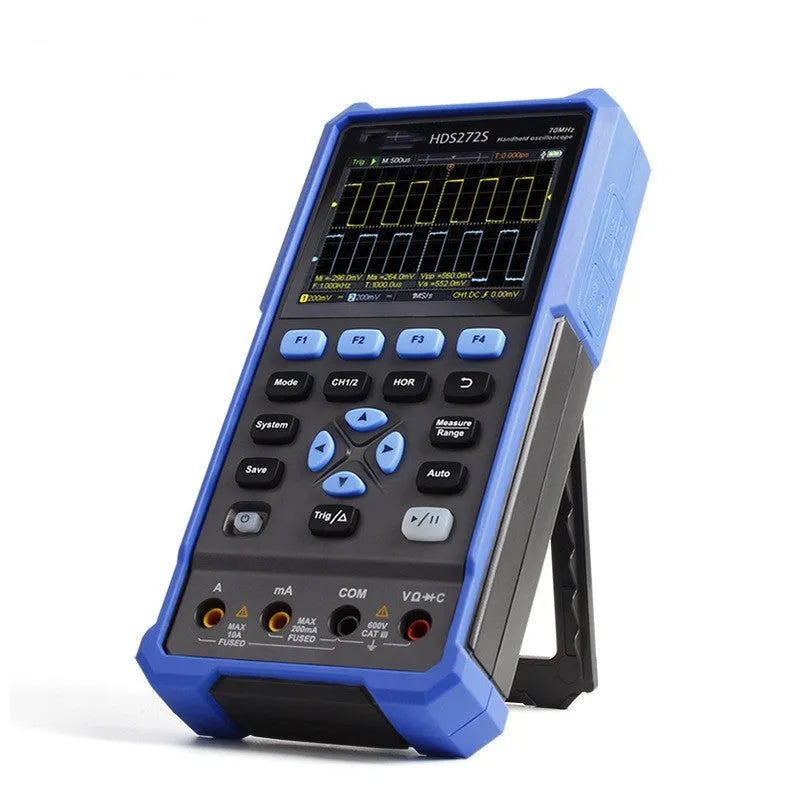

While the specific materials used for the casing are not detailed in the source, the construction focuses on creating a robust, handheld unit. The design incorporates the display, controls, and input channels into a single body measuring 198mm long, 96mm high, and 38mm deep. This consolidated build eliminates the bulk of traditional bench oscilloscopes and is complemented by a supplied portable bag for transport and storage. The emphasis is on creating a self-contained tool where all essential components—the main unit, probes, and adapters—are provided as a coordinated set.

Size and Practical Fit

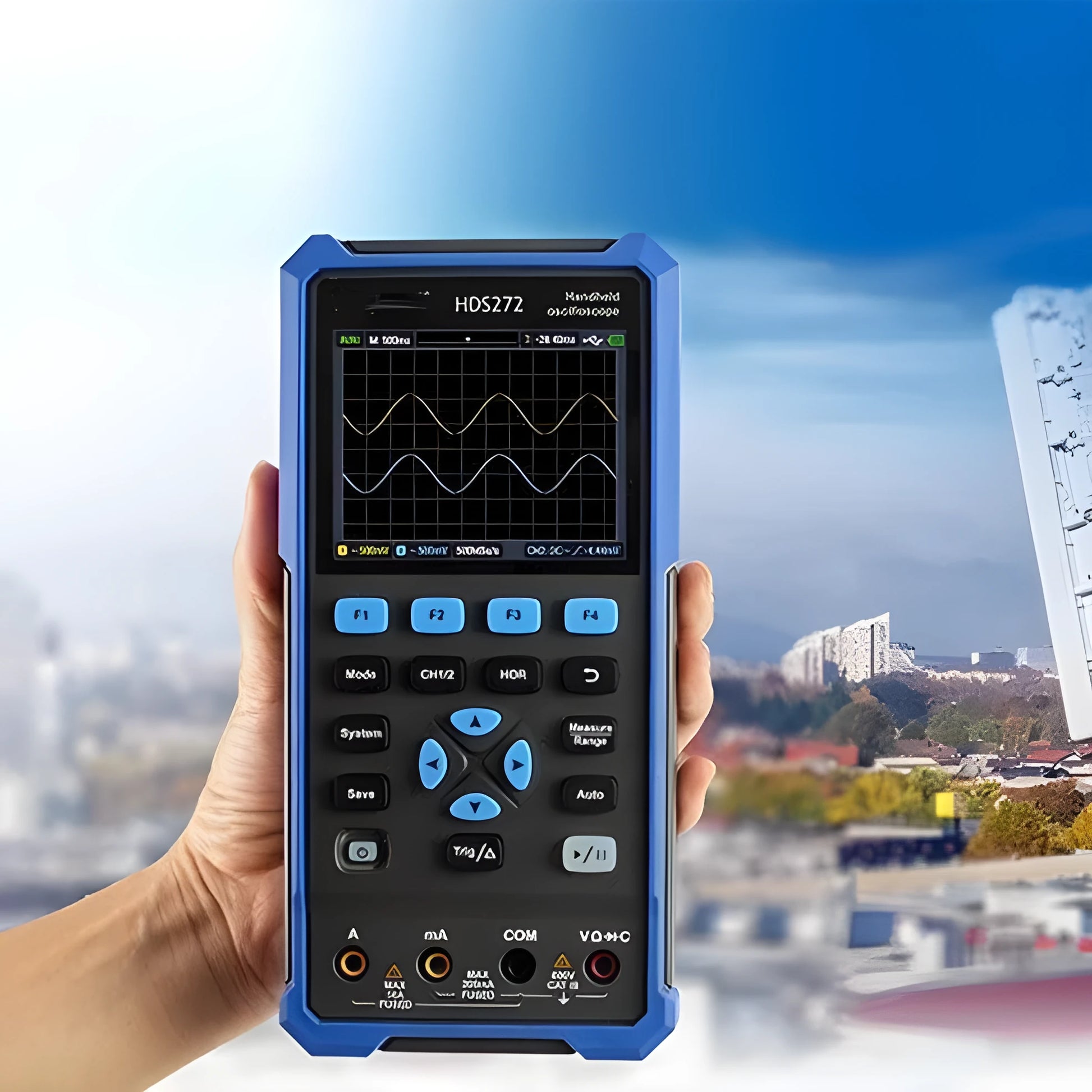

The dimensions of 198mm x 96mm x 38mm are central to its utility. This size allows the oscilloscope to be comfortably held in one hand or placed on a small, crowded work surface, such as an automobile engine bay or a service bench littered with parts. Its profile is slim enough to fit into the included carry bag alongside its accessories, facilitating easy organisation and protection. The practicality of this form factor is specifically geared towards scenarios where space is limited and mobility is paramount, making it a logical choice for field service engineers and auto repair technicians.

Uses and Placement

The instrument's specifications and portable nature direct it towards specific professional and technical environments. Its use cases extend from specialised repair work to broader educational or hobbyist applications.

Event or Professional Use

The primary professional application indicated is in automotive repair and mobile diagnostics. The 40-70MHz bandwidth is suitable for analysing various automotive sensor signals, ignition waveforms, and CAN bus communications. The high waveform capture rate of 10000 wfms/s increases the likelihood of catching intermittent glitches that can be elusive with slower instruments. Technicians can use the supplied BNC-to-crocodile clip adapters and probes to quickly connect to test points within a vehicle's electronic control units or wiring harnesses, performing diagnostics without needing to remove components and bring them to a workshop bench.

Everyday Home Use

For electronics hobbyists, students, or makers working on projects at home, this oscilloscope offers an accessible entry into waveform measurement without the cost and space requirements of a full-sized unit. Its portability means it can be easily moved between a workbench and a prototyping area, or even used for troubleshooting household electronics. The complete accessory kit ensures users have the necessary leads and adapters to start measuring signals on microcontrollers, audio circuits, or power supplies immediately, supporting learning and project development in a home workshop environment.

Benefits and Buying Value

The value proposition of the HDS272 hinges on its combination of portability, ready-to-use completeness, and specification-suitable performance for its intended tasks.

Reuse and Low Maintenance

The product is designed for repeated use across multiple jobs. Its handheld nature implies it is built to withstand the rigours of being transported and used in different locations. Maintenance is simplified by the durable construction and the protection offered by the carry bag. The included correction pen allows for periodic calibration to maintain measurement accuracy, a process detailed in the manual. The use of standard USB connectivity for power and potential data transfer also contributes to long-term usability with common cables.

Why Choose This Product

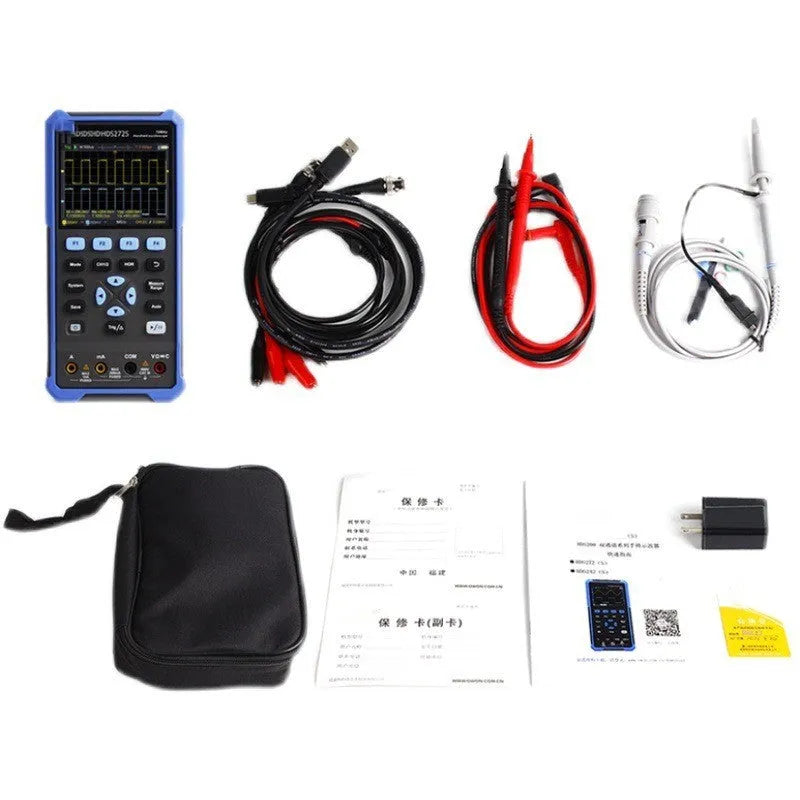

Choosing this oscilloscope is justified by a clear need for a mobile measurement tool. It stands out for buyers who require a specified bandwidth of 40-70MHz and a fast sampling rate in a package that is not tethered to a mains outlet. The decisive differentiator is the fully inclusive kit—oscilloscope, probes, multimeter probe, adapters, bag, and manual—which provides immediate utility and represents a consolidated purchase. For auto repair, field service, or educational settings where space and portability are constraints, this combination of specs, size, and completeness offers a targeted, practical solution.
