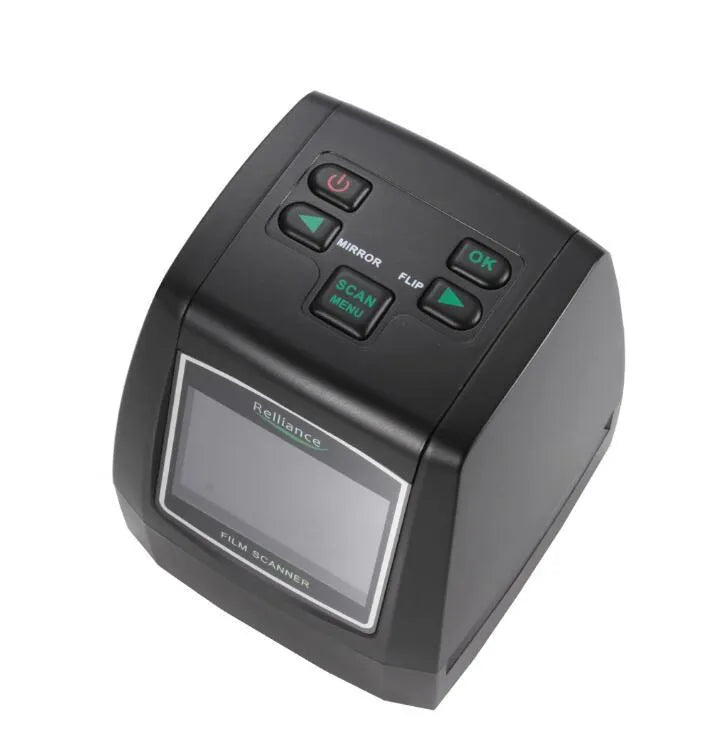

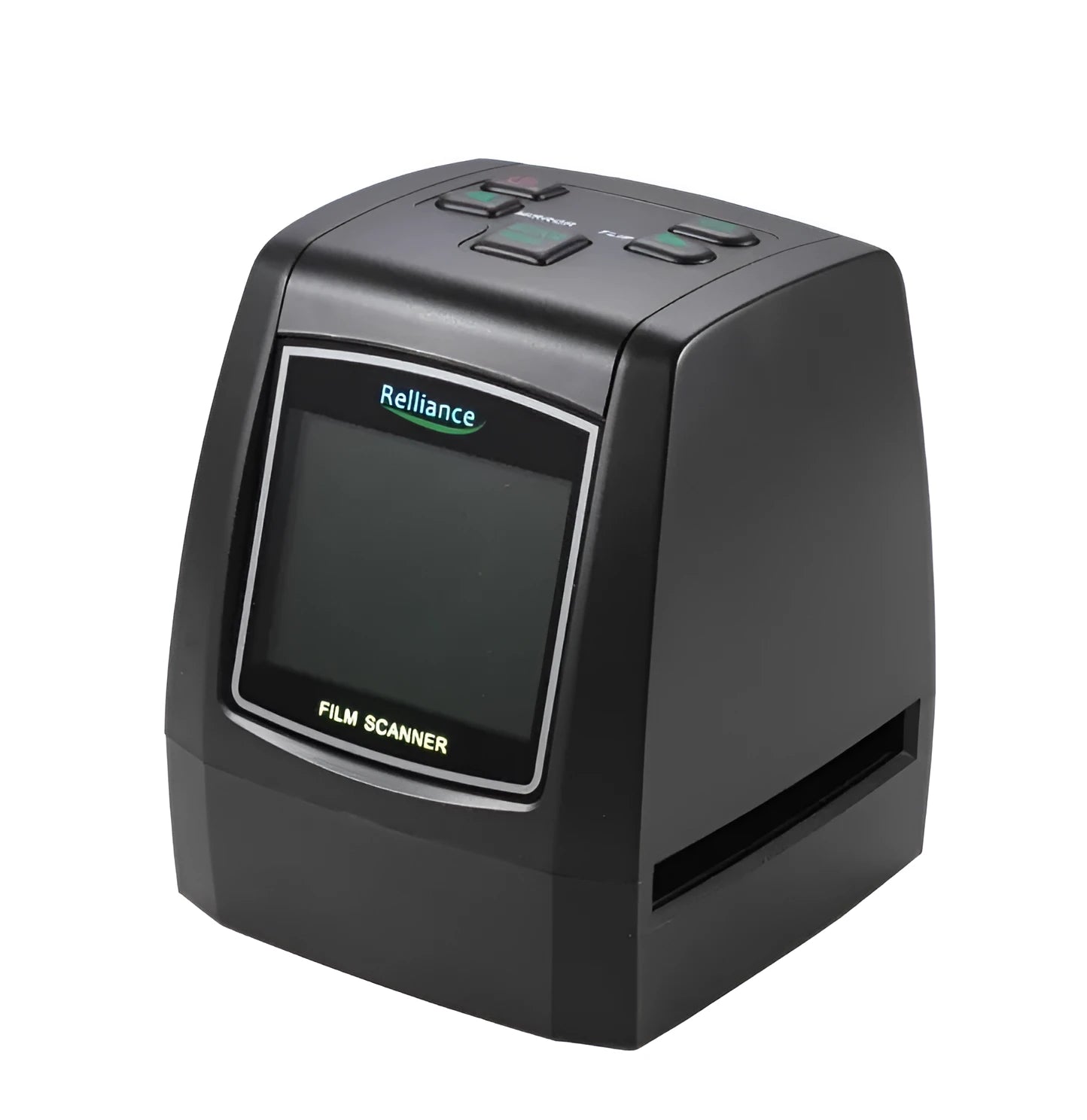

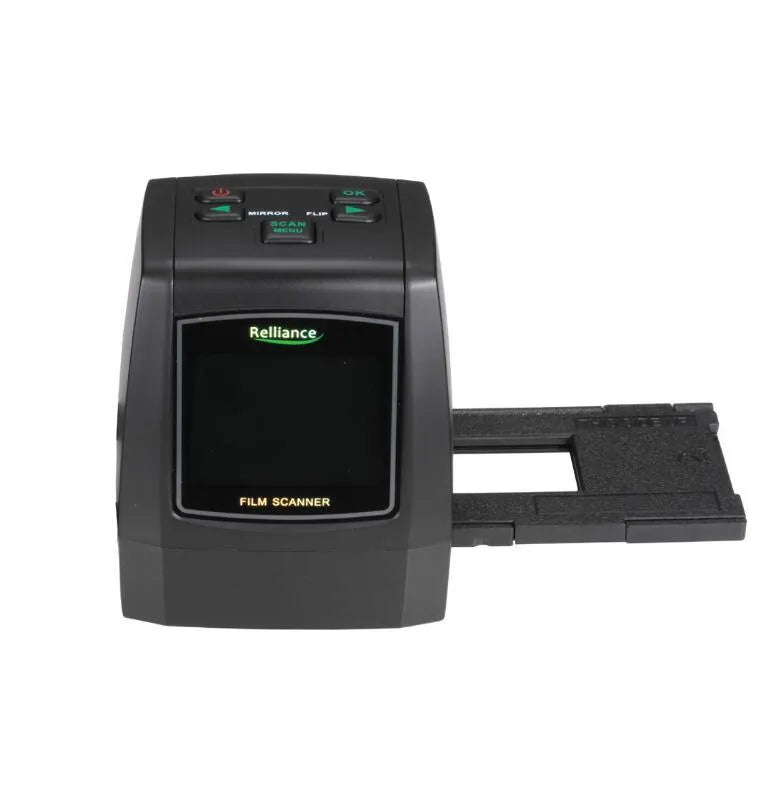

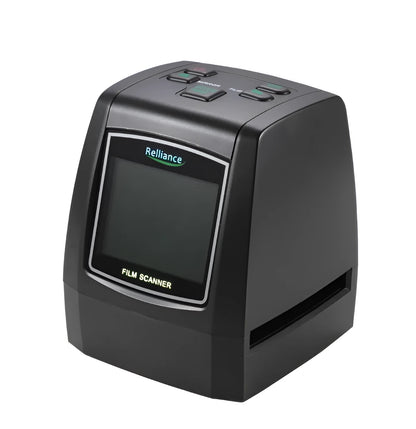

14 Megapixel Film Scanner and USB MSDC Photo Slide Viewer for Converting Multiple Film Formats

This film scanner and USB Mass Storage Device provides a practical solution for digitising physical film collections without requiring complex computer setups. Designed to handle multiple film formats including 135, 126KPK, 110, and Super8 films, as well as monochrome film and slides, it converts these analogue media directly to digital JPEG files. The device operates as a standalone unit with its own display and storage, making it suitable for both home users preserving family memories and professionals needing to archive film collections. With compatibility across Windows and Mac operating systems and multiple language support, it offers broad accessibility for users with diverse technical backgrounds.

Technical Specifications and Performance

The scanner incorporates a 1/2.33-inch CMOS sensor capable of capturing images at 14.0 megapixels natively, with interpolation supporting up to 22 megapixels for enhanced detail. This sensor size and resolution combination allows for clear digital reproduction of film images across the supported formats. The device maintains consistent image quality through automatic exposure control with manual adjustment capabilities from -2.0 EV to +2.0 EV, giving users control over image brightness when needed. Automatic white balance ensures colour accuracy across different lighting conditions present in original film sources.

Image Processing and File Management

The scanner processes captured images into JPEG format, balancing file size with image quality for practical storage and sharing. The 128MB built-in memory provides immediate storage capacity, while SD card support up to 32GB allows for extensive archiving of converted images. This storage flexibility means users can work on multiple film rolls without constant computer connection. The device's USB 2.0 interface enables efficient transfer of scanned images to computers when needed, functioning as both a scanner and a mass storage device for simplified workflow.

Display and Preview Functions

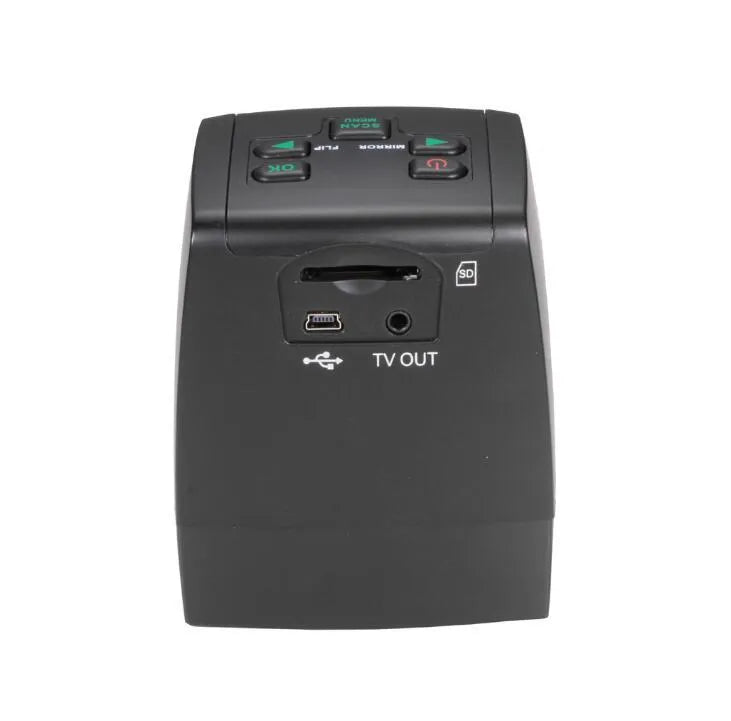

The integrated 2.4 inch colour TFT LCD display allows users to preview scanned images directly on the device, eliminating the need for immediate computer connection to check scan quality. This feature is particularly useful when scanning multiple film frames, as it enables quick verification before proceeding. The display shows both colour and monochrome images accurately, supporting the device's capability to handle black and white film alongside colour formats. For larger viewing or sharing, the TV-OUT functionality with NTSC/PAL support connects the scanner directly to television displays.

Supported Film Formats and Applications

The scanner accepts a range of film formats commonly found in personal and archival collections, from standard 135 film to less common formats like 126KPK and 110 film. This compatibility makes it suitable for converting diverse film collections accumulated over decades of photography. The inclusion of Super8 film support addresses the needs of users with historical motion picture film, while slide film compatibility covers another common archival requirement. By handling multiple formats in one device, it reduces the need for specialised equipment for each film type.

135 and 126KPK Film Conversion

For 135 film (36x24mm), the scanner provides full-frame coverage appropriate for standard 35mm film cartridges commonly used in consumer photography from the 1960s onward. The 126KPK film format (27x27mm), popular in instant cameras of the 1970s, receives specific support with appropriately sized scanning parameters. This dual format capability addresses two of the most common film types found in personal collections, making the device practical for generational photo archiving projects where both formats may be present.

110 Film and Specialised Formats

The device accommodates 110 film (17x13mm), a cartridge-based format popular in compact cameras during the 1970s and 1980s. This support ensures that smaller format films receive appropriate scanning parameters for optimal digital conversion. Super8 film (4.01x5.79mm) compatibility addresses motion picture film conversion needs, allowing frame-by-frame digitisation of home movies. Monochrome film handling preserves the tonal range of black and white photography, while slide film conversion maintains the colour saturation and detail of original slide transparencies.

Practical Operation and System Compatibility

Operating the scanner requires minimal technical knowledge, with automatic functions handling most adjustment needs. The device connects to computers via USB 2.0 for both power and data transfer when using the USB port option, or through a separate DC 5V adapter for standalone operation. This dual power option provides flexibility depending on whether the user needs immediate computer connection or prefers to scan independently before transferring files. The compact dimensions of 87mm × 86.5mm × 102.5mm and 250g weight make the device portable for use in different locations.

Computer System Requirements

The scanner supports Windows XP, Vista, Windows 7, 8, and Mac OS 10.7.3 and above, covering most commonly used operating systems from the past two decades. This broad compatibility ensures users can utilise the device with their existing computer setups without requiring system upgrades. Language support includes Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, and Japanese, making the interface accessible to international users. The combination of system and language support maximises the device's usability across different regions and technical environments.

Workflow Integration

The device functions both as a standalone scanner with internal storage and as a USB mass storage device for computer connection, allowing flexible workflow integration. Users can choose to scan film directly to the device's memory or SD card for later transfer, or connect to a computer for immediate file management. This flexibility accommodates different working preferences and situations, from on-location scanning without computer access to organised home archiving setups. The inclusion of both automatic and manual exposure controls provides appropriate options for users with varying technical expertise.
