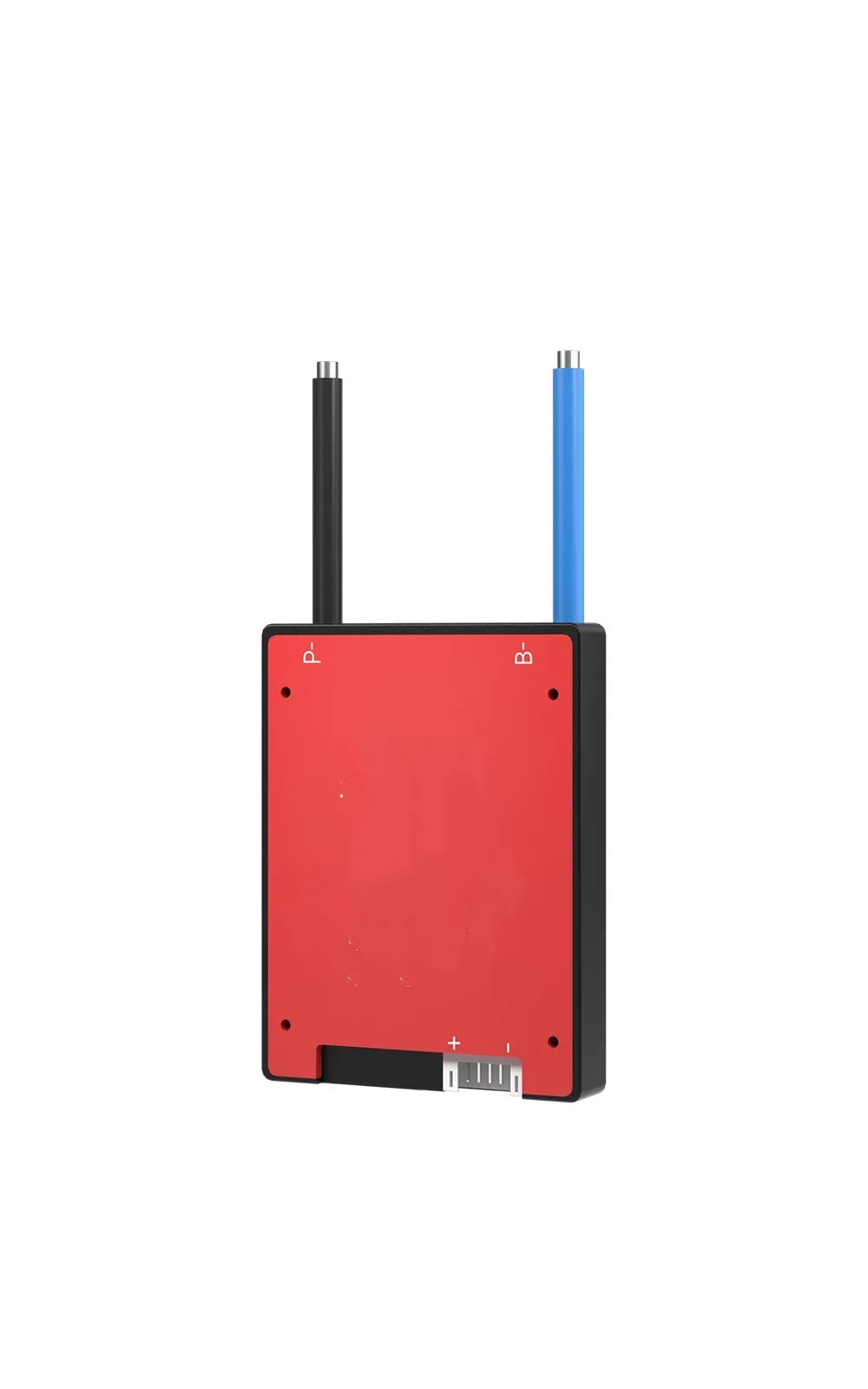

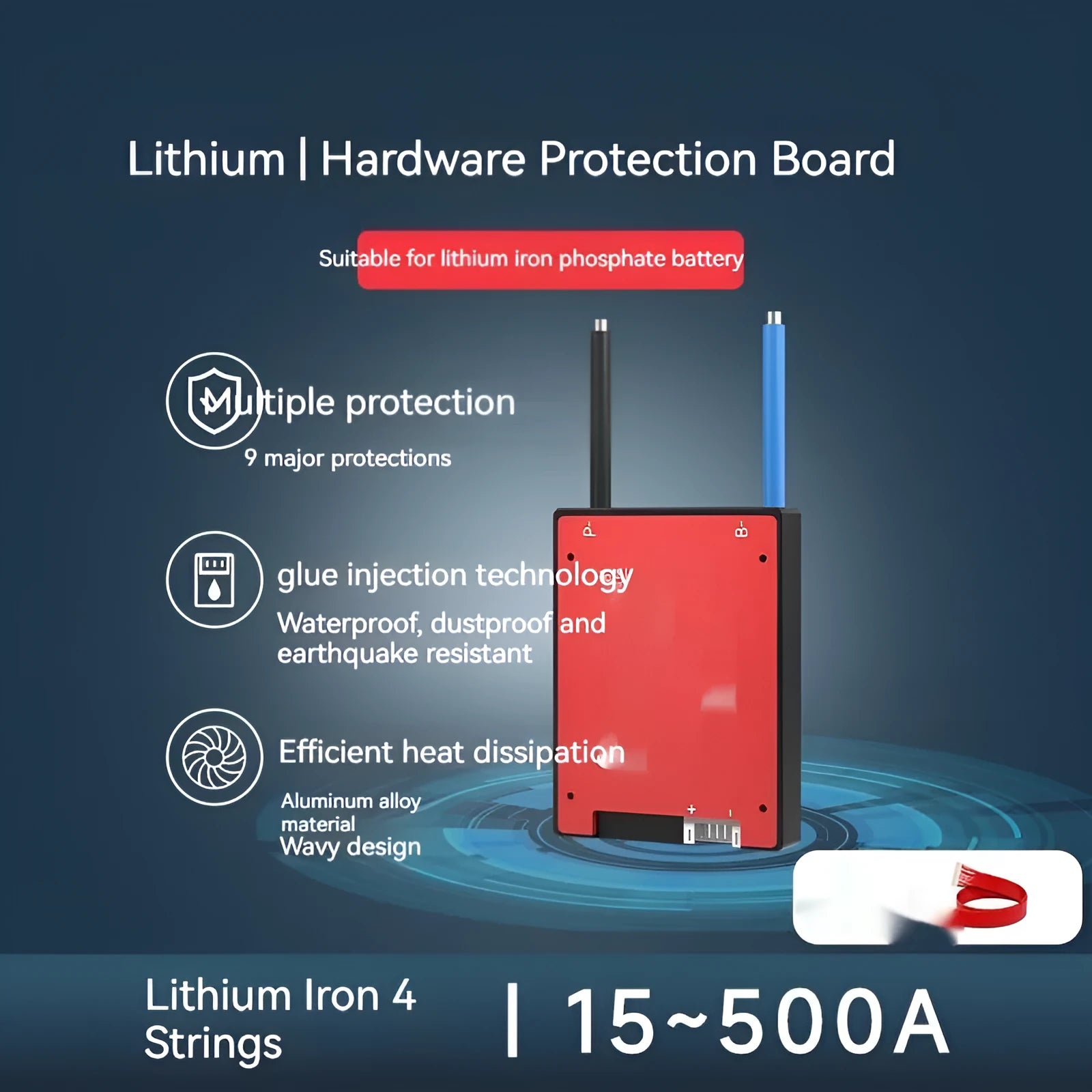

Dali 4S Lithium Iron Phosphate Battery Protection Board with Balance Function and Current Options up to 500A

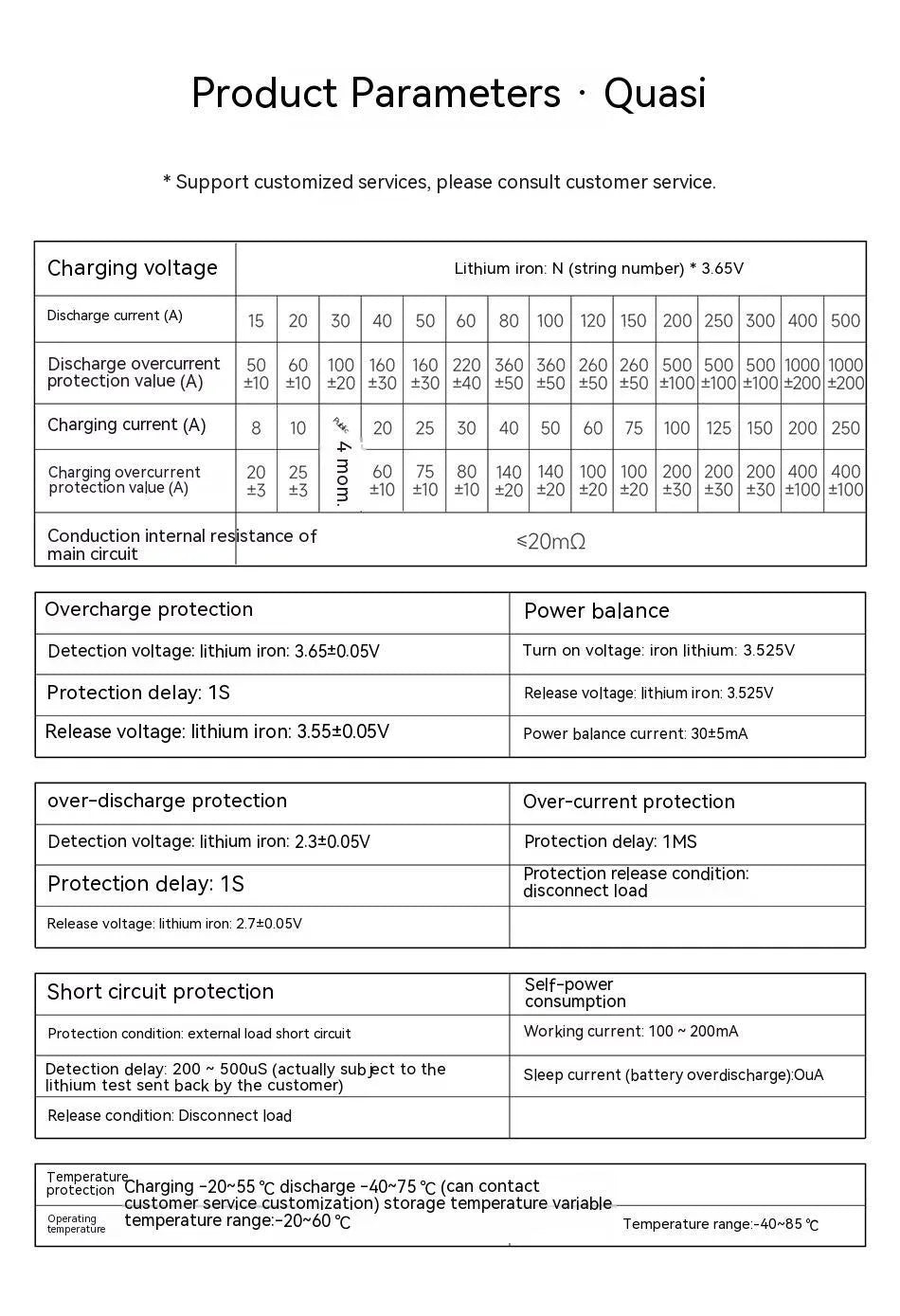

This Dali Battery Management System (BMS) is engineered for 4-cell series (4S) Lithium Iron Phosphate (LiFePO4) battery packs, providing a centralised 12V protection and management solution. Its core role is to monitor and safeguard the battery pack against conditions like over-charge, over-discharge, over-current, and short circuits, which are critical for longevity and safety. The product distinguishes itself with a wide array of current rating options, from 15A for smaller applications up to 500A for high-power demands, and a same-port design that consolidates charge and discharge paths to simplify installation. Available variants also include an integrated balance function to maintain cell uniformity and, for the higher-current models, a built-in cooling fan to aid thermal stability during sustained operation.

Features and Construction

The Dali BMS is defined by its application-specific design for LiFePO4 chemistry and its flexible model range. The construction is centred on providing reliable circuit protection and cell balancing for 12V systems.

Material and Build

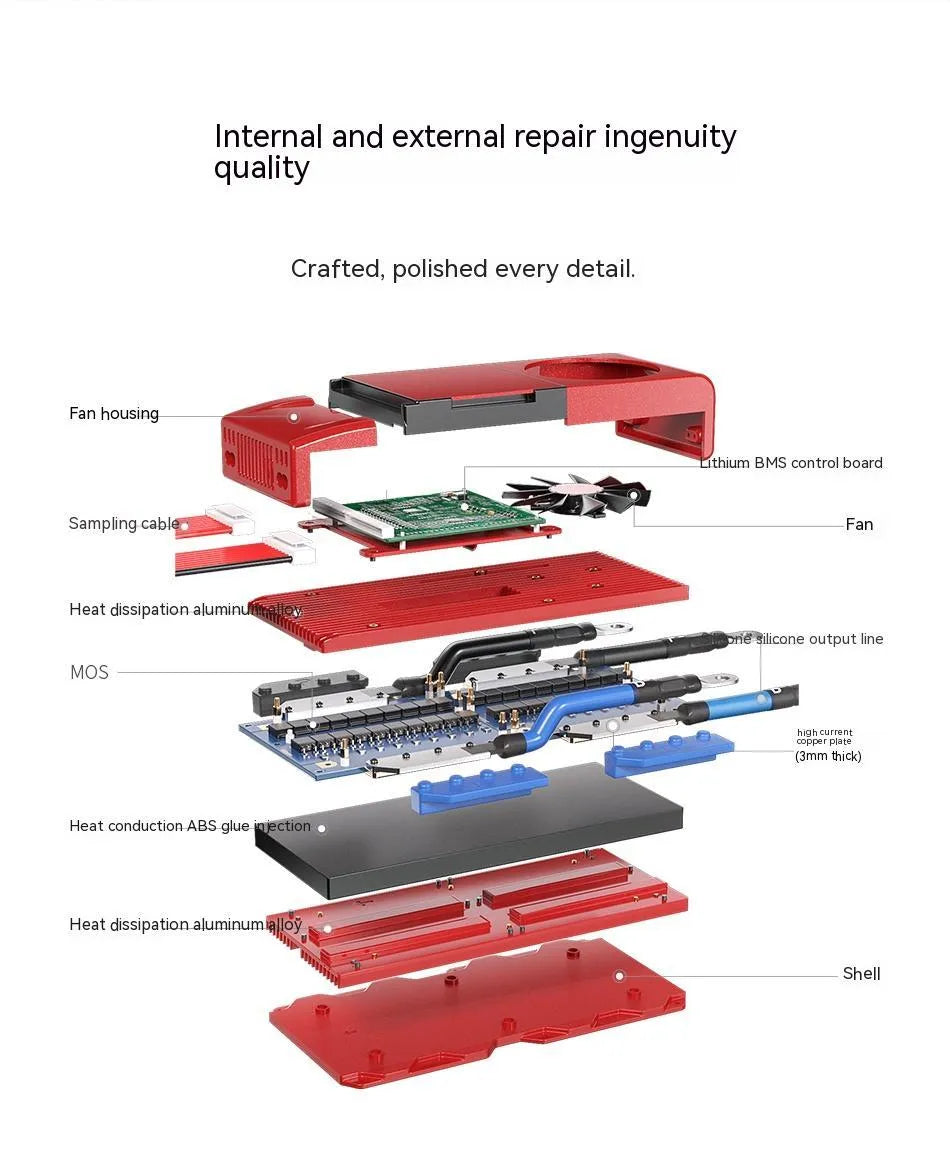

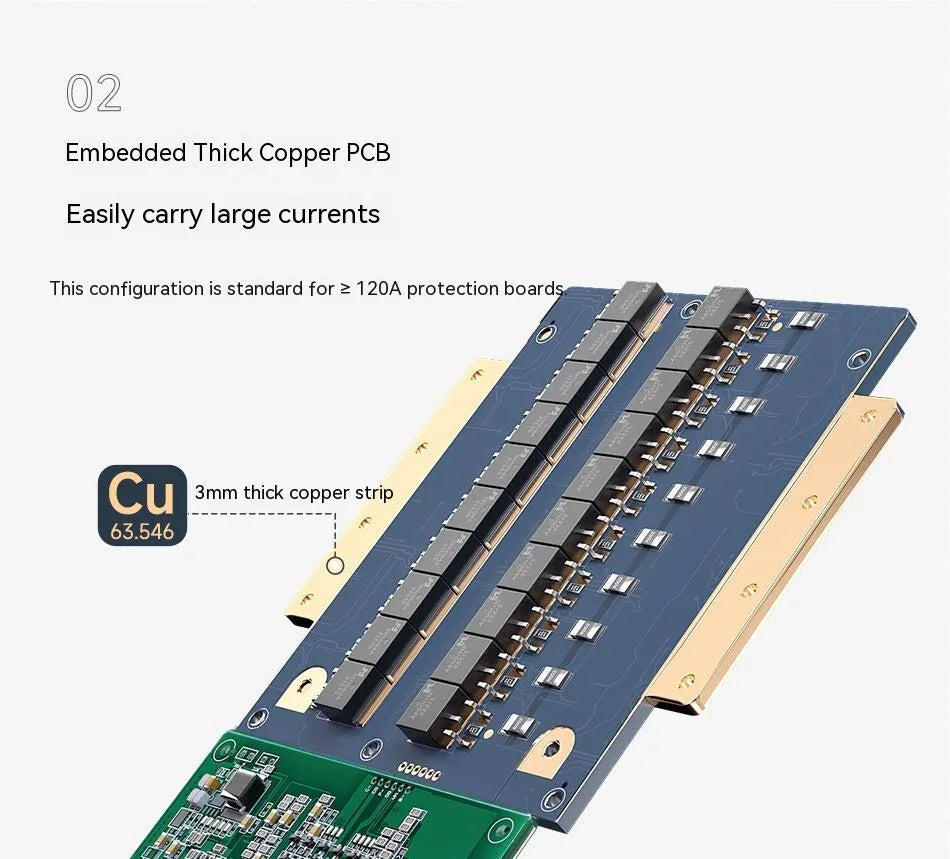

As a printed circuit board (PCB) based electronic module, the build incorporates the necessary MOSFETs, sensing resistors, balance resistors, and control ICs required for battery management. The source text highlights the inclusion of a cooling fan on specified higher-amperage models (80A and above), indicating a focus on managing heat generation under load to maintain component reliability and consistent performance.

Size and Practical Fit

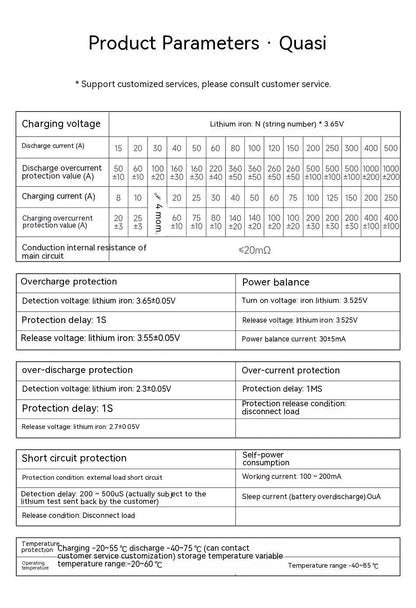

The physical dimensions are not detailed in the provided source, which is typical for BMS units where specifications focus on electrical ratings. The key practical fit considerations are electrical: ensuring the selected model's current rating (15A, 20A, 30A, 40A, 50A, 60A, 80A, 100A, 120A, 150A, 200A, 250A, 300A, 400A, or 500A) is appropriately matched to the battery pack's capacity and the application's maximum discharge current to avoid triggering over-current protection during normal use.

Uses and Placement

This protection board is intended for integration into bespoke or custom-built 12V DC power systems using 4-cell LiFePO4 batteries. Its placement is within the battery enclosure or in a protected location nearby.

Event or Professional Use

In professional, commercial, or high-duty scenarios like solar energy storage, electric vehicles, marine applications, or portable power stations, the higher-current models (100A and above, particularly those with fans) are relevant. They provide the necessary protection for systems with substantial energy draw, where system failure or battery damage carries higher cost or safety implications.

Everyday Home Use

For DIY electronics projects, home backup power, recreational vehicle (RV) upgrades, or small-scale solar setups, the lower to mid-range current models (15A to 80A) offer a suitable level of protection. The same-port design is particularly beneficial here, reducing wiring complexity for enthusiasts and ensuring a straightforward addition to a battery pack build.

Benefits and Buying Value

The value of this BMS lies in its targeted specification for LiFePO4 batteries, its model range, and the practical design features that aid installation and operation.

Reuse and Low Maintenance

By actively protecting against harmful operating conditions, the BMS contributes to extending the functional lifespan of the often costly LiFePO4 battery cells it manages. The balance function works passively during charging to correct minor cell voltage differences, promoting pack longevity and maintaining usable capacity over many cycles with minimal user intervention.

Why Choose This Product

Choosing this Dali BMS is based on a clear match between its electrical specifications and your project needs. The wide spread of current ratings allows for precise selection without overpaying for excessive capacity. The availability of models with an integrated cooling fan provides a ready solution for applications expecting high continuous loads, removing the need for a separate thermal management component. The same-port design is a practical differentiator that saves time and potential wiring errors during setup.
