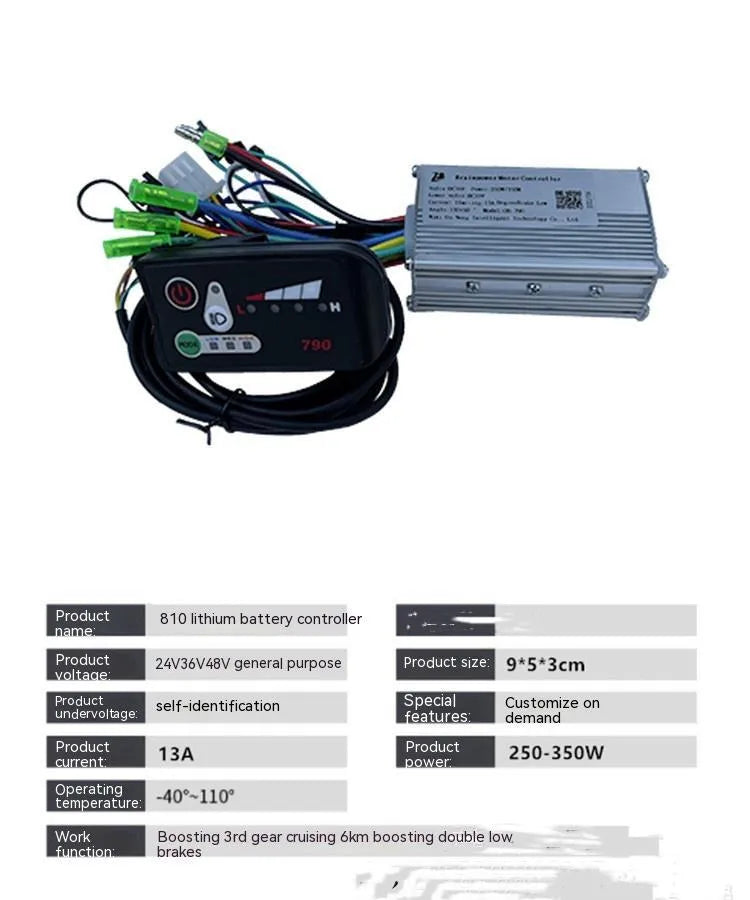

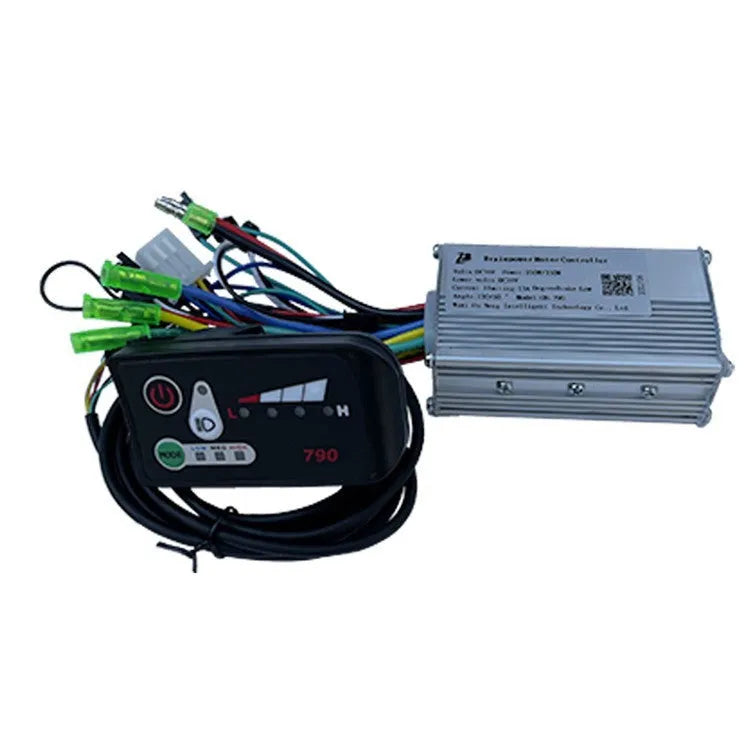

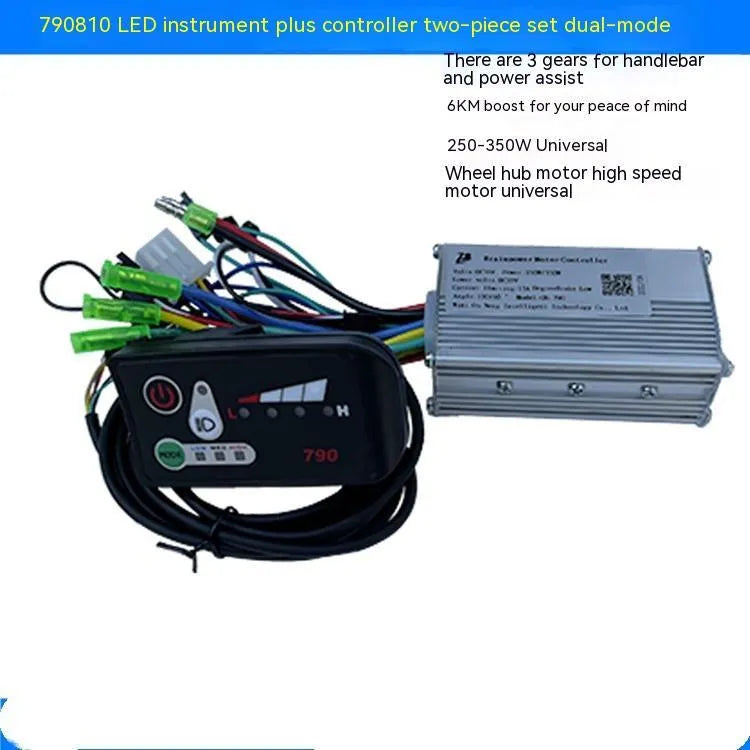

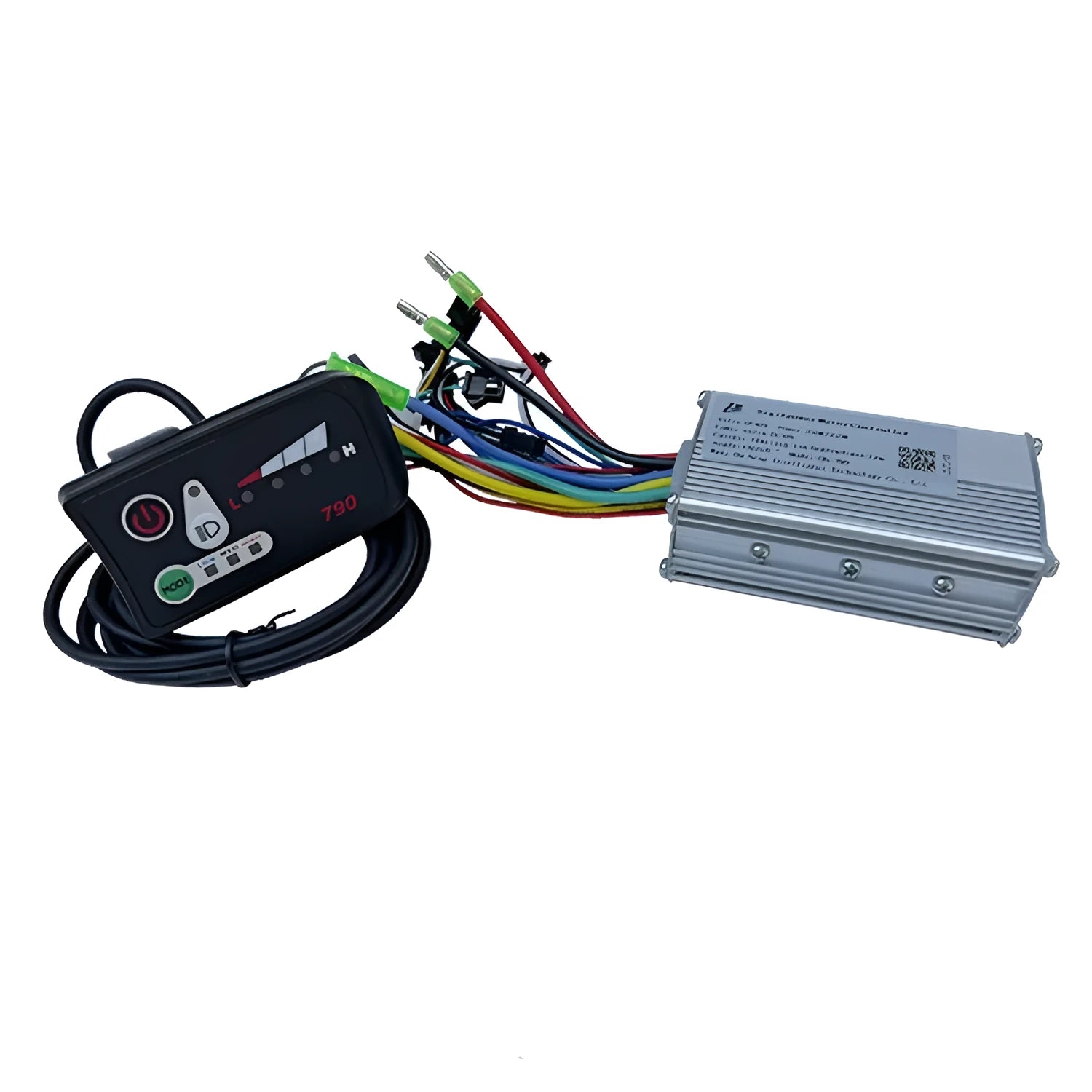

790 Mignon Maimai Controller: 24V-48V 250-350W Motor Control for Electric Bicycles and Scooters

This 790 Mignon Maimai motor controller serves as a core power management component for personal electric vehicles, specifically designed for electric bicycles and scooters. Operating across a versatile voltage range from 24V to 48V, it delivers a rated power output between 250 and 350 watts, making it suitable for various mid-power e-bike systems. The controller's compatibility extends to multiple battery chemistries and motor types, offering a replacement or upgrade solution for existing electric vehicle setups. Its 6-tube construction is engineered to handle the switching demands of brushless motor control within its specified parameters.

Features and Construction

The controller's primary function is to regulate power from the battery to the motor, enabling speed control and providing essential protection features. Its design focuses on compatibility and configurability for different electric vehicle setups.

Material and Build

The controller is built with standard electronic components for motor control, centred around its 6 power tubes. These tubes manage the high-current switching required to drive brushless motors. The construction is tailored for the thermal and electrical demands of a 250-350W system, housed within a compact casing that protects the internal circuitry.

Size and Practical Fit

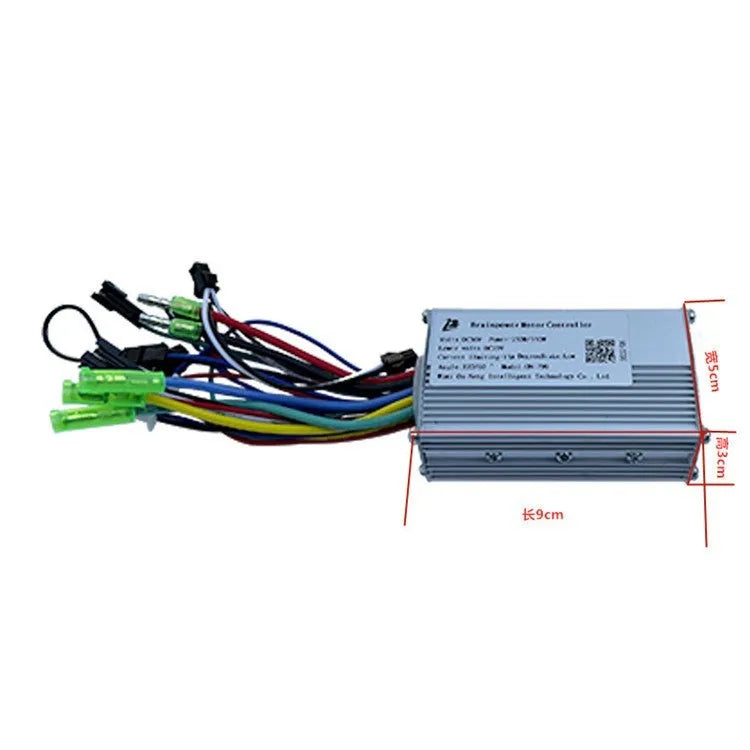

With external dimensions of 9 cm in length, 5 cm in width, and 3 cm in height, the controller has a compact form factor. This size allows for installation in the often limited spaces available on electric bicycle frames or within scooter deck compartments. The small footprint makes it a viable replacement part where space is a constraint.

Uses and Placement

This controller is intended for use in electric personal transportation, primarily as a component within a complete drive system. Its application is defined by its electrical specifications and compatibility list.

Event or Professional Use

For maintenance or repair scenarios, this controller serves as a direct replacement part for compatible electric bicycles and scooters that originally used a 790 Mignon Maimai or similar controller. It can be used by vehicle repair shops or experienced individuals to restore functionality to a vehicle with a faulty control unit, provided the voltage and power ratings match.

Everyday Home Use

For the end-user, this controller is part of the vehicle's system that enables daily commuting or recreational riding. It translates throttle input into smooth motor acceleration and manages battery power consumption across its operating range. The configurable undervoltage protection helps maintain battery health during regular use.

Benefits and Buying Value

The value of this controller lies in its specified compatibility and the practical function it provides within an electric vehicle system. It is a component focused on performance within its rated parameters.

Reuse and Low Maintenance

As a replacement part, its primary benefit is restoring a vehicle to working order, extending the usable life of the e-bike or scooter. The controller itself, being a solid-state electronic device, requires no routine maintenance beyond ensuring clean, secure connections and adequate ventilation. Its protection features are designed to safeguard both the battery and motor during operation.

Why Choose This Product

This controller is chosen for its match to specific voltage (24V-48V) and power (250W-350W) requirements. The key decision factor is compatibility with the existing motor and battery system. The ability to work with various battery types—lead-acid, LiFePO4, and ternary lithium—adds versatility for users who may upgrade their battery pack. The adjustable undervoltage protection allows for fine-tuning based on the specific battery's discharge characteristics.
