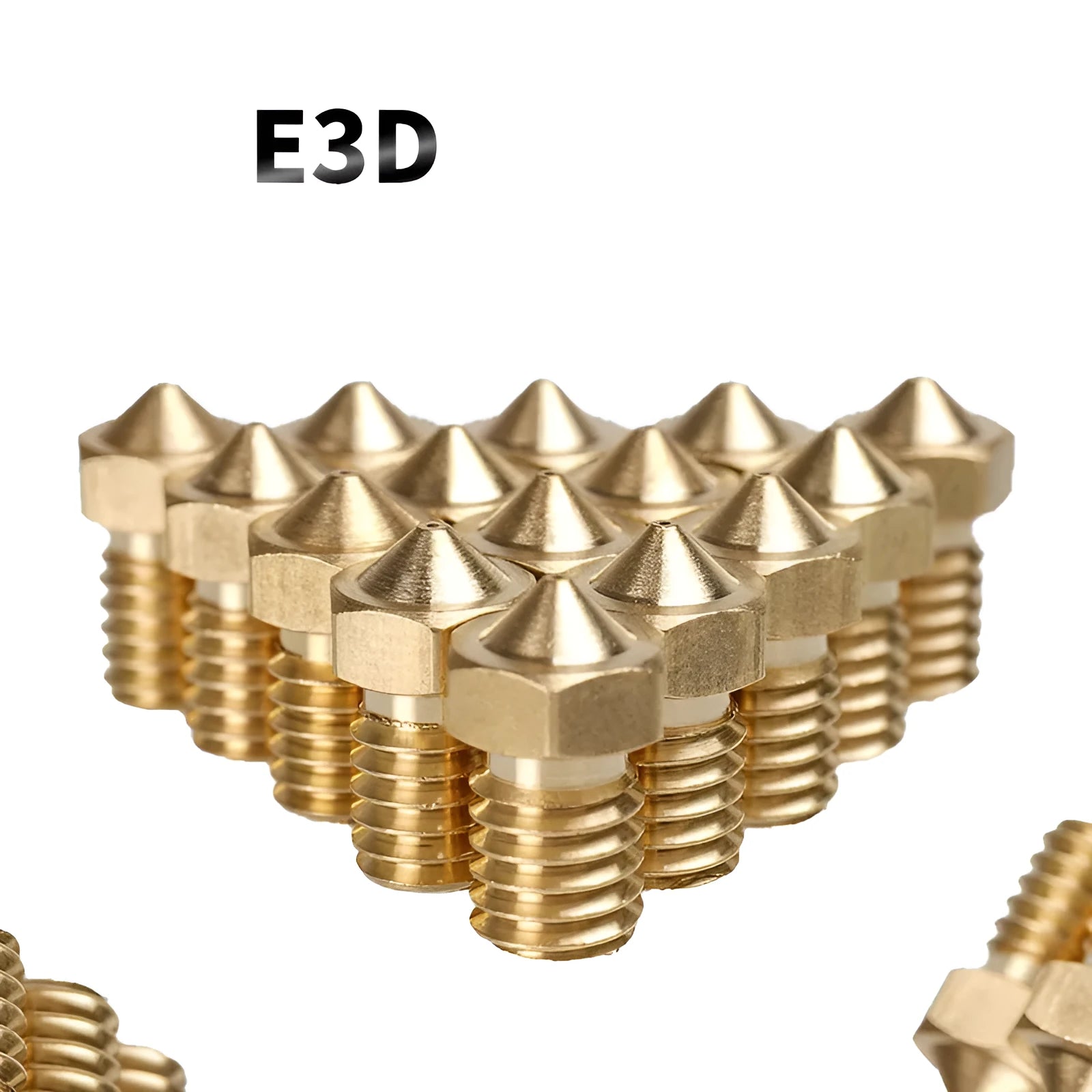

E3D Style Brass 3D Printer Nozzle: M6 Thread for Precise Filament Control with Multiple Aperture Sizes

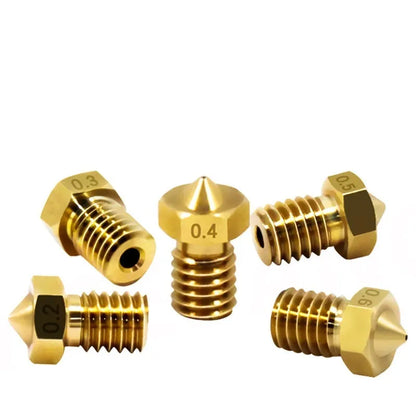

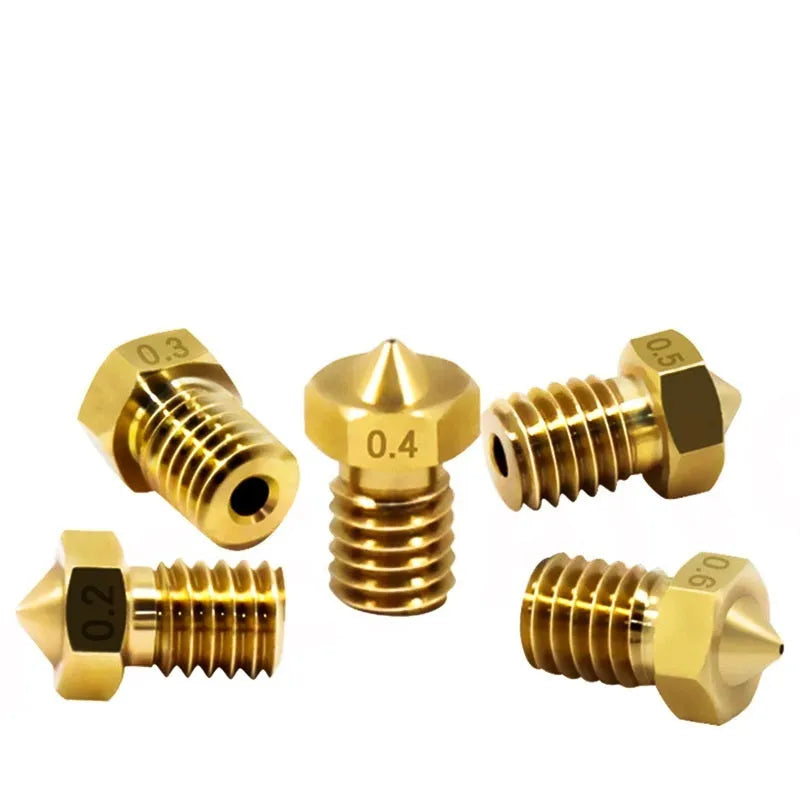

This brass nozzle is a key component for managing material flow in FDM 3D printing. Designed with an M6 threaded base, it is built to integrate with compatible hot ends. The nozzle's core purpose is to deliver controlled extrusion, facilitated by a selection of precise outlet apertures ranging from a fine 0.2mm to a broader 1.0mm. It supports both 1.75mm and 3.0mm diameter filaments, with corresponding wire feed apertures of 2mm and 3.2mm. The 12.5mm by 7mm brass body is engineered for thermal efficiency, while its internal and external construction focuses on promoting reliable, consistent prints by addressing common extrusion issues.

Features and Construction

The design of this nozzle focuses on practical performance through its material choice and specific construction details. Each aspect is geared towards improving print reliability and user control over the extrusion process.

Material and Build

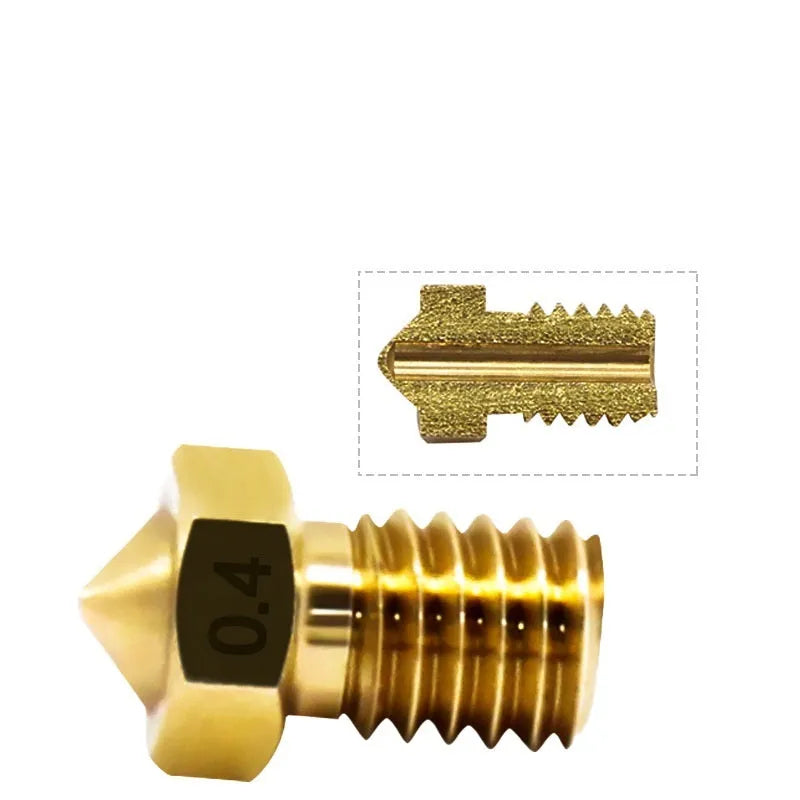

The nozzle is manufactured from brass, a material frequently selected for 3D printer nozzles due to its favourable thermal properties. The construction involves fine workmanship, resulting in a smooth inner wall intended to minimise filament drag and the accumulation of material that can lead to clogs. The external joint is designed to be closely attached, with a flat contact surface. This aims to create a secure seal against the heater block, which is a practical measure to help prevent the leakage of molten plastic from the print head during operation.

Size and Practical Fit

With physical dimensions of 12.5mm in length and 7mm in diameter, this nozzle maintains a standard profile. Its compatibility is defined by the M6 threading, which is a common specification for many consumer-grade 3D printer hot ends. This allows for a direct replacement or upgrade for users with printers that utilise this thread size. The design consideration ensures it can be installed using standard tools and procedures familiar to most 3D printing enthusiasts, making it a straightforward component to manage.

Uses and Placement

This nozzle serves a central role in the printing process, with its utility defined by the selected aperture and filament type. Its application spans from detailed prototyping to more robust model creation, depending on the user's configuration.

Event or Professional Use

For users engaged in frequent prototyping or small-batch production, the availability of multiple outlet apertures provides valuable flexibility. A smaller aperture like 0.2mm or 0.3mm is suited for models requiring fine detail and smooth surfaces, often needed for presentation pieces or intricate mechanical parts. The ability to switch nozzles for different jobs allows for optimisation of print speed and detail without needing multiple complete hot end assemblies, which can be a practical advantage in a workshop or maker space environment.

Everyday Home Use

For hobbyists and home users, this nozzle offers a way to troubleshoot and improve print quality. The smooth inner wall and cutting chamfering design are practical features aimed at reducing instances of filament grinding, under-extrusion, and nozzle clogs—common frustrations in home 3D printing. Choosing a 0.4mm aperture provides a versatile balance for general printing, while the option to use larger apertures like 0.8mm or 1.0mm can significantly speed up the printing of large, less detailed items such as containers or simple brackets.

Benefits and Buying Value

The value of this component lies in its design focus on solving specific extrusion problems and providing configurable control, rather than in aesthetic or non-functional claims.

Reuse and Low Maintenance

The brass construction, while subject to wear over time, is a durable material for typical PLA and ABS filaments. The design features that aim to prevent clogging and leaking contribute to longer periods of trouble-free operation between maintenance cycles. When a nozzle does become worn or blocked, its standard M6 thread and common form factor mean it is a simple, single component to replace, keeping printer downtime and more complex repairs to a minimum.

Why Choose This Product

This nozzle provides a direct solution for users seeking to match their hardware precisely to their filament and print requirements. The clear specification of thread size (M6), body dimensions (12.5x7mm), and the explicit list of available outlet and feed apertures allows for an informed purchase decision. It addresses the need for reliable material flow through its stated construction—smooth bore, chamfered design, and flat sealing surface—offering a practical upgrade or replacement part focused on improving print consistency.
