35mm Adjustable Hinge Punch Locator with Hard Alloy Blade for Cabinet Door Installation

Installing cabinet hinges accurately can be a frustrating task, often leading to misaligned doors and unsightly gaps. This hinge punch locator is designed to solve that problem, offering a straightforward solution for positioning 35mm extended arm and middle bend hinges. Its core function is to provide a consistent and precise marking guide, eliminating the need for manual measurements and reducing the potential for errors in your woodworking or home improvement projects. By incorporating an adjustable margin selector and a durable marking tool, it aims to streamline the installation process for both DIY enthusiasts and professionals working on cabinets, wardrobes, and fitted furniture.

Features and Construction

The tool's design focuses on practical functionality for hinge installation. It combines a measurement guide with a punching mechanism to transfer settings directly onto your workpiece.

Material and Build

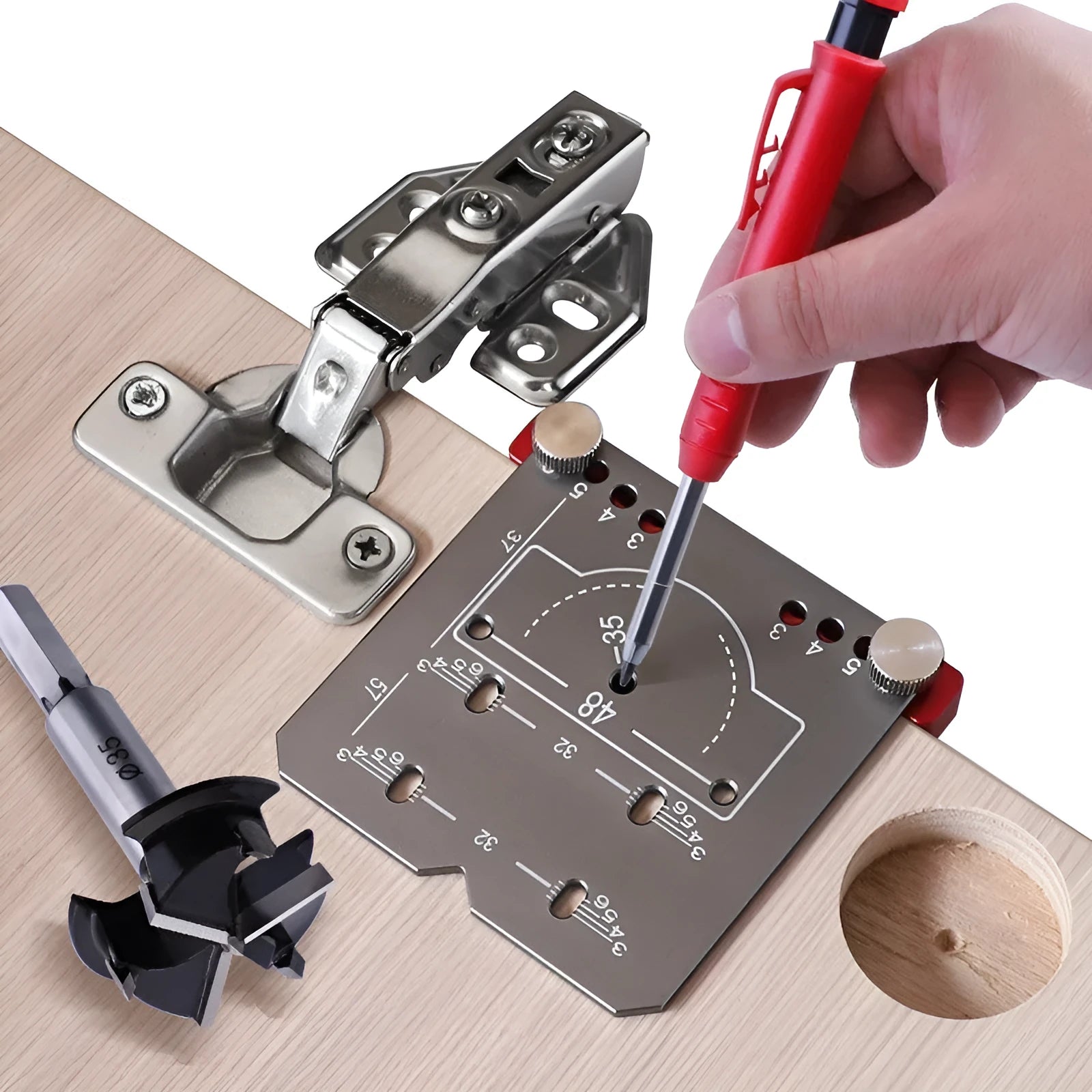

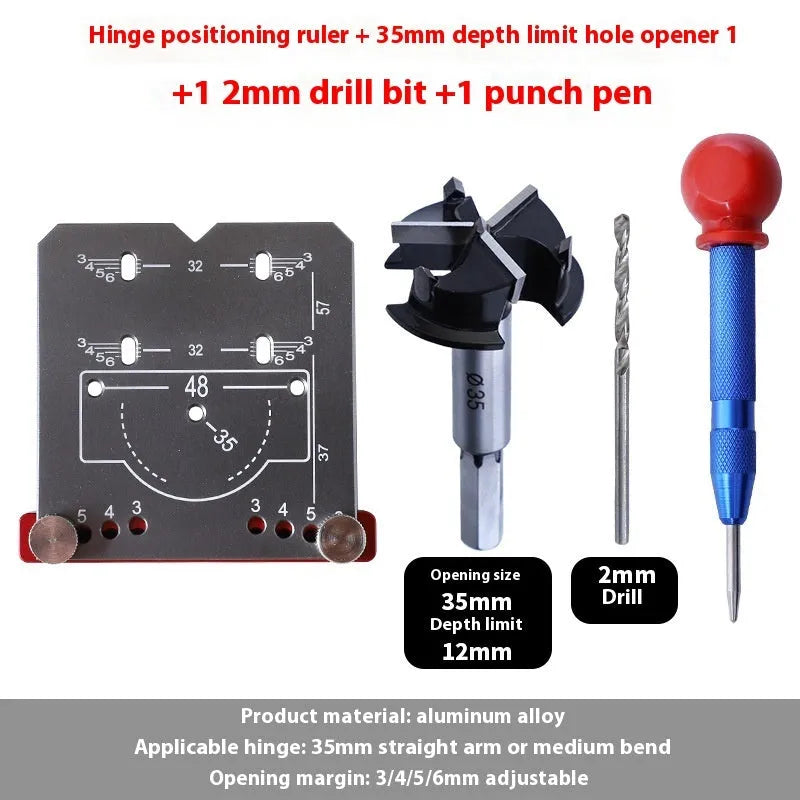

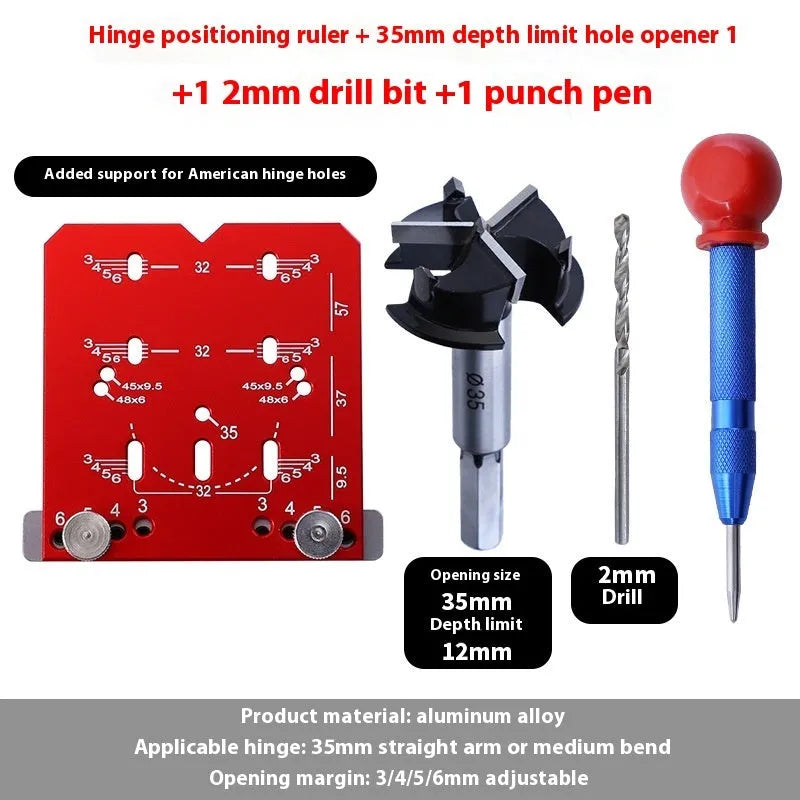

The main body of the hinge positioning ruler is constructed from high-quality aluminium alloy. This material choice provides a solid and stable base for the tool, ensuring it remains flat and true during use, which is essential for accurate marking. The included component is a limit tapper with a blade made from hard alloy. This blade has undergone a high-temperature heat treatment process, which is noted to enhance its hardness, resulting in a sharp and wear-resistant cutting edge capable of creating clear punch marks in wood without dulling quickly.

Size and Practical Fit

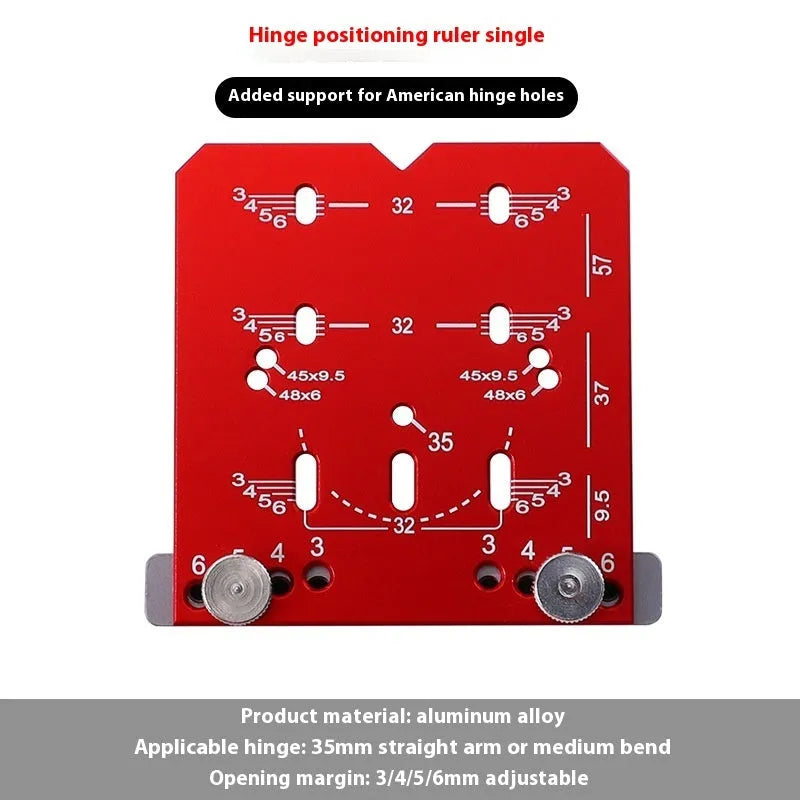

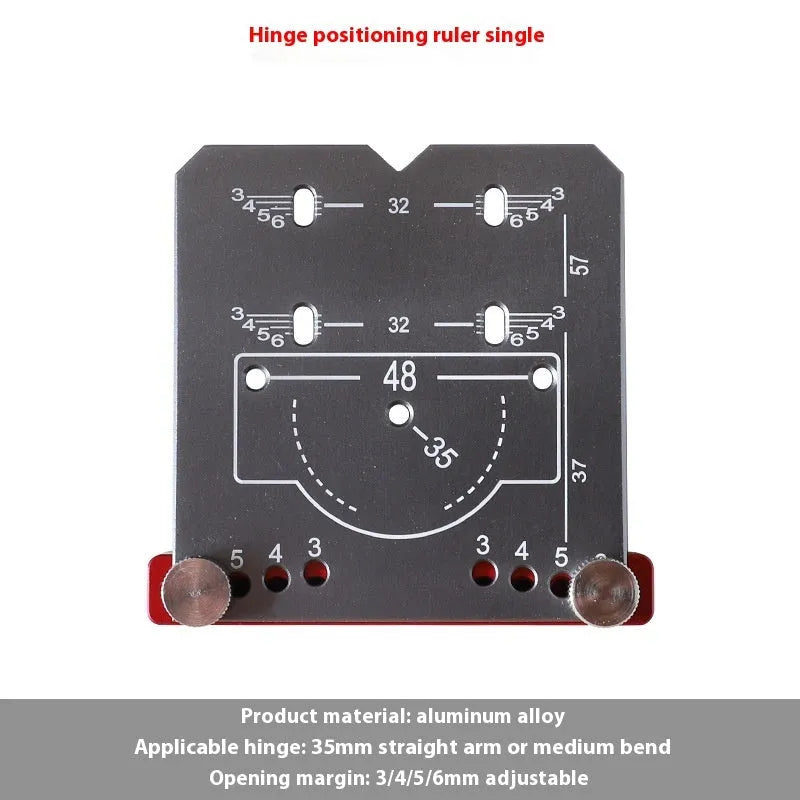

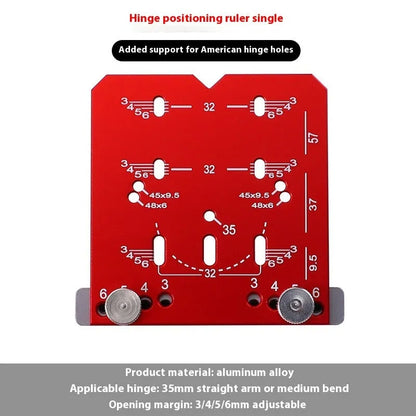

The tool is specifically engineered to work with 35mm extended arm and middle bend hinges, which are common in cabinet and wardrobe construction. Its key adjustable feature is the margin setting, which offers four distinct opening options: 3mm, 4mm, 5mm, and 6mm. This adjustability allows you to match the tool's setting to the specific requirements of your hinge type or desired door inset, providing flexibility across different projects. The tool is designed to be held against the edge of a cabinet door to mark the exact centre point for the hinge cup.

Uses and Placement

This tool is intended for scenarios where precise and repeatable hinge placement is required, primarily in furniture assembly and installation.

Event or Professional Use

For professional kitchen fitters, joiners, or furniture installers, consistency and speed are crucial. This hinge locator allows for rapid, accurate marking of multiple doors with the same margin setting, ensuring every hinge is positioned identically for a uniform final appearance. It reduces the time spent on manual layout and minimises the risk of costly mistakes on client projects, supporting efficient workflow in workshop and on-site environments.

Everyday Home Use

For the DIY enthusiast tackling a kitchen refresh, building built-in wardrobes, or assembling flat-pack furniture, this tool demystifies hinge installation. It provides a simple, guided method to achieve professional-looking results without specialist knowledge. Whether you're fitting new hinges on existing cabinet doors or marking out placements on freshly cut panels for a custom project, it helps ensure doors swing correctly and align neatly with their frames.

Benefits and Buying Value

The value of this tool lies in its ability to improve accuracy and reduce effort in a specific but common woodworking task.

Reuse and Low Maintenance

As a mechanical tool with no electrical components, it is built for repeated use over many projects. The aluminium alloy frame is resistant to bending under normal pressure, and the heat-treated hard alloy blade is designed for wear resistance, maintaining its sharpness. With no complex parts, it requires minimal maintenance—simply storing it in a dry place to prevent corrosion is sufficient to keep it ready for its next use.

Why Choose This Product

This hinge punch locator addresses a clear need for precision in hinge installation. Its primary advantage is the combination of specific compatibility (35mm hinges) with adjustable settings (3-6mm margins), offering more control than fixed templates. The inclusion of a dedicated, hardened punching blade means you have all necessary components in one package. It is a focused tool that aims to perform one job very well, providing a reliable method to achieve consistent, accurate results that might otherwise require multiple separate tools and measurements.
