1.3 Inch 240x240 IPS LCD Full Colour Display: High-Visibility Square Screen with Adjustable Viewing Direction

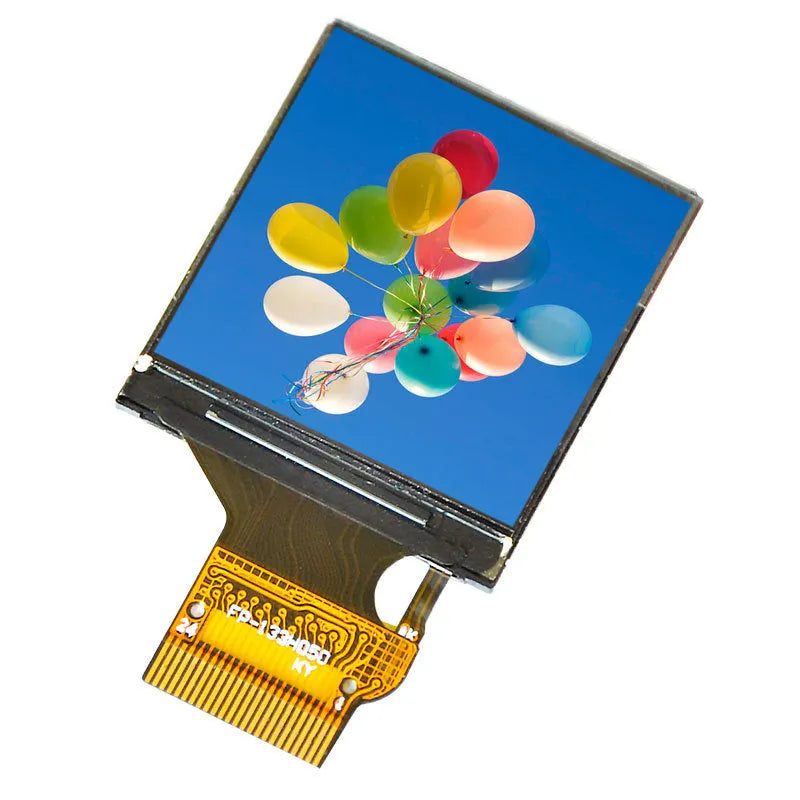

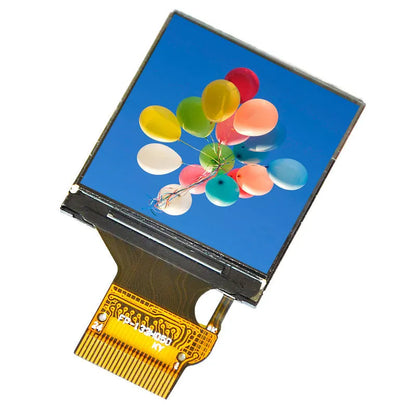

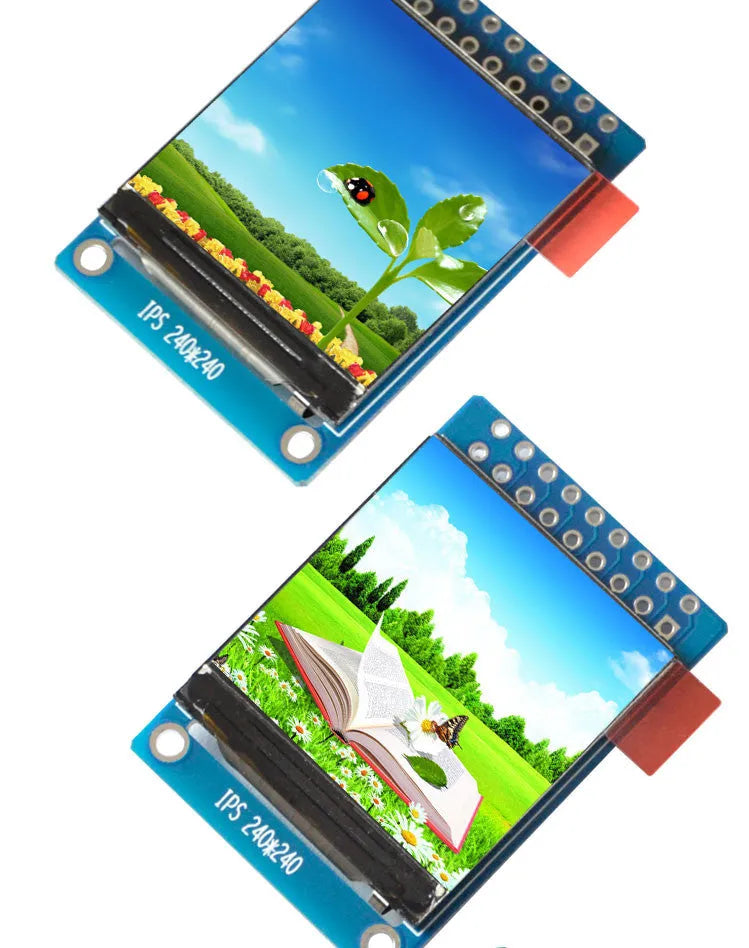

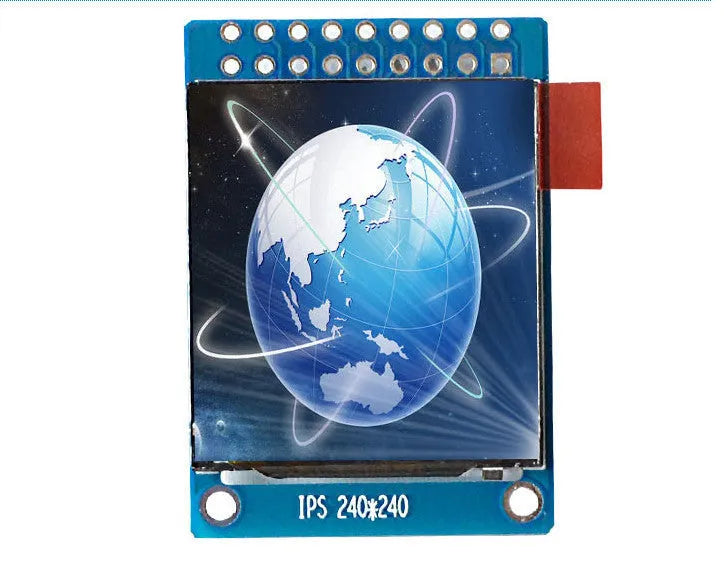

This 1.3-inch IPS LCD display provides a compact visual solution for electronics projects requiring clear, colourful output. With its 240x240 resolution square format and 23.4x23.4mm display area, it delivers sharp imagery that remains visible across wide viewing angles. The IPS technology ensures more vivid colours than standard TFT LCDs, while the adjustable display direction allows for flexible mounting in various project enclosures. Measuring just 27.78x39.22mm physically, it fits into space-constrained applications without sacrificing display quality.

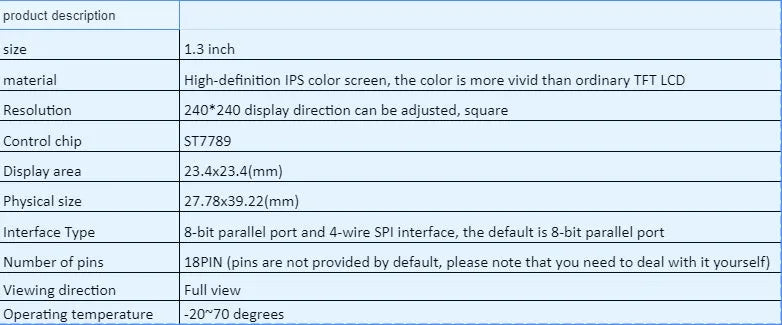

Display Features and Technical Specifications

This section details the specific measurements and technical capabilities that make this display suitable for professional and hobbyist applications alike, from its resolution to interface options.

Screen Dimensions and Resolution

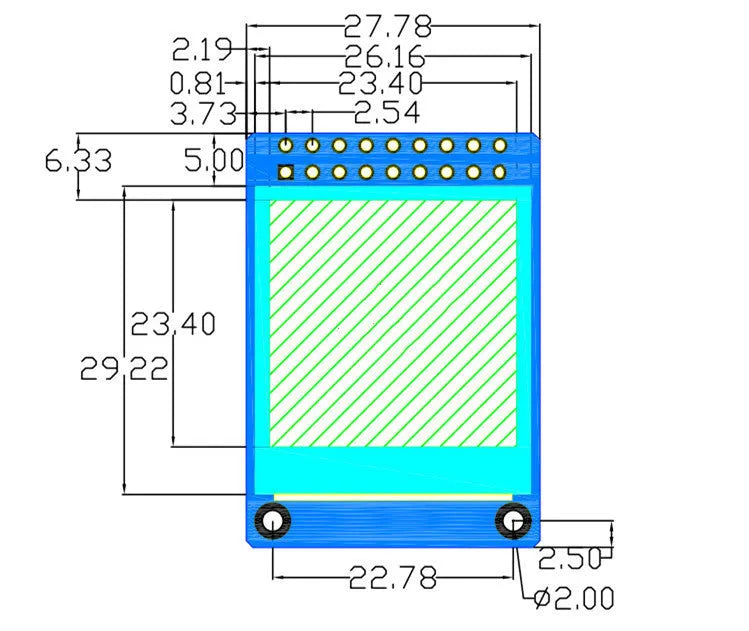

The display features a 1.3-inch diagonal measurement with a square 240x240 pixel resolution. The active display area measures 23.4x23.4mm within a physical footprint of 27.78x39.22mm, providing a compact solution that doesn't compromise on visible area. This square format is particularly useful for displaying icons, status indicators, or simplified graphical interfaces in embedded systems where rectangular displays might waste space.

Interface and Connectivity Options

Two interface options are available: an 8-bit parallel port set as default and a 4-wire SPI interface for simpler wiring requirements. The display uses an 18-pin connection scheme, though users must source their own pins as they are not included. This dual-interface approach provides flexibility for different microcontroller platforms and project requirements, allowing developers to choose the most appropriate connection method for their specific application.

Environmental Performance Range

Rated for operation between -20 and 70°C, this display maintains functionality across a wide temperature range suitable for both indoor and protected outdoor applications. The IPS panel technology contributes to consistent performance across this range, with the ST7789 control chip managing display operations reliably. This temperature specification makes it suitable for projects that might experience varying environmental conditions without requiring specialised thermal management.

Practical Applications and Use Cases

From professional instrumentation to hobbyist projects, this display serves multiple purposes where compact visual feedback is required without sacrificing clarity or colour quality.

Professional and Industrial Applications

In professional settings, this display can serve as a status indicator in control panels, providing clear visual feedback in manufacturing environments. The adjustable viewing direction allows installation at various angles while maintaining visibility, useful in equipment where operators view from different positions. The -20 to 70°C operating range supports use in environments with temperature fluctuations, while the dual interface options accommodate different industrial control systems.

Everyday Electronics Projects

For hobbyists and makers, this display adds visual feedback to Arduino, Raspberry Pi, or other microcontroller projects. The vivid IPS colours create more engaging interfaces than monochrome displays, with the square format fitting neatly into custom enclosures. The smooth, clear imagery results from the 240x240 resolution across the 23.4x23.4mm viewing area, providing sufficient detail for showing sensor readings, menu systems, or simple animations in DIY electronics.

Versatile Display Solutions

Beyond standard applications, this display's adjustable viewing direction and square format make it suitable for unconventional mounting positions. It can serve as a secondary display in multi-screen setups, a compact status monitor in portable devices, or a visual interface in wearable technology projects. The 8-bit parallel port offers faster refresh rates for dynamic content, while the SPI option reduces pin requirements for simpler projects, providing adaptability across different complexity levels.

Benefits and Value Considerations

Understanding the practical advantages and long-term value helps determine how this display fits into various projects and applications.

Cost-Effective Visual Solution

Compared to larger displays or touchscreen alternatives, this 1.3-inch IPS LCD provides colour visual feedback at a compact size that reduces enclosure requirements. The dual interface options mean it can work with both simple and complex control systems without additional adapters, while the included ST7789 controller reduces the processing burden on the host microcontroller. This combination of features delivers capable visual output without the expense of more sophisticated display technologies.

Reliability and User Satisfaction

Users benefit from the confidence that comes with the specified -20 to 70°C operating range, knowing the display will function consistently across varying conditions. The adjustable viewing direction provides installation flexibility, reducing constraints on project design. The vivid IPS colours compared to standard TFT displays create more engaging interfaces, while the square format offers efficient use of space in compact projects where every millimetre matters.

Implementation Considerations

When incorporating this display into projects, consider the 18-pin connector requirement and plan for appropriate sourcing. The adjustable display direction allows optimisation for specific viewing angles, while the choice between parallel and SPI interfaces should match your microcontroller's capabilities and available pins. The 23.4x23.4mm display area provides sufficient space for clear information presentation despite the compact 1.3-inch diagonal measurement, making it a practical choice where size constraints exist alongside the need for visual feedback.
